Chapter 2: Jumpers and Connectors

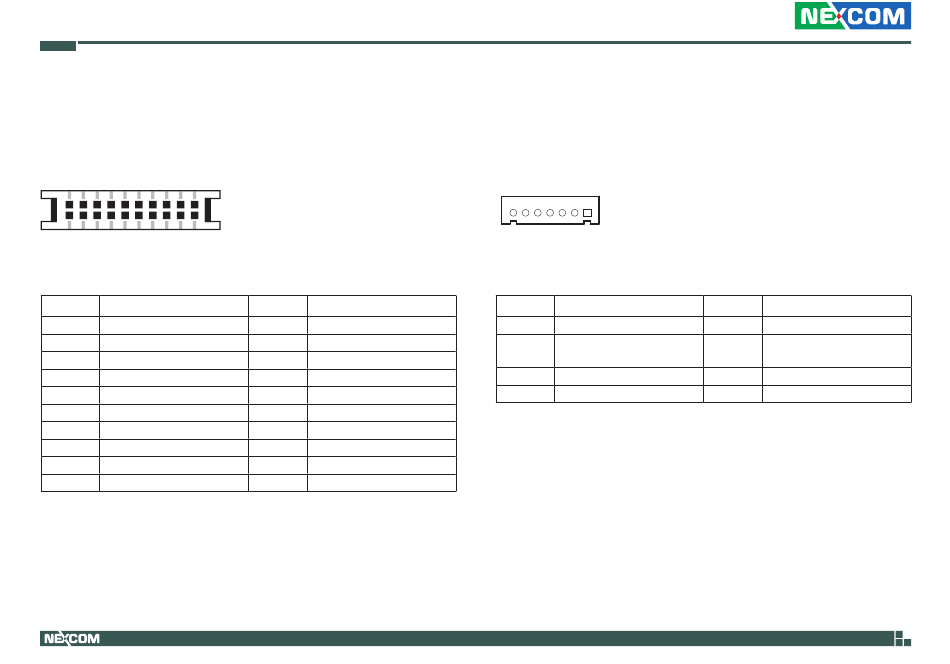

LVDS Connector B

Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: CN6
1 19
2 20
Pin Definition
1 LVDS_DDC_CLK
3 Panel_VDD
5 LVDSB_DATA3
7 LVDSB_DATA#3
9 GND
11 LVDSB_CLK
13 LVDSB_CLK#
15 GND
17 LVDSB_DATA2
19 LVDSB_DATA#2
Copyright © 2014 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LVDS_DDC_DATA
4 LVDSB_DATA0
6 LVDSB_DATA#0
8 Panel_VDD
10 LVDSB_DATA1
12 LVDSB_DATA#1
14 GND
16 Panel Inverter 12V
18 Panel_backlight
20 GND

LVDS Panel Inverter Connector

Connector type: 1x7 JST, 7-pin header, 2.0mm pitch
Connector location: J1
7 1
Pin Definition
1 VCC5
3 +12V
5 GND
7 Panel Backlight Enable
23
Pin Definition
2 +12V
Panel Backlight
4
Brightness Control
6 GND
