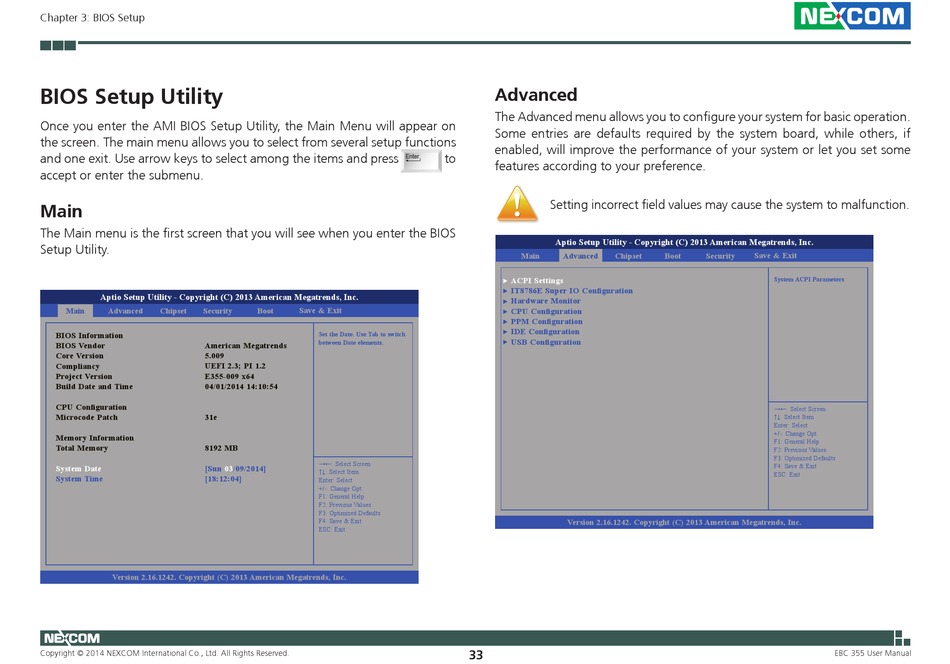

Chapter 3: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on
the screen. The main menu allows you to select from several setup functions
and one exit. Use arrow keys to select among the items and press
accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS
Setup Utility.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Main
Advanced
Chipset
Security
BIOS Information
BIOS Vendor
American Megatrends
Core Version
5.009
Compliancy
UEFI 2.3; PI 1.2
E355-009 x64
Project Version
Build Date and Time
04/01/2014 14:10:54
CPU Configuration
31e
Microcode Patch
Memory Information
Total Memory
8192 MB
System Date
[Sun 03/09/2014]
System Time
[18:12:04]
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Copyright © 2014 NEXCOM International Co., Ltd. All Rights Reserved.
Boot
Save & Exit
Set the Date. Use Tab to switch
between Date elements.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Advanced
The Advanced menu allows you to configure your system for basic operation.
Some entries are defaults required by the system board, while others, if
enabled, will improve the performance of your system or let you set some
to
features according to your preference.
Setting incorrect field values may cause the system to malfunction.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Main
Advanced
Chipset
ACPI Settings
IT8786E Super IO Configuration
Hardware Monitor
CPU Configuration
PPM Configuration
IDE Configuration
USB Configuration
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
33
Boot
Security
Save & Exit
System ACPI Parameters
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
EBC 355 User Manual
