Kit Installation
WARNING: Follow installation instructions provided to securely install the transit anchors to your
wheelchair.
WARNING: Only use high strength fasteners provided by Convaid to attach transit anchors.
WARNING: Transit anchors are to be installed one time only, using the hardware provided. Removal
and reinstallation of transit anchors will weaken the fitting of the hardware.
WARNING: Engage wheel locks before installing transit anchors.
WARNING: For safety reasons, install the anchors one side at a time.
WARNING: For specific maximum transit weight capacity of your wheelchair, please see below:
• RD10: 30 kg
• RD12: 30 kg
• RD14: 45.5 kg
• RD16: 75.0 kg
WARNING: The use of Loctite
result in a failure of the anchor to perform as required in a vehicle accident.
4X
4X
(FRONT)
2X

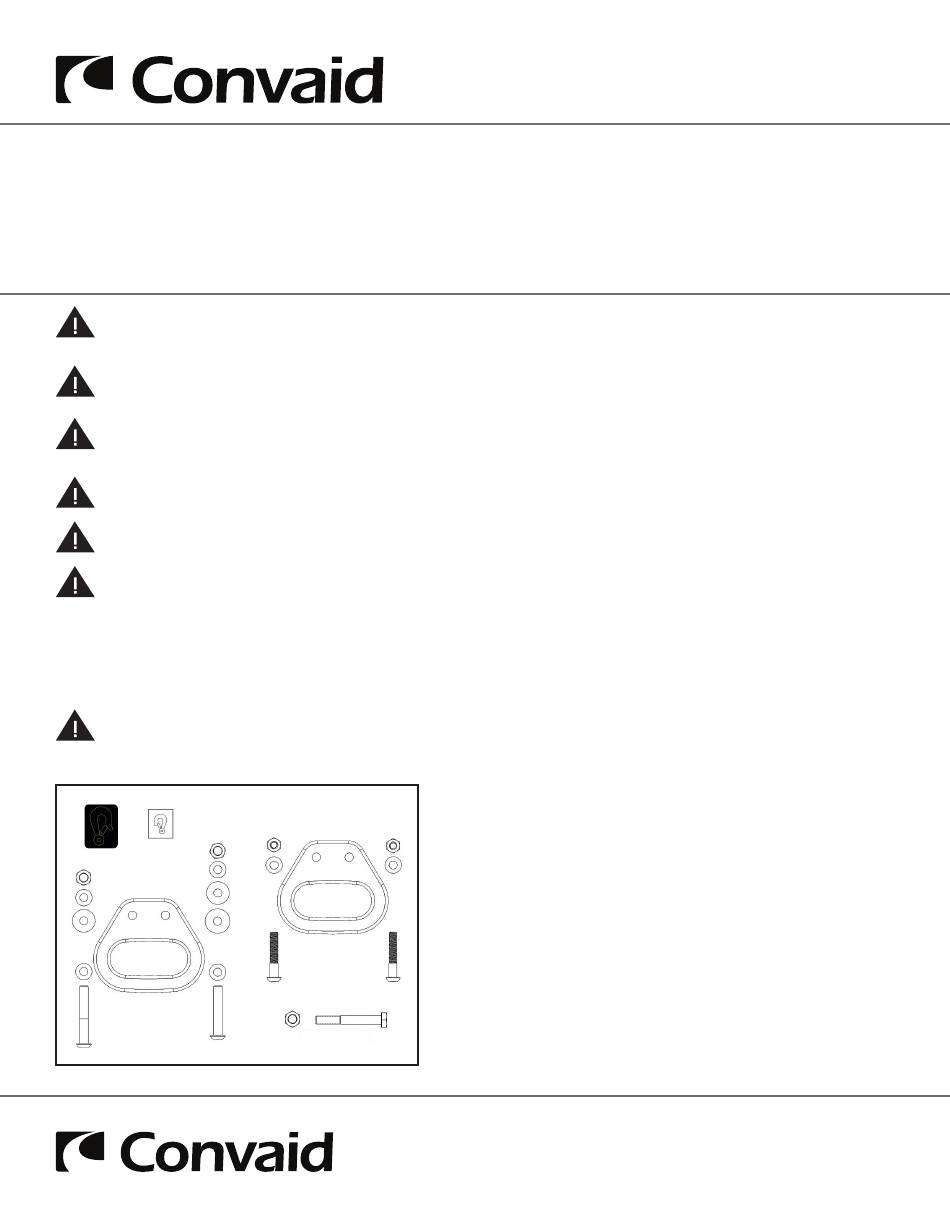

List of items included in the transit kit:
1. 4 Transit Anchors with hardware
2. 4 Transit Anchor Logo Stickers
3. 1 Transit Ready Serial Label Sticker
is required when installing these anchors. Not adding Loctite
®
NOTE:
Order proper transit kit for your specific chair.
(REAR)
2X
2X
2X
LOOSE PARTS
Convaid Products, LLC
2830 California Street
Torrance CA 90503
Tel: 1-844-US-Mobility (844-876-6245)
www.convaid.com

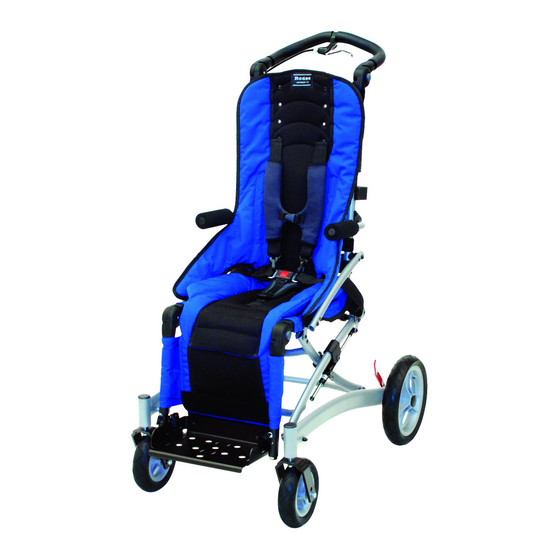

Rodeo
Tools Required:
1. 7/16" Wrench x2
2. 5/32" Allen wrench
3. 10 mm Wrench
4. #4 Allen Wrench
5. Hex Jaw Vice Grip (7-14mm opening)
G10211 1117
