Textron EZGO RXV Shuttle 2+2 Service & Parts Manual page 50

ELECTRICAL
1
Headlight Assembly (Driver Side) includes items 5, 6, 11 - 17
2
Headlight Assembly (Passenger Side) includes items 8, 9, 11 - 17
5
8
14

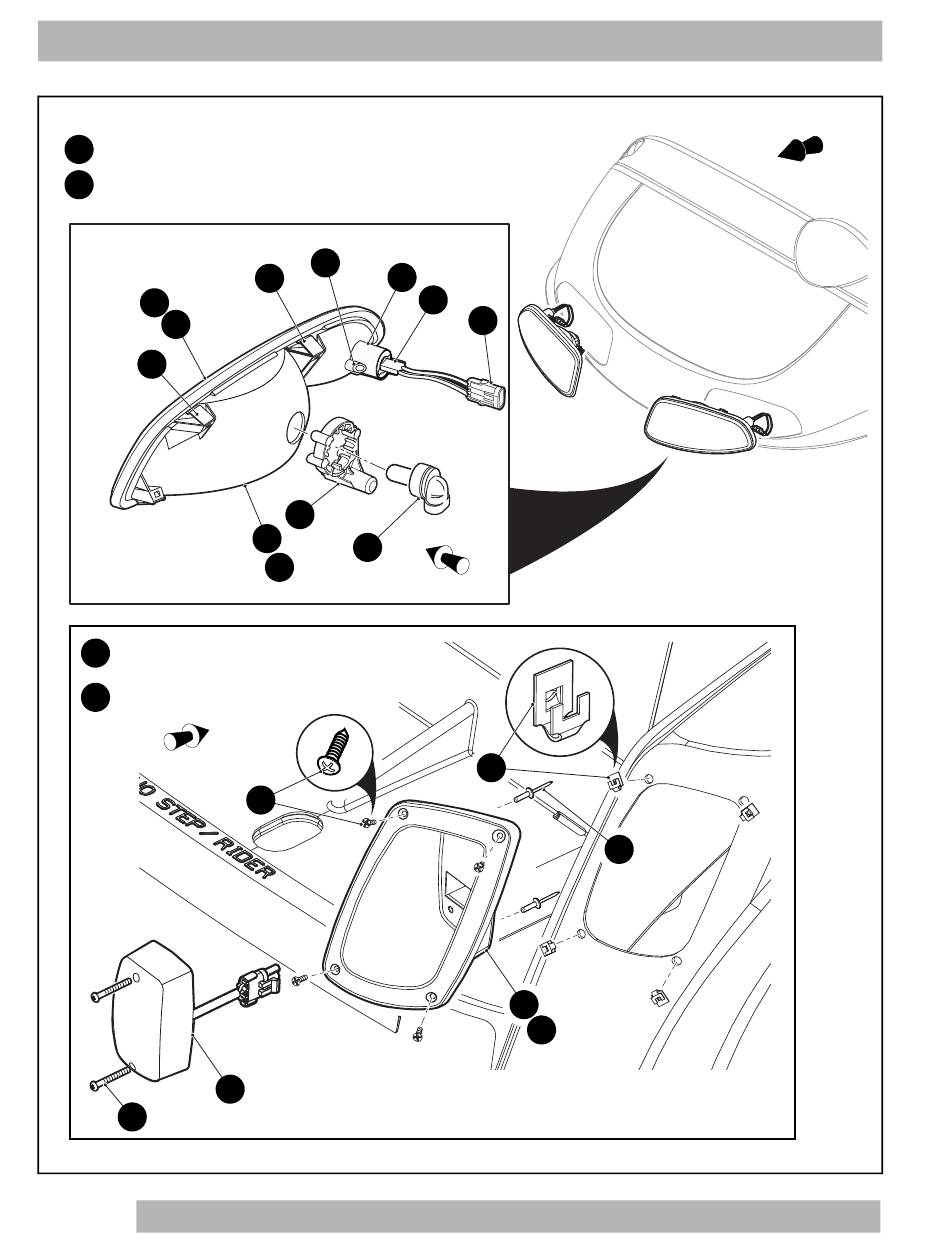

Headlight Installation
Taillight Assembly (Driver Side)
18
includes items 21, 24 - 26
Taillight Assembly (Passenger Side)
19
includes items 22 - 26
Front of Vehicle
25
Page G-1
15
16
14
17
6
11
9
Front of Vehicle
27
24
689390 Service Parts Manual
12
13
28
21
22
Taillight Installation
Front of Vehicle
26
