Textron EZGO TXT FREEDOM Service & Parts Manual
  1. Manuals
  2. Brands
  3. Textron Manuals
  4. Golf Cars
  5. EZGO TXT FREEDOM
  6. Service & parts manual

Textron EZGO TXT FREEDOM Service & Parts Manual

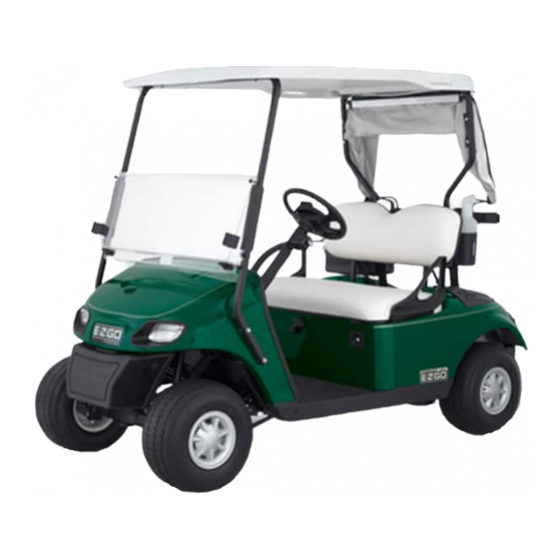

Gasoline efi powered golf car
Hide thumbs Also See for EZGO TXT FREEDOM:
Table of Contents

Advertisement

Quick Links

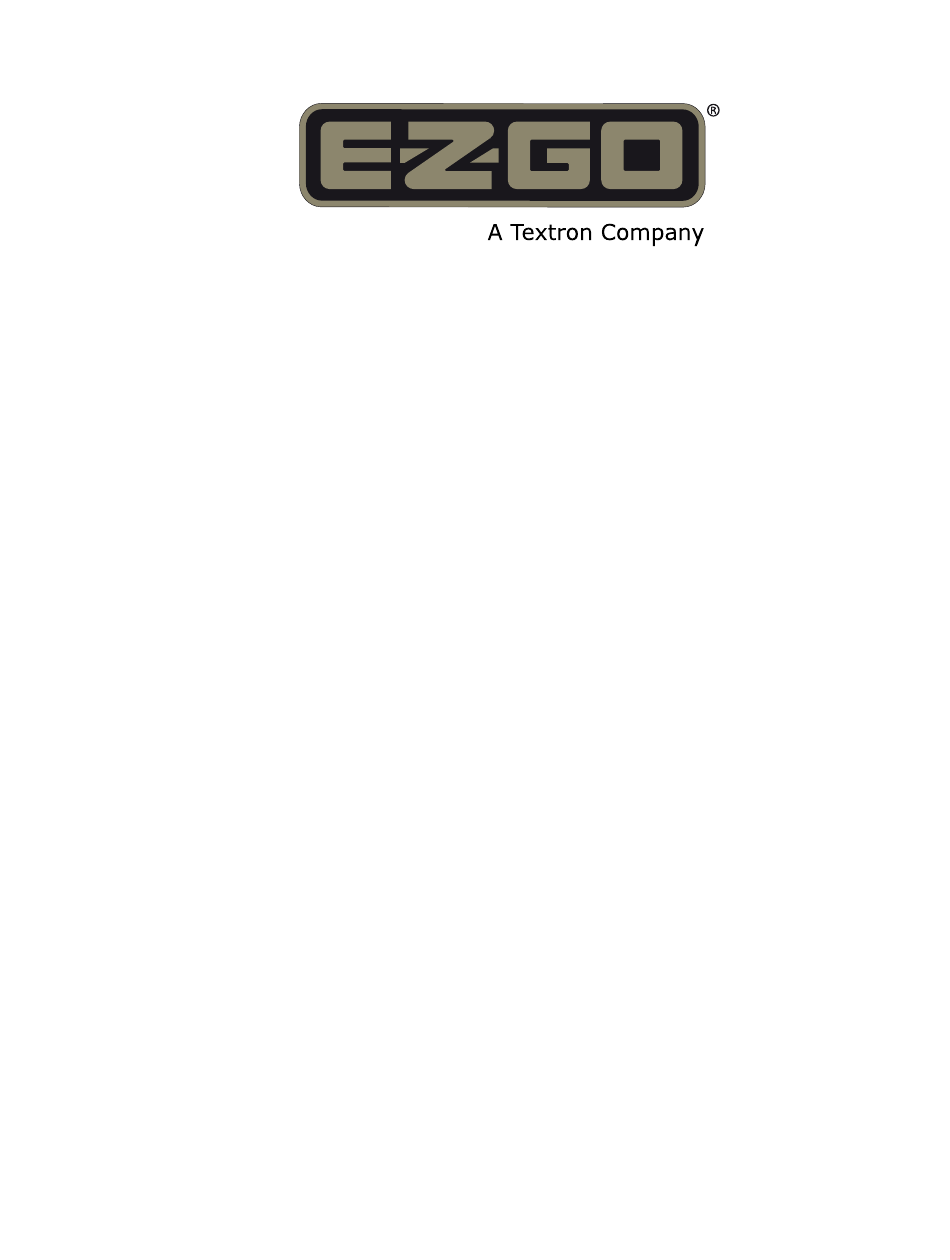

TXT FREEDOM
Service Parts Manual
689394 - D
REVISED SEPTEMBER 2019
ISSUED MARCH 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZGO TXT FREEDOM and is the answer not in the manual?

Questions and answers

Robert Archer
March 22, 2025

where is the solenoid located on 2021 txt freedom

0

Related Manuals for Textron EZGO TXT FREEDOM

Summary of Contents for Textron EZGO TXT FREEDOM

  • Page 1 TXT FREEDOM Service Parts Manual 689394 - D REVISED SEPTEMBER 2019 ISSUED MARCH 2019...
  • Page 3 Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease its stability or increase the speed be- yond the factory specifications. Such modifications can cause serious personal injury or death. Textron Specialized Vehicles prohibits and dis-claims responsibility for any such modifications or any other alteration which would adversely affect the safety of the vehicle.
  • Page 4 GENERAL INFORMATION To obtain a copy of the limited warranty applicable to the vehicle, call or write a local Distributor, authorized Branch or the Warranty Department with vehicle serial number and manufacturer code. The use of non Original Equipment Manufacturer (OEM) approved parts may void the warranty.
  • Page 5 TABLE OF CONTENTS SECTION Page No. HOW TO USE THE SERVICE PARTS MANUAL ..........V ACCELERATOR .
  • Page 6 NOTES Page iv Service Parts Manual Service Parts Manual...
  • Page 7 HOW TO USE THE SERVICE PARTS MANUAL This manual is divided into several sections: • GENERAL INFORMATION • ILLUSTRATED PARTS BREAKDOWN The first section, GENERAL INFORMATION, contains the following information: • WARRANTY INFORMATION • TABLE OF CONTENT • HOW TO USE THE SERVICE PARTS MANUAL The second section, ILLUSTRATED PARTS BREAKDOWN, contains illustrations and parts lists for all systems of your vehicle.
  • Page 8 HOW TO USE THE SERVICE PARTS MANUAL Title Title *See Body Section for decal information 102,104 Front of Vehicle 83,88 81,86 84,89 82,87 128 129 Left hand illustration page Parts list (continued on rear of page if required) 1. WHEN THE PART NUMBER IS NOT KNOWN •...
  • Page 9 HOW TO USE THE SERVICE PARTS MANUAL 3. COLOR CODE FOR BODY COMPONENTS The last two digits of the part number for the body part will denote the color code, locate the part number for the cowl, rear body, seat pod, side panel or seat wrap then locate your color in the list below, replace the last ** or XX with the two digit color code.
  • Page 10 ACCELERATOR Front of Vehicle To harness from direction selector Part of Frame Pedal Box Assembly includes items 2 - 33 Accelerator Pedal Assembly includes items 28 - 30 689394 Service Parts Manual Page A-1...
  • Page 11 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 12 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 13 ACCELERATOR Notes: 689394 Service Parts Manual Page A-4...
  • Page 14 ACCELERATOR To Direction Selector Shifter Cable Engine Front of Vehicle Rear Axle 689394 Service Parts Manual Page A-5...
  • Page 15 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 16 ACCELERATOR Notes: 689394 Service Parts Manual Page A-7...
  • Page 17 ACCELERATOR Notes: 689394 Service Parts Manual Page A-8...
  • Page 18 AIR FILTER Air Filter Assembly includes items 2 - 6 Front of Vehicle Seat Support 689394 Service Parts Manual Page B-1...
  • Page 19 AIR FILTER THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 20 AIR FILTER Notes: 689394 Service Parts Manual Page B-3...
  • Page 21 AIR FILTER Notes: 689394 Service Parts Manual Page B-4...
  • Page 22 BODY Instrument Panel Assembly includes items 2 - 6 Front Splash Guard kit includes items 22 - 25 Hardware Kit includes item 25 Cowl Shown Front of Vehicle For reference 689394 Service Parts Manual Page C-1...
  • Page 23 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 24 BODY Part of Mirror 689394 Service Parts Manual Page C-3...
  • Page 25 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 26 BODY 689394 Service Parts Manual Page C-5...
  • Page 27 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 28 BODY Rear Body (Without Taillights) includes item 2 689394 Service Parts Manual Page C-7...
  • Page 29 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 30 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 31 BODY Notes: 689394 Service Parts Manual Page C-10...
  • Page 32 BODY MESSAGE HOLDER Front of Vehicle ASH TRAY Ash Tray Kit includes items 6 - 9 Access Cover 689394 Service Parts Manual Page C-11...
  • Page 33 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 34 BODY Notes: 689394 Service Parts Manual Page C-13...
  • Page 35 BODY Notes: 689394 Service Parts Manual Page C-14...
  • Page 36 BODY SAND BUCKET KIT SAND BOTTLE DIVOT REPAIR KIT Reinforcing Plate (Part of Holder) Sand Bucket Kit includes items 17 - 20 Side Basket Kit includes items 2 - 4 Center Basket Kit includes items 11 - 14 SIDE BASKET CLUB AND BALL WASHER KIT CENTER BASKET KIT Club and Ball Washer Kit includes items 24 - 27...
  • Page 37 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 38 BODY Cooler Kit includes items 2 - 4 BOX COOLER AND BRACKET RAKE ASSEMBLY Rake Assembly includes items 8 - 14 689394 Service Parts Manual Page C-17...
  • Page 39 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 40 BODY Four Bag Attachment Kit includes items 2 - 15 FOUR BAG ATTACHMENT KIT 689394 Service Parts Manual Page C-19...
  • Page 41 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 42 BODY Notes: 689394 Service Parts Manual Page C-21...
  • Page 43 BODY Notes: 689394 Service Parts Manual Page C-22...
  • Page 44 BRAKES Brake Pedal Assembly (with Brake Lights) includes items 2 - 29 Front of Vehicle 2 WHEEL DRUM BRAKES 689394 Service Parts Manual Page D-1...
  • Page 45 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 46 BRAKES 2 WHEEL DRUM BRAKES Compensator Assembly includes items 37 - 49 Front of Vehicle Part of Frame Accelerator Pedal 689394 Service Parts Manual Page D-3...
  • Page 47 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 48 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 49 BRAKES Notes: 689394 Service Parts Manual Page D-6...
  • Page 50 BRAKES Brake Assembly (Driver Side) includes items 3 - 9 Brake Assembly (Passenger Side) includes items 3 - 8, 10 Brake Drum Assembly includes items 17, 18 Tension Pin Adjuster Assembly 689394 Service Parts Manual Page D-7...
  • Page 51 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 52 BRAKES Notes: 689394 Service Parts Manual Page D-9...
  • Page 53 BRAKES Notes: 689394 Service Parts Manual Page D-10...
  • Page 54 CLUTCH Primary Team Clutch, GC includes items 2 - 11 Secondary Team Clutch, GC includes items 13 - 19 Primary Team Clutch, TRK includes items 2 - 4 & 6 - 11, 28 Secondary Team Clutch, TRK includes items 13 - 15 & 17 - 19, 30 689394 Service Parts Manual Page E-1...
  • Page 55 CLUTCH THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 56 CLUTCH Notes: 689394 Service Parts Manual Page E-3...
  • Page 57 CLUTCH Notes: 689394 Service Parts Manual Page E-4...
  • Page 58 DIRECTION SELECTOR Direction Selector Assembly includes items 2 - 34 Front of Vehicle Governor Cable Bracket 689394 Service Parts Manual Page F-1...
  • Page 59 DIRECTION SELECTOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 60 DIRECTION SELECTOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 61 DIRECTION SELECTOR Notes: 689394 Service Parts Manual Page F-4...
  • Page 62 ELECTRICAL Front of Vehicle From Main Harness See STARTER GENERATOR Section Chassis Frame To Solenoid 689394 Service Parts Manual Page G-1...
  • Page 63 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 64 ELECTRICAL BLACK Electrical Plate Assembly includes items 2 - 11 Front of Vehicle Part of Solenoid To F2 On Starter/ Generator Part of Solenoid Fuse Block includes item 24 Seat Frame Part of Horn Floorboard Part of Horn Airbox Bracket Use existing hardware from Airbox...
  • Page 65 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 66 ELECTRICAL Headlight Assembly, Driver Side includes items 3 - 10 Headlight Assembly, Passenger Side includes items 3 - 9, 11 Headlight Headlight Driver side Shown Passenger side Shown Front of Vehicle 689394 Service Parts Manual Page G-5...
  • Page 67 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 68 ELECTRICAL TAILLIGHT ASSEMBLY Front of Vehicle Light Assembly to Bezel REVERSE BUZZER GRN/ Front of Vehicle Front of Vehicle 689394 Service Parts Manual Page G-7...
  • Page 69 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 70 ELECTRICAL 12V Power Outlet Front of Vehicle KEY SWITCH, INDICATOR LIGHT(S), AND FUEL GAUGE HOUR METER F-N-R Mounting Screws Seat Support SOLENOID COVER Fuse Block F-N-R Front of Vehicle 689394 Service Parts Manual Page G-9...
  • Page 71 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 72 ELECTRICAL Notes: 689394 Service Parts Manual Page G-11...
  • Page 73 ELECTRICAL Notes: 689394 Service Parts Manual Page G-12...
  • Page 74 ENGINE AND MUFFLER Engine, Gas, 13HP includes items 2 - 5 Front of Vehicle 689394 Service Parts Manual Page H-1...
  • Page 75 ENGINE AND MUFFLER THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 76 ENGINE AND MUFFLER Notes: 689394 Service Parts Manual Page H-3...
  • Page 77 ENGINE AND MUFFLER Notes: 689394 Service Parts Manual Page H-4...
  • Page 78 ENGINE MOUNTING Front Mount Bracket Assembly includes items 9 - 13 Part of Frame Engine Front of Vehicle 689394 Service Parts Manual Page J-1...
  • Page 79 ENGINE MOUNTING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 80 ENGINE MOUNTING Notes: 689394 Service Parts Manual Page J-3...
  • Page 81 ENGINE MOUNTING Notes: 689394 Service Parts Manual Page J-4...
  • Page 82 FRONT SUSPENSION AND STEERING Part of Frame Front of Vehicle Part of Frame 4 LUG Spindle and Hub Assembly (Passenger Side) includes items 4 - 13 Spindle and Hub Assembly (Driver Side) includes items 5 - 13, 15 689394 Service Parts Manual Page K-1...
  • Page 83 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 84 FRONT SUSPENSION AND STEERING Tie Rod Assembly includes items 8 - 12 Steering Coloumn Kit includes items 20 - 30 Front of Vehicle 689394 Service Parts Manual Page K-3...
  • Page 85 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 86 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 87 FRONT SUSPENSION AND STEERING Notes: 689394 Service Parts Manual Page K-6...
  • Page 88 FRONT SUSPENSION AND STEERING Rack and Pinion Unit includes items 2 - 23 Tie Rod End (Outer) includes items 24 - 25 689394 Service Parts Manual Page K-7...
  • Page 89 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 90 FRONT SUSPENSION AND STEERING Notes: 689394 Service Parts Manual Page K-9...
  • Page 91 FRONT SUSPENSION AND STEERING Notes: 689394 Service Parts Manual Page K-10...
  • Page 92 FUEL SYSTEM Fuel Tank Assembly includes items 2 - 8 Carbon Canister Assembly includes items 22 - 26 Front of Vehicle To Exhaust 689394 Service Parts Manual Page L-1...
  • Page 93 FUEL SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 94 FUEL SYSTEM Notes: 689394 Service Parts Manual Page L-3...
  • Page 95 FUEL SYSTEM Notes: 689394 Service Parts Manual Page L-4...
  • Page 96 REAR AXLE DETAIL A DETAIL A Rear Axle, 11.47:1 includes items 3 - 63 Axle Case L Complete includes items 4 - 13, 24 Axle Case R Complete includes items 13, 19 - 23 Differential Case includes items 34, 47, 49 and 50 Differential Assembly includes items 46, 48 and 52 689394 Service Parts Manual Page M-1...
  • Page 97 REAR AXLE THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 98 REAR AXLE THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 99 REAR AXLE Notes: 689394 Service Parts Manual Page M-4...
  • Page 100 REAR SUSPENSION Front of Vehicle 689394 Service Parts Manual Page N-1...
  • Page 101 REAR SUSPENSION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 102 REAR SUSPENSION Notes: 689394 Service Parts Manual Page N-3...
  • Page 103 REAR SUSPENSION Notes: 689394 Service Parts Manual Page N-4...
  • Page 104 SEATING For Vehicles with Premium Seat Option Premium Seat Bottom Assembly includes items 2 - 7 Premium Seat Bottom Assembly includes items 3 - 8 Fornt of Vehicle Premium Seat Bottom Assembly includes items 9 - 10 Front of Vehicle 689394 Service Parts Manual Page P-1...
  • Page 105 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 106 SEATING Seat Back Assembly includes items 16 - 21 Bag Holder Assembly includes items 28 - 29 Front of Vehicle Part of Frame Seat Bottom Assembly includes items 2 - 13 689394 Service Parts Manual Page P-3...
  • Page 107 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 108 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 109 SEATING Notes: 689394 Service Parts Manual Page P-6...
  • Page 110 STARTER AND GENERATOR Starter / Generator includes items 2 - 17 Headband Kit includes item 18 689394 Service Parts Manual Page R-1...
  • Page 111 STARTER AND GENERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 112 STARTER AND GENERATOR Front of Vehicle 689394 Service Parts Manual Page R-3...
  • Page 113 STARTER AND GENERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 114 STARTER AND GENERATOR Notes: 689394 Service Parts Manual Page R-5...
  • Page 115 STARTER AND GENERATOR Notes: 689394 Service Parts Manual Page R-6...
  • Page 116 TOW BAR Towbar Assembly includes items 2 - 21 689394 Service Parts Manual Page S-1...
  • Page 117 TOW BAR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 118 TOW BAR Sweater Basket Towbar Assembly Front of Vehicle 689394 Service Parts Manual Page S-3...
  • Page 119 TOW BAR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 120 TOW BAR Front of Vehicle Bagwell Upper Crossmember 689394 Service Parts Manual Page S-5...
  • Page 121 TOW BAR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 122 TOW BAR Casual Towbar Kit includes item 2 Casual Towbar Assembly includes items 3 - 15 Tie Rod Assembly includes items 5 - 7 Spindle Arm Front Axle Front of vehicle 689394 Service Parts Manual Page S-7...
  • Page 123 TOW BAR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 124 TOW BAR Front of Vehicle Spindle Front Receiver Front Towbar Assembly includes items 2 - 13 Front Axle Hitch Pin Hitch Pin Rear Body Hitch Pin Removable Towbar Assembly includes items 19 - 28 Front of Vehicle 689394 Service Parts Manual Page S-9...
  • Page 125 TOW BAR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 126 TOW BAR Notes: 689394 Service Parts Manual Page S-11...
  • Page 127 TOW BAR Notes: 689394 Service Parts Manual Page S-12...
  • Page 128 WEATHER PROTECTION SUN TOP Sun Top Kit, 54" (Tan) includes items 4, 8 Sun Top Kit, 54" (Beige) includes items 5, 8 Sun Top Kit, 54" (Black) includes items 6, 8 Strut Set Kit, 1" includes items 9 - 11 Sun Top Hardware Kit includes items 12 - 25 Vehicle Shown for Reference...
  • Page 129 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 130 WEATHER PROTECTION REAR VIEW MIRROR Rear View Mirror Kit includes items 2 - 4 Front Top Strut Windshield Kit, Split includes items 7 - 14 Split Windshield Assembly includes items 8 - 11 Setscrew Hardware Kit includes items 15 - 18 Strut Full Windshield Front of...
  • Page 131 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 132 WEATHER PROTECTION WEATHER ENCLOSURE Vehicle Shown for Reference BAG COVER KIT Vehicle Shown for Reference 689394 Service Parts Manual Page T-5...
  • Page 133 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 134 WEATHER PROTECTION Notes: 689394 Service Parts Manual Page T-7...
  • Page 135 WEATHER PROTECTION Notes: 689394 Service Parts Manual Page T-8...
  • Page 136 WHEELS AND TIRES Wheel and Tire Assembly (Links) includes items 2 - 4 Wheel and Tire Assembly (Sure Trail) includes items 9 - 11 Wheel and Tire Assembly (Hole - N - One) includes items 17 - 19 Wheel and Tire Assembly (Machine Alloy) includes items 22 - 24 FRONT REAR 689394 Service Parts Manual...
  • Page 137 WHEELS AND TIRES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 138 WHEELS AND TIRES Notes: 689394 Service Parts Manual Page U-3...
  • Page 139 WHEELS AND TIRES Notes: 689394 Service Parts Manual Page U-4...
  • Page 140 DECALS AND LABELS Cup Holder WARNING Failure to follow these instructions can result in SERIOUS INJURY or DEATH Except where PERMITTED BY LAW: NEVER drive on public roads. Drivers must possess a valid drivers license in accordance with local state law. AVOID FALLS from the vehicle: Do not start moving until all occupants are PROPERLY SEATED and HOLDING ON.
  • Page 141 DECALS AND LABELS THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 142 DECALS AND LABELS For CE Vehicles MIN 150 634229 AUTHORIZED REPRESENTATIVE IN EC IS: RANSOMES JACOBSEN LTD. WEST ROAD, IPSWICH, SUFFOLK, IP3 9TT, UK 614068 601783 www.ezgo.com 689394 Service Parts Manual Page V-3...
  • Page 143 DECALS AND LABELS THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 144 DECALS AND LABELS Notes: 689394 Service Parts Manual Page V-5...
  • Page 145 DECALS AND LABELS Notes: 689394 Service Parts Manual Page V-6...
  • Page 146 Textron Specialized Vehicles, Inc., 1451 Marvin Griffin Road Augusta, Georgia 30906 - 3852 USA CONTACT INFORMATION Owner’s Guides and Repair Manuals are available from a local Distributor, an authorized Branch, Parts & Accessories Department or at www.shop.txtsv.com/shop-ezgo Copyrighted Material This manual may not be reproduced in whole or...
