SERVICE PARTS MANUAL
GASOLINE POWERED VEHICLE
ISSUED FEBRUARY 2016
REVISED FEBRUARY 2019
653637-V
5
6
9
1 1
1 6
1 3
1 5
7
8
1 8
1 7
1 - I N C L U D E S I T E M S 3 - 1 6
1 9
3
1 0
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZGO TXT Valor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Textron EZGO TXT Valor

Summary of Contents for Textron EZGO TXT Valor

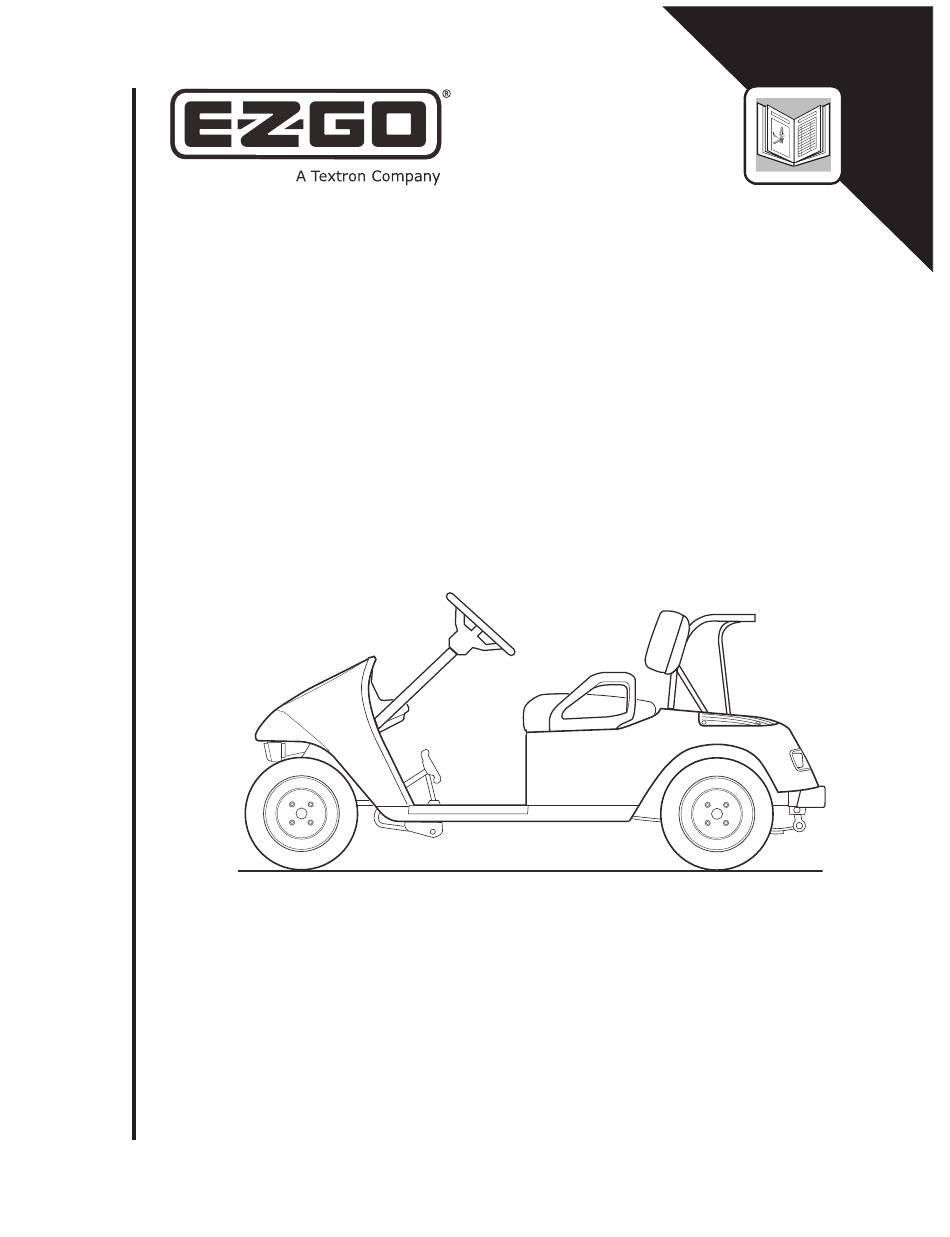

  • Page 1 653637-V 1 - I N C L U D E S I T E M S 3 - 1 6 SERVICE PARTS MANUAL GASOLINE POWERED VEHICLE ISSUED FEBRUARY 2016 REVISED FEBRUARY 2019...
  • Page 3 TXT Valor STARTING MODEL YEAR 2010 DISCLAIMER: The E-Z-GO Division of Textron Inc. reserves the right to incorporate engineering and design changes to products in this Manual, without obligation to include these changes on units leased/sold previously. The information contained in this Manual may be revised periodically by the E-Z-GO Division, and therefore is subject to change without notice.
  • Page 4 GENERAL INFORMATION To obtain a copy of the limited warranty applicable to the vehicle, call or write a local Distributor, authorized Branch or the Warranty Department with vehicle serial number and manufacturer code. The use of non Original Equipment Manufacturer (OEM) parts may void the warranty. Tampering with or adjusting the governor to permit vehicle to operate at above factory specifications will void the vehicle warranty.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SECTION Page No. HOW TO USE THE SERVICE PARTS MANUAL ..........V ACCELERATOR .
  • Page 6 TABLE OF CONTENTS SECTION Page No. FRONT SUSPENSION AND STEERING ..........M-1 •...

  • Page 7: How To Use The Service Parts Manual

    HOW TO USE THE SERVICE PARTS MANUAL This manual is divided into several sections: GENERAL INFORMATION • TABLE OF CONTENTS • HOW TO USE THE SERVICE PARTS MANUAL ILLUSTRATED PARTS BREAKDOWN • Contains illustrations and parts lists for all systems of the vehicle. USE OF THE MANUAL To use this manual, consult the TABLE OF CONTENTS (page iii) to locate the information or illustration required.
  • Page 8 HOW TO USE THE SERVICE PARTS MANUAL Title Title *See Body Section for decal information 102,104 Front of Vehicle 83,88 81,86 84,89 82,87 128 129 Left hand illustration page Parts list (continued on rear of page if required) 1. WHEN THE PART NUMBER IS NOT KNOWN •...
  • Page 9 HOW TO USE THE SERVICE PARTS MANUAL 2. COLOR CODE FOR BODY COMPONENTS The last two digits of the part number for the body part will denote the color code, locate the part number for the cowl, rear body, seat pod, side panel or seat wrap then locate your color in lthe list below, replace the last ** or XX with the two digit color code.
  • Page 10 ACCELERATOR PEDAL BOX ASSEMBLY includes items 2 - 33 ACCELERATOR PEDAL ASSEMBLY includes items 31 - 33 Front of Vehicle Governor Part of Frame 653637 Service Parts Manual Page A-1...
  • Page 11 ACCELERATOR When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 606990 PEDAL BOX ASSEMBLY (INCLUDES ITEMS 2 - 33) ........

  • Page 12: Accelerator

    ACCELERATOR When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 16409G1 OVAL RIVET, 3/16"...
  • Page 13 ACCELERATOR Notes: 653637 Service Parts Manual Page A-4...
  • Page 14 ACCELERATOR FOR VEHICLES MANUFACTURED UNTIL APRIL 19, 2014 DO NOT TAMPER WITH OR ATTEMPT TO CHANGE THE ADJUSTMENT OF THE GOVERNOR. GOVERNOR TAMPERING CAN RESULT IN SERIOUS PERSONAL INJURY AND WILL VOID THE VEHICLE WARRANTY. 608527 Front of Vehicle To Direction Selector Shifter Cable Front of Vehicle Differential...
  • Page 15 ACCELERATOR When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 606083 UPPER GOVERNOR BRACKET..............
  • Page 16 ACCELERATOR Notes: Page A-7 653637 Service Parts Manual...
  • Page 17 ACCELERATOR Notes: 653637 Service Parts Manual Page A-8...

  • Page 18: Air Filter

    AIR FILTER AIR FILTER ASSEMBLY includes items 2 - 6 Front of Vehicle 653637 Service Parts Manual Page B-1...
  • Page 19 AIR FILTER When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 20 AIR FILTER Notes: Page B-3 653637 Service Parts Manual...
  • Page 21 AIR FILTER Notes: 653637 Service Parts Manual Page B-4...

  • Page 22: Body

    BODY Front of Vehicle INSTRUMENT PANEL ASSEMBLY includes items 2 - 6 Self Drilling Screws Upper Section Self Drilling Screws Front of Vehicle Lower Leg Section 653637 Service Parts Manual Page C-1...

  • Page 23: Instrument Panel

    BODY When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 71151G01 INSTRUMENT PANEL ASSEMBLY (INCLUDES ITEMS 2 - 6).......
  • Page 24 BODY When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 71055G01 RIVET (ALUMINUM), 3/16”...
  • Page 25 BODY Notes: 653637 Service Parts Manual Page C-4...
  • Page 26 BODY Front of Vehicle 653637 Service Parts Manual Page C-5...
  • Page 27 BODY When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 641260 UPPER FLOORPAN ..................

  • Page 28: Rear Body

    BODY REAR BODY ASSEMBLY W/LIGHTS includes items 2 - 3 SPLASHGUARD FRONT-KIT includes items 52 - 54 SPLASHGUARD HARDWARE KIT includes item 55 Cowl Shown Front of Vehicle For reference Front of Vehicle FOR VEHICLES MANUFACTURED FROM MARCH 30, 2014 Front of Vehicle 653637 Service Parts Manual Page C-7...
  • Page 29 BODY When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 625272G1XX REAR BODY ASSEMBLY W/LIGHTS (INCLUDES ITEMS 2 - 3) (SEE COLOR CODES IN HOW TO USE SECTION)
  • Page 30 BODY When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 71578G01 REAR BUMPER ....................
  • Page 31 BODY Notes: 653637 Service Parts Manual Page C-10...
  • Page 32 BODY Front of Vehicle Front of Vehicle 653637 Service Parts Manual Page C-11...
  • Page 33 BODY When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 624607 FRONT FASCIA ....................
  • Page 34 BODY Notes: Page C-13 653637 Service Parts Manual...
  • Page 35 BODY Notes: 653637 Service Parts Manual Page C-14...
  • Page 36 BRAKES Part of Frame Accelerator Pedal BRAKE PEDAL ASSEMBLY W/O BRAKE LIGHTS includes items 2 - 10 COMPENSATOR ASSEMBLY includes items 52 - 61 653637 Service Parts Manual Page D-1...

  • Page 37: Brake Pedal

    BRAKES When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 70612G02 BRAKE PEDAL ASSEMBLY (WITHOUT BRAKE LIGHTS) (INCLUDES ITEMS 2 - 10) ................
  • Page 38 BRAKES When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 10387G3 COTTER PIN, 3/32"...
  • Page 39 BRAKES Notes: 653637 Service Parts Manual Page D-4...
  • Page 40 BRAKES BRAKE ASSEMBLY (DRIVER SIDE) includes items 3 - 8, 11 TOP PULL BRAKE ASSEMBLY (PASSENGER SIDE) includes items 3 - 8, 12 BRAKE DRUM ASSEMBLY includes items 20 - 21 Tension Pin GEAR ADJUSTER BOTTOM PULL Tension Pin 653637 Service Parts Manual Page D-5...
  • Page 41 BRAKES When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 612211 BRAKE ASSEMBLY (DRIVER SIDE) (INCLUDES ITEMS 3 - 8, 11) ....
  • Page 42 BRAKES Notes: Page D-7 653637 Service Parts Manual...
  • Page 43 BRAKES Notes: 653637 Service Parts Manual Page D-8...

  • Page 44: Carburetor

    CARBURETOR AND CHOKE CARBURETOR includes items 2 - 22 Carburetor Page F-1 653637 Service Parts Manual...

  • Page 45: Choke Cable

    CARBURETOR AND CHOKE When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 46 CARBURETOR AND CHOKE Notes: Page F-3 653637 Service Parts Manual...
  • Page 47 CARBURETOR AND CHOKE Notes: Page F-4 653637 Service Parts Manual...

  • Page 48: Clutch

    CLUTCH Page G-1 653637 Service Parts Manual...
  • Page 49 CLUTCH When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. 672686 PRIMARY CLUTCH (INCLUDES ITEMS 2 - 11)..........
  • Page 50 CLUTCH Notes: Page G-3 653637 Service Parts Manual...
  • Page 51 CLUTCH Notes: Page G-4 653637 Service Parts Manual...

  • Page 52: Direction Selector

    DIRECTION SELECTOR DIRECTION SELECTOR ASSEMBLY includes items 2 - 24 653637 Service Parts Manual Page H-1...
  • Page 53 DIRECTION SELECTOR When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 54 DIRECTION SELECTOR When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 55 DIRECTION SELECTOR Notes: 653637 Service Parts Manual Page H-4...

  • Page 56: Electrical System

    ELECTRICAL SYSTEM FOR VEHICLES MANUFACTURED FOR VEHICLES MANUFACTURED FROM AUGUST 17, 2014 UNTIL NOVEMBER 08, 2015 Front of Vehicle FOR VEHICLES MANUFACTURED FROM NOVEMBER 09, 2015 See Body Section FOR VEHICLES MANUFACTURED UNTIL AUGUST 16, 2014 See Starter Generator Section Page J-1 653637 Service Parts Manual...

  • Page 57: Ground Cable

    ELECTRICAL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 58 ELECTRICAL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 59 ELECTRICAL SYSTEM Notes: Page J-4 653637 Service Parts Manual...
  • Page 60 ELECTRICAL SYSTEM ELECTRICAL PLATE ASSEMBLY includes items 2 - 19 BLACK SOLENOID, 14V includes items 10 - 13 FUSE BLOCK includes items 21 To Key Switch Front of Vehicle Control Harness To F2 On Starter/ Generator Seatwrap Support Floorboard FUSE BLOCK HORN HORN BUTTON Page J-5...
  • Page 61 ELECTRICAL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 62 ELECTRICAL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 63 ELECTRICAL SYSTEM Notes: Page J-8 653637 Service Parts Manual...
  • Page 64 ELECTRICAL SYSTEM FOR VEHICLES MANUFACTURED Passenger Side Driver Side UNTIL MARCH 29, 2014 33 34 Front of Vehicle FOR VEHICLES MANUFACTURED FROM MARCH 30, 2014 Rear Rear Fender Fender TAILLIGHT FOR VEHICLES MANUFACTURED FOR VEHICLES MANUFACTURED FROM MARCH 30, 2014 UNTIL MARCH 29, 2014 Page J-9 653637 Service Parts Manual...
  • Page 65 ELECTRICAL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 66 ELECTRICAL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 67 ELECTRICAL SYSTEM Notes: Page J-12 653637 Service Parts Manual...
  • Page 68 ELECTRICAL SYSTEM Center Compartment GRN/BLK WARNING Failure to follow these instructions can result in SERIOUS INJURY or DEATH Except where PERMITTED BY LAW: NEVER drive on public roads. Drivers must possess a valid drivers license in accordance with local state law. AVOID FALLS from the vehicle: Do not start moving until all occupants are PROPERLY SEATED and HOLDING ON.
  • Page 69 ELECTRICAL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 70 ELECTRICAL SYSTEM Notes: Page J-15 653637 Service Parts Manual...
  • Page 71 ELECTRICAL SYSTEM Notes: Page J-16 653637 Service Parts Manual...

  • Page 72: Engine And Muffler

    ENGINE AND MUFFLER GAS ENGINE, 13HP includes items 2 - 6 653637 Service Parts Manual Page K-1...

  • Page 73: Muffler

    ENGINE AND MUFFLER When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 74 ENGINE AND MUFFLER Notes: Page K-3 653637 Service Parts Manual...
  • Page 75 ENGINE AND MUFFLER Notes: 653637 Service Parts Manual Page K-4...

  • Page 76: Engine Mounting

    ENGINE MOUNTING 653637 Service Parts Manual Page L-1...

  • Page 77: Front Engine Mount

    ENGINE MOUNTING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 78 ENGINE MOUNTING Front of Vehicle FOR VEHICLES MANUFACTURED FROM APRIL 20, 2014 653637 Service Parts Manual Page L-3...
  • Page 79 ENGINE MOUNTING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 80 ENGINE MOUNTING Notes: Page L-5 653637 Service Parts Manual...
  • Page 81 ENGINE MOUNTING Notes: 653637 Service Parts Manual Page L-6...

  • Page 82: Front Suspension And Steering

    FRONT SUSPENSION AND STEERING SPINDLE ASSEMBLY (PASSENGER SIDE) includes items 4 - 13 SPINDLE ASSEMBLY (DRIVER SIDE) includes items 5 - 13, 15 Front of Vehicle Part of Frame Part of Frame *NOTE: Tie Rod Not Shown for Clarity Page M-1 653637 Service Parts Manual...
  • Page 83 FRONT SUSPENSION AND STEERING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 84 FRONT SUSPENSION AND STEERING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 85 FRONT SUSPENSION AND STEERING Notes: Page M-4 653637 Service Parts Manual...
  • Page 86 FRONT SUSPENSION AND STEERING READ AND OBEY THE FOLLOWING WARNINGS TO DECREASE RISK OF SEVERE INJURY OR DEATH. 664789 Pressing the accelerator pedal releases the parking brake even when the key is in the OFF position; the vehicle may move when the accelerator pedal is pressed. Unintentional movement of the vehicle can cause injury or death. Do not •...

  • Page 87: Steering Column

    FRONT SUSPENSION AND STEERING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.

  • Page 88: Steering Wheel

    FRONT SUSPENSION AND STEERING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 89 FRONT SUSPENSION AND STEERING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 90 FRONT SUSPENSION AND STEERING Notes: Page M-9 653637 Service Parts Manual...
  • Page 91 FRONT SUSPENSION AND STEERING Notes: Page M-10 653637 Service Parts Manual...
  • Page 92 FUEL SYSTEM Front of Vehicle Air Filter Part of Frame Carburetor CARB FUEL TANK ASSEMBLY (WITHOUT SWITCH) includes items 3 - 10 CARB FUEL TANK ASSEMBLY (USE WITH SENDING UNIT) includes items 5 - 15 FUEL TANK, FLUOR (WITHOUT SENDER UNIT) includes item 4 CARB FUEL TANK (WITH SWITCH) includes item 12 EARLY PRODUCTION VEHICLES Page N-1...
  • Page 93 FUEL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 94 FUEL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 95 FUEL SYSTEM Notes: Page N-4 653637 Service Parts Manual...

  • Page 96: Fuel System

    FUEL SYSTEM FUEL LINE ASSEMBLY includes items 2 - 8 Front of Vehicle Crankcase Pulse Carburetor LATE PRODUCTION VEHICLES Page N-5 653637 Service Parts Manual...
  • Page 97 FUEL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 98 FUEL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 99 FUEL SYSTEM Notes: Page N-8 653637 Service Parts Manual...
  • Page 100 FUEL SYSTEM FUEL TANK ASSEMBLY (WITHOUT SENDER UNIT) includes items 2 - 8 LATE PRODUCTION VEHICLES Page N-9 653637 Service Parts Manual...
  • Page 101 FUEL SYSTEM When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 102 FUEL SYSTEM Notes: Page N-11 653637 Service Parts Manual...
  • Page 103 FUEL SYSTEM Notes: Page N-12 653637 Service Parts Manual...
  • Page 104 REAR AXLE DETAIL A DETAIL A REAR AXLE, 11.47:1 includes items 3 - 63 AXLE CASE L COMPLETE includes items 4 - 12, 24 AXLE CASE R COMPLETE includes items 13, 19 - 23 DIFFERENTIAL CASE includes items 34, 47, 49 and 50 DIFFERENTIAL ASSEMBLY includes items 46, 48 and 52 DIFFERENTIAL CASE W/LSD includes items 34, 47, 49 and 50 DIFFERENTIAL ASSEMBLY W/LSD includes items 64, 48 and 52...
  • Page 105 REAR AXLE When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 106 REAR AXLE When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.

  • Page 107: Rear Axle

    REAR AXLE When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 108 REAR AXLE Notes: Page P-5 653637 Service Parts Manual...
  • Page 109 REAR AXLE Notes: Page P-6 653637 Service Parts Manual...

  • Page 110: Rear Suspension

    REAR SUSPENSION Front of Vehicle Page Q-1 653637 Service Parts Manual...

  • Page 111: Leaf Spring

    REAR SUSPENSION When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 112 REAR SUSPENSION Notes: Page Q-3 653637 Service Parts Manual...
  • Page 113 REAR SUSPENSION Notes: Page Q-4 653637 Service Parts Manual...

  • Page 114: Seating

    SEATING SEAT BOTTOM ASSEMBLY includes items 2 - 11 SEAT BACK ASSEMBLY includes items 14 - 16 Front of Vehicle Part of Frame FOR VEHICLES MANUFACTURED UNTIL OCTOBER 4, 2014 Page R-1 653637 Service Parts Manual...
  • Page 115 SEATING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. SEAT BOTTOM ASSEMBLY (INCLUDES ITEMS 2 - 11) .......
  • Page 116 SEATING SEAT BOTTOM ASSEMBLY includes items 2 - 11 SEAT BACK ASSEMBLY includes items 16 - 19 Front of Vehicle Part of Frame FOR VEHICLES MANUFACTURED FROM OCTOBER 5, 2014 Page R-3 653637 Service Parts Manual...

  • Page 117: Seat Bottom

    SEATING When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY. SEAT BOTTOM ASSEMBLY (INCLUDES ITEMS 2 - 11) .......
  • Page 118 SEATING Notes: Page R-5 653637 Service Parts Manual...
  • Page 119 SEATING Notes: Page R-6 653637 Service Parts Manual...

  • Page 120: Starter Generator

    STARTER GENERATOR STARTER / GENERATOR includes items 2 - 17 HEADBAND KIT includes item 18 Page S-1 653637 Service Parts Manual...
  • Page 121 STARTER GENERATOR When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 122 STARTER GENERATOR FOR VEHICLES MANUFACTURED UNTIL APRIL 19, 2014 FOR VEHICLES MANUFACTURED FROM APRIL 20, 2014 Page S-3 653637 Service Parts Manual...
  • Page 123 STARTER GENERATOR When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 124 STARTER GENERATOR Notes: Page S-5 653637 Service Parts Manual...
  • Page 125 STARTER GENERATOR Notes: Page S-6 653637 Service Parts Manual...
  • Page 126 WEATHER PROTECTION SUN TOP SUN TOP KIT, 54" (TAN) includes items 4, 8 SUN TOP KIT, 54" (BLACK) includes items 6, 8 STRUT SET KIT, 1" includes items 9 - 11 SUN TOP HARDWARE KIT includes items 12 - 25 Front of Vehicle Front of Vehicle DETAIL C...
  • Page 127 WEATHER PROTECTION When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.

  • Page 128: Weather Protection

    WEATHER PROTECTION WINDSHIELD KIT, SPLIT includes items 2 - 7 HARDWARE KIT includes items 9 - 12 Strut Front of Vehicle Front of Vehicle Strut SPLIT WINDSHIELD Page T-3 653637 Service Parts Manual...
  • Page 129 WEATHER PROTECTION When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 130 WEATHER PROTECTION Notes: Page T-5 653637 Service Parts Manual...
  • Page 131 WEATHER PROTECTION Notes: Page T-6 653637 Service Parts Manual...

  • Page 132: Wheels And Tires

    WHEELS AND TIRES Tire design may vary by Part Number WHEEL AND TIRE ASSEMBLY (BLACK) includes items 12 - 14 Page U-1 653637 Service Parts Manual...
  • Page 133 WHEELS AND TIRES When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO. DESCRIPTION QTY.
  • Page 134 WHEELS AND TIRES Notes: Page U-3 653637 Service Parts Manual...
  • Page 135 WHEELS AND TIRES Notes: Page U-4 653637 Service Parts Manual...
  • Page 136 E-Z-GO Division Of Textron, Inc., 1451 Marvin Griffin Road, Augusta, Georgia USA 30906-3852 TO CONTACT US North America: Technical Assistance & Warranty Phone: 1-800-774-3946, FAX: 1-800-448-8124 Service Parts Phone: 1-888-GET-EZGO (1-888-438-3946), FAX: 1-800-752-6175 International: Phone: 001-706-798-4311, FAX: 001-706-771-4609 Copyrighted Material...
