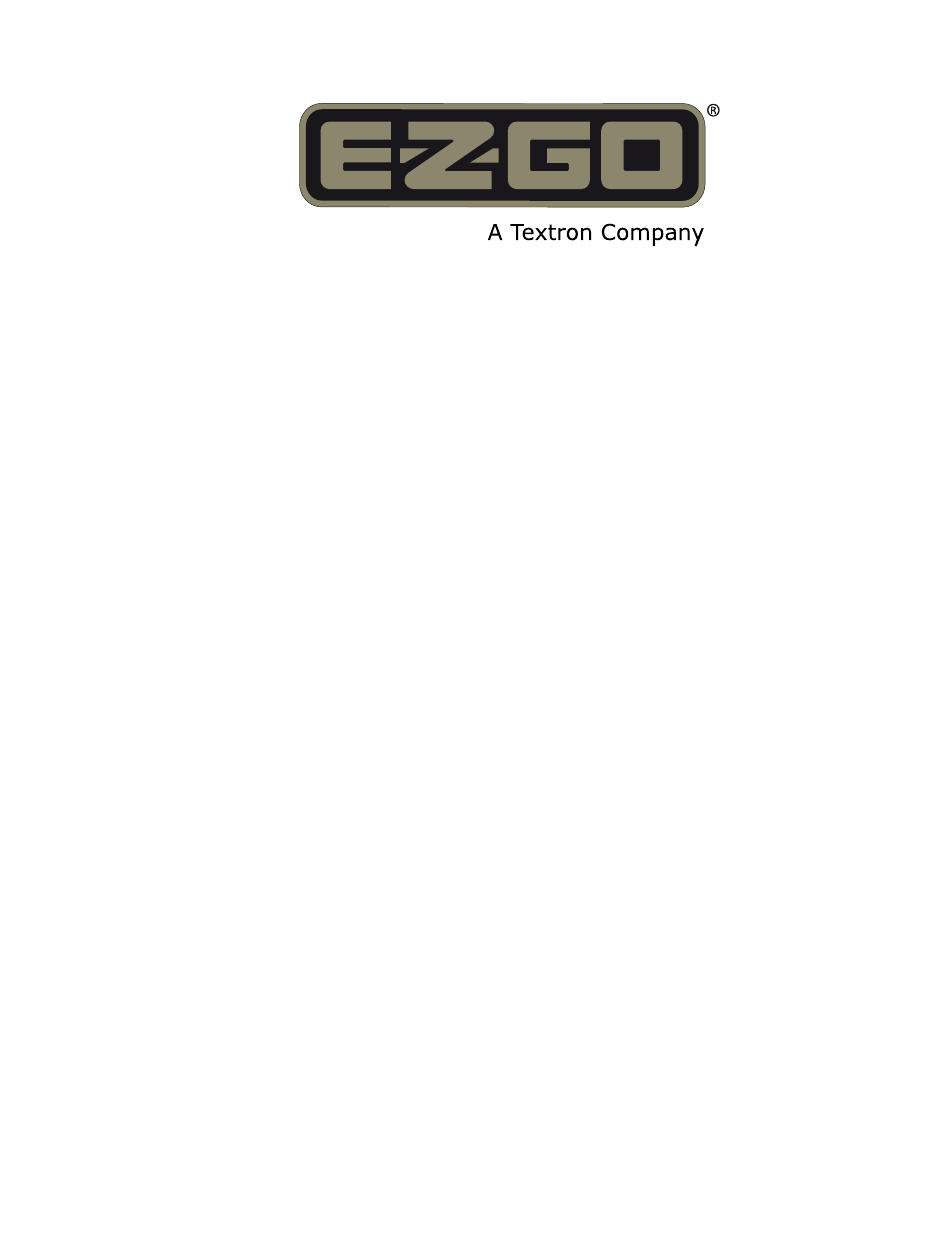

TXT SHUTTLE 2+2
Service Parts Manual
689396 - C
ISSUED MAY 2019
REVISED SEPTEMBER 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZGO TXT SHUTTLE 2+2 and is the answer not in the manual?

Questions and answers

Related Manuals for Textron EZGO TXT SHUTTLE 2+2

Summary of Contents for Textron EZGO TXT SHUTTLE 2+2

  • Page 1 TXT SHUTTLE 2+2 Service Parts Manual 689396 - C ISSUED MAY 2019 REVISED SEPTEMBER 2019...
  • Page 3 Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease its stability or increase the speed be- yond the factory specifications. Such modifications can cause serious personal injury or death. Textron Specialized Vehicles prohibits and dis-claims responsibility for any such modifications or any other alteration which would adversely affect the safety of the vehicle.
  • Page 4 GENERAL INFORMATION To obtain a copy of the limited warranty applicable to the vehicle, call or write a local Distributor, authorized Branch or the Warranty Department with vehicle serial number and manufacturer code. The use of non Original Equipment Manufacturer (OEM) approved parts may void the warranty.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SECTION Page No. HOW TO USE THE SERVICE PARTS MANUAL ..........V ACCELERATOR .
  • Page 6 NOTES Page iv Service Parts Manual Service Parts Manual...

  • Page 7: How To Use The Service Parts Manual

    HOW TO USE THE SERVICE PARTS MANUAL This manual is divided into several sections: • GENERAL INFORMATION • ILLUSTRATED PARTS BREAKDOWN The first section, GENERAL INFORMATION, contains the following information: • WARRANTY INFORMATION • TABLE OF CONTENT • HOW TO USE THE SERVICE PARTS MANUAL The second section, ILLUSTRATED PARTS BREAKDOWN, contains illustrations and parts lists for all systems of your vehicle.
  • Page 8 HOW TO USE THE SERVICE PARTS MANUAL Title Title *See Body Section for decal information 102,104 Front of Vehicle 83,88 81,86 84,89 82,87 128 129 Left hand illustration page Parts list (continued on rear of page if required) 1. WHEN THE PART NUMBER IS NOT KNOWN •...
  • Page 9 HOW TO USE THE SERVICE PARTS MANUAL 3. COLOR CODE FOR BODY COMPONENTS The last two digits of the part number for the body part will denote the color code, locate the part number for the cowl, rear body, seat pod, side panel or seat wrap then locate your color in the list below, replace the last ** or XX with the two digit color code.
  • Page 10 ACCELERATOR Front of Vehicle To harness from direction selector Part of Frame Pedal Box Assembly includes items 2 - 33 Accelerator Pedal Assembly includes items 28 - 30 689396 Service Parts Manual Page A-1...
  • Page 11 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 12 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 13 ACCELERATOR Notes: 689396 Service Parts Manual Page A-4...

  • Page 14: Accelerator

    ACCELERATOR To Direction Selector Shifter Cable Engine Front of Vehicle Rear Axle 689396 Service Parts Manual Page A-5...
  • Page 15 ACCELERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 16 ACCELERATOR Notes: 689396 Service Parts Manual Page A-7...
  • Page 17 ACCELERATOR Notes: 689396 Service Parts Manual Page A-8...

  • Page 18: Air Filter

    AIR FILTER Air Filter Assembly includes items 2 - 6 Front of Vehicle Seat Support 689396 Service Parts Manual Page B-1...
  • Page 19 AIR FILTER THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 20 AIR FILTER Notes: 689396 Service Parts Manual Page B-3...
  • Page 21 AIR FILTER Notes: 689396 Service Parts Manual Page B-4...

  • Page 22: Body

    BODY Instrument Panel Assembly includes items 2 - 6 Front Splash Guard Kit includes items 22 - 25 Hardware Kit includes item 25 Cowl Shown Front of Vehicle For reference 689396 Service Parts Manual Page C-1...
  • Page 23 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 24 BODY 689396 Service Parts Manual Page C-3...
  • Page 25 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 26 BODY 689396 Service Parts Manual Page C-5...
  • Page 27 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 28 BODY Rear Body (Without Taillights) includes item 2 Part of Mirror 689396 Service Parts Manual Page C-7...
  • Page 29 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 30 BODY MESSAGE HOLDER Front of Vehicle ASH TRAY Ash Tray Kit includes items 6 - 9 TWO BAG ATTACHMENT Access Cover Two Bag Attachment Kit includes items 16 - 19 689396 Service Parts Manual Page C-9...
  • Page 31 BODY THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 32 BODY Notes: 689396 Service Parts Manual Page C-11...
  • Page 33 BODY Notes: 689396 Service Parts Manual Page C-12...

  • Page 34: Brakes

    BRAKES Brake Pedal Assembly (with Brake Lights) includes items 2 - 29 Front of Vehicle 2 WHEEL DRUM BRAKES 689396 Service Parts Manual Page D-1...
  • Page 35 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 36 BRAKES 2 WHEEL DRUM BRAKES Compensator Assembly includes items 37 - 49 Front of Vehicle Part of Frame Accelerator Pedal 689396 Service Parts Manual Page D-3...
  • Page 37 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 38 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 39 BRAKES Notes: 689396 Service Parts Manual Page D-6...
  • Page 40 BRAKES Brake Assembly (Driver Side) includes items 3 - 9 Brake Assembly (Passenger Side) includes items 3 - 8, 10 Brake Drum Assembly includes items 17, 18 Tension Pin Adjuster Assembly 689396 Service Parts Manual Page D-7...
  • Page 41 BRAKES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 42 BRAKES Notes: 689396 Service Parts Manual Page D-9...
  • Page 43 BRAKES Notes: 689396 Service Parts Manual Page D-10...
  • Page 44 CLUTCH Primary Team Clutch, GC includes items 2 - 11 Secondary Team Clutch, GC includes items 13 - 19 Primary Team Clutch, TRK includes items 2 - 4 & 6 - 11, 28 Secondary Team Clutch, TRK includes items 13 - 15 & 17 - 19, 30 689396 Service Parts Manual Page E-1...
  • Page 45 CLUTCH THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 46: Clutch

    CLUTCH Notes: 689396 Service Parts Manual Page E-3...
  • Page 47 CLUTCH Notes: 689396 Service Parts Manual Page E-4...

  • Page 48: Direction Selector

    DIRECTION SELECTOR Direction Selector Assembly includes items 2 - 34 Front of Vehicle Governor Cable Bracket 689396 Service Parts Manual Page F-1...
  • Page 49 DIRECTION SELECTOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 50 DIRECTION SELECTOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 51 DIRECTION SELECTOR Notes: 689396 Service Parts Manual Page F-4...

  • Page 52: Electrical

    ELECTRICAL Front of Vehicle From Main Harness See STARTER GENERATOR Section Chassis Frame To Solenoid 689396 Service Parts Manual Page G-1...
  • Page 53 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 54 ELECTRICAL BLACK Electrical Plate Assembly includes items 2 - 11 Front of Vehicle Part of Solenoid To F2 On Starter/ Generator Part of Solenoid Fuse Block includes item 24 Seat Frame Part of Horn Floorboard Part of Horn Airbox Bracket Use existing hardware from Airbox...
  • Page 55 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 56 ELECTRICAL Headlight Assembly, Driver Side includes items 3 - 10 Headlight Assembly, Passenger Side includes items 3 - 9, 11 Headlight Headlight Driver side Shown Passenger side Shown Front of Vehicle 689396 Service Parts Manual Page G-5...
  • Page 57 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 58 ELECTRICAL TAILLIGHT ASSEMBLY Front of Vehicle Light Assembly to Bezel REVERSE BUZZER GRN/ Front of Vehicle Front of Vehicle 689396 Service Parts Manual Page G-7...
  • Page 59 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 60 ELECTRICAL 12V Power Outlet Front of Vehicle KEY SWITCH, INDICATOR LIGHT(S), AND FUEL GAUGE HOUR METER F-N-R Mounting Screws Seat Support SOLENOID COVER Fuse Block F-N-R Front of Vehicle 689396 Service Parts Manual Page G-9...
  • Page 61 ELECTRICAL THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 62 ELECTRICAL Notes: 689396 Service Parts Manual Page G-11...
  • Page 63 ELECTRICAL Notes: 689396 Service Parts Manual Page G-12...

  • Page 64: Engine And Muffler

    ENGINE AND MUFFLER Engine, Gas, 13HP includes items 2 - 5 Front of Vehicle 689396 Service Parts Manual Page H-1...
  • Page 65 ENGINE AND MUFFLER THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 66 ENGINE AND MUFFLER Notes: 689396 Service Parts Manual Page H-3...
  • Page 67 ENGINE AND MUFFLER Notes: 689396 Service Parts Manual Page H-4...

  • Page 68: Engine Mounting

    ENGINE MOUNTING Front Mount Bracket Assembly includes items 9 - 13 Part of Frame Engine Front of Vehicle 689396 Service Parts Manual Page J-1...
  • Page 69 ENGINE MOUNTING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 70 ENGINE MOUNTING Notes: 689396 Service Parts Manual Page J-3...
  • Page 71 ENGINE MOUNTING Notes: 689396 Service Parts Manual Page J-4...

  • Page 72: Front Suspension And Steering

    FRONT SUSPENSION AND STEERING Part of Frame Front of Vehicle Part of Frame 4 LUG Spindle and Hub Assembly (Passenger Side) includes items 4 - 13 Spindle and Hub Assembly (Driver Side) includes items 5 - 13, 15 689396 Service Parts Manual Page K-1...
  • Page 73 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 74 FRONT SUSPENSION AND STEERING Tie Rod Assembly includes items 8 - 12 Steering Coloumn Kit includes items 20 - 30 Front of Vehicle 689396 Service Parts Manual Page K-3...
  • Page 75 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 76 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 77 FRONT SUSPENSION AND STEERING Notes: 689396 Service Parts Manual Page K-6...
  • Page 78 FRONT SUSPENSION AND STEERING Rack and Pinion Unit includes items 2 - 23 Tie Rod End (Outer) includes items 24 - 25 689396 Service Parts Manual Page K-7...
  • Page 79 FRONT SUSPENSION AND STEERING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information.
  • Page 80 FRONT SUSPENSION AND STEERING Notes: 689396 Service Parts Manual Page K-9...
  • Page 81 FRONT SUSPENSION AND STEERING Notes: 689396 Service Parts Manual Page K-10...

  • Page 82: Fuel System

    FUEL SYSTEM Fuel Tank Assembly includes items 2 - 8 Carbon Canister Assembly includes items 22 - 26 Front of Vehicle To Exhaust 689396 Service Parts Manual Page L-1...
  • Page 83 FUEL SYSTEM THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 84 FUEL SYSTEM Notes: 689396 Service Parts Manual Page L-3...
  • Page 85 FUEL SYSTEM Notes: 689396 Service Parts Manual Page L-4...

  • Page 86: Rear Axle

    REAR AXLE DETAIL A DETAIL A Rear Axle, 11.47:1 includes items 3 - 63 Axle Case L Complete includes items 4 - 13, 24 Axle Case R Complete includes items 13, 19 - 23 Differential Case includes items 34, 47, 49 and 50 Differential Assembly includes items 46, 48 and 52 689396 Service Parts Manual Page M-1...
  • Page 87 REAR AXLE THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 88 REAR AXLE THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 89 REAR AXLE Notes: 689396 Service Parts Manual Page M-4...

  • Page 90: Rear Suspension

    REAR SUSPENSION Front of Vehicle 689396 Service Parts Manual Page N-1...
  • Page 91 REAR SUSPENSION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 92 REAR SUSPENSION Notes: 689396 Service Parts Manual Page N-3...
  • Page 93 REAR SUSPENSION Notes: 689396 Service Parts Manual Page N-4...
  • Page 94 SEATING Seat Bottom Assembly includes items 17 - 19 Flip Flop Seat Bottom includes items 12 - 16 Top of Vehicle Handrail Kit, Flip Flop Seat includes items 2 - 9 689396 Service Parts Manual Page P-1...
  • Page 95 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 96: Seating

    SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 97 SEATING Notes: 689396 Service Parts Manual Page P-4...
  • Page 98 SEATING Front and Rear Seat Back Assembly includes items 2 - 7 Front of Vehicle 689396 Service Parts Manual Page P-5...
  • Page 99 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 100 SEATING Front Seat Bottom Assembly includes items 2 - 14 Front of Vehicle 689396 Service Parts Manual Page P-7...
  • Page 101 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 102 SEATING Rear Seat Bottom Assembly includes items 2 - 14 689396 Service Parts Manual Page P-9...
  • Page 103 SEATING THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 104 SEATING Notes: 689396 Service Parts Manual Page P-11...
  • Page 105 SEATING Notes: 689396 Service Parts Manual Page P-12...
  • Page 106 STARTER AND GENERATOR Starter / Generator includes items 2 - 17 Headband Kit includes item 18 689396 Service Parts Manual Page R-1...
  • Page 107 STARTER AND GENERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 108 STARTER AND GENERATOR Front of Vehicle 689396 Service Parts Manual Page R-3...

  • Page 109: Starter/Generator

    STARTER AND GENERATOR THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 110 STARTER AND GENERATOR Notes: 689396 Service Parts Manual Page R-5...
  • Page 111 STARTER AND GENERATOR Notes: 689396 Service Parts Manual Page R-6...

  • Page 112: Weather Protection

    WEATHER PROTECTION SUNTOP Front of Vehicle Vehicle Shown for Reference Only DETAIL D (Rear) Front of Vehicle Front of Vehicle DETAIL A DETAIL B (Outside Tubing On Sun Top) Sun Top Kit, 80" (Tan) includes items 3, 5 - 8 Sun Top Kit, 80"...
  • Page 113 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 114 WEATHER PROTECTION REAR VIEW MIRROR Rear View Mirror Kit includes items 2 - 4 Front Top Strut Windshield Kit, Split includes items 7 - 14 Split Windshield Assembly includes items 8 - 11 Setscrew Hardware Kit includes items 15 - 18 Strut Full Windshield Front of...
  • Page 115 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 116 WEATHER PROTECTION WEATHER ENCLOSURE Vehicle Shown for Reference 689396 Service Parts Manual Page S-5...
  • Page 117 WEATHER PROTECTION THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 118 WEATHER PROTECTION Notes: 689396 Service Parts Manual Page S-7...
  • Page 119 WEATHER PROTECTION Notes: 689396 Service Parts Manual Page S-8...
  • Page 120 WHEELS AND TIRES Wheel and Tire Assembly (Links) includes items 2 - 4 Wheel and Tire Assembly (Sure Trail) includes items 9 - 11 Wheel and Tire Assembly (Hole - N - One) includes items 17 - 19 Wheel and Tire Assembly (Machine Alloy) includes items 22 - 24 Wheel and Tire Assembly (Kenda) includes items 28 - 30 FRONT REAR...
  • Page 121 WHEELS AND TIRES THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.

  • Page 122: Wheels And Tires

    WHEELS AND TIRES Notes: 689396 Service Parts Manual Page T-3...
  • Page 123 WHEELS AND TIRES Notes: 689396 Service Parts Manual Page T-4...

  • Page 124: Decals And Labels

    DECALS AND LABELS Cup Holder WARNING Failure to follow these instructions can result in SERIOUS INJURY or DEATH Except where PERMITTED BY LAW: NEVER drive on public roads. Drivers must possess a valid drivers license in accordance with local state law. AVOID FALLS from the vehicle: Do not start moving until all occupants are PROPERLY SEATED and HOLDING ON.
  • Page 125 DECALS AND LABELS THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 126 DECALS AND LABELS For CE Vehicles MIN 150 634229 AUTHORIZED REPRESENTATIVE IN EC IS: RANSOMES JACOBSEN LTD. WEST ROAD, IPSWICH, SUFFOLK, IP3 9TT, UK 614068 601783 www.ezgo.com 689396 Service Parts Manual Page U-3...
  • Page 127 DECALS AND LABELS THE USE OF NON U.L. PARTS WILL VOID ANY U.L. LISTING. When ordering parts, please specify the model and serial number of the product. * Indicates a component that is not available as an individual part. *** Indicates consult Customer Service Department for additional information. ITEM PART NO.
  • Page 128 DECALS AND LABELS Notes: 689396 Service Parts Manual Page U-5...
  • Page 129 DECALS AND LABELS Notes: 689396 Service Parts Manual Page U-6...
  • Page 130 Textron Specialized Vehicles, Inc., 1451 Marvin Griffin Road Augusta, Georgia 30906 - 3852 USA CONTACT INFORMATION Owner’s Guides and Repair Manuals are available from a local Distributor, an authorized Branch, Parts & Accessories Department or at www.shop.txtsv.com/shop-ezgo Copyrighted Material This manual may not be reproduced in whole or...
