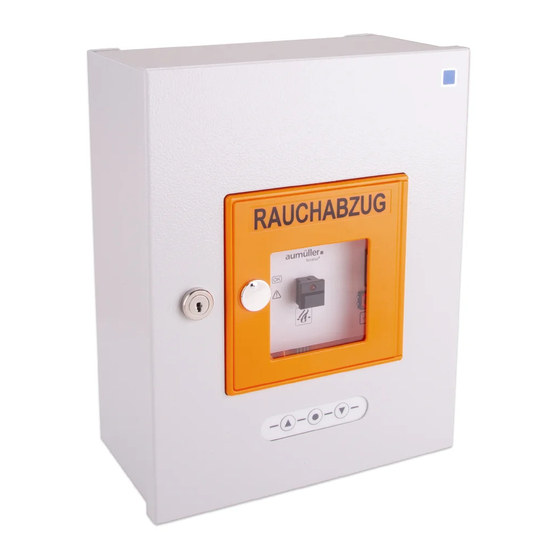

Aumuller EMB 7300 Installation And Commissioning Instructions

2,5 a / 5 a / 10 a / 20 a
Hide thumbs Also See for EMB 7300:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Commissioning
Power supply according to EN12101-10 and control panel according to prEN12101-9
RWA - C
ontRol
U
EMB 7300 - 2,5 A / 5 A / 10 A / 20 A
nit
tested electrical control device EMB 7300
with recognition number G 514001
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMB 7300 and is the answer not in the manual?

Questions and answers

Related Manuals for Aumuller EMB 7300

Summary of Contents for Aumuller EMB 7300

  • Page 1 Instructions Power supply according to EN12101-10 and control panel according to prEN12101-9 RWA - C EMB 7300 - 2,5 A / 5 A / 10 A / 20 A ontRol tested electrical control device EMB 7300 with recognition number G 514001...
  • Page 2 Target Groups, Intended Use Safety Instructions 3 - 6 2,5 A Data sheet RWA Control Unit EMB 7300 - 2,5 A Data sheet RWA Control Unit EMB 7300 - 10 A Data sheet RWA Control Unit EMB 7300 - 10 A...
  • Page 3 Failure to comply with the warning notes can lead to damage to property. Useful note for an optimum installation. Note regarding the system configuration using the free software of the Control Unit manufacturer (USB connection). Installation instruction RWA - Control Unit EMB 7300...
  • Page 4 Machi- nery Directive 2006/42/EG when the uti- lization or operation of the control device or the connected window drives deviate from their intended use! Installation instruction RWA - Control Unit EMB 7300...

  • Page 5: Afety Instructions

    Flexible cables may quirements. Furthermore, the system status can be saved, not be flush-mounted. Freely suspended cables must be retrieved and printed. equipped with strain reliefs. Installation instruction RWA - Control Unit EMB 7300...

  • Page 6: Ambient Conditions

    Declaration of Conformity ons and instructions of the respective accident prevention according to European guidelines. regulations (UVV and employer‘s liability insurance guide- lines (BGR /ASR) must be observed and obeyed. Installation instruction RWA - Control Unit EMB 7300...
  • Page 7 Surface mounting, steel sheet, RAL 7035 (light grey) Dimensions (WxHxD): 225 x 285 x 122 mm Connection terminals: 1,5 mm² / Drives: 6 mm² (rigid wire) Motherboard: 1 RWA group / 2 Vent groups Installation instruction RWA - Control Unit EMB 7300...
  • Page 8 Surface mounting, steel sheet, RAL 7035 (light grey) Dimensions (WxHxD): 400 x 400 x 200 mm Connection terminals: 1,5 mm² / Drives: 6 mm² (rigid wire) 1 RWA group / 2 Vent groups Motherboard: Installation instruction RWA - Control Unit EMB 7300...
  • Page 9 ARning may lead to serious injuries. be considered. It is required to keep a logbook for the EMB 7300 which must be accessible to authorized staff at all times. Scope of delivery: RWA - Control Unit EMB 7300...
  • Page 10 Output for drive line 1, 24V DC for smoke + heat exhausting + natural ventilation Input for ventilation line 1 (max. 10 vent buttons) Output for drive line 2 (only for EMB 7300 5 A – 0102; 10 A – 0102; 20 A – 0102) Input for ventilation line 2 (max. 10 vent buttons) These instructions include an overview as support (only for MB 7300 5 A –...
  • Page 11 -0102 max. 6,0 mm² (rigid wire) EMB 7300 -0101 EMB 7300 -0102 EMB 7300 -0102 Connecting drives and ventilation: Version EMB 7300 2,5A-0101, EMB 7300 2,5A-0101-T 2,5 A OPEN CLOSE Ventilation Rain Wind 230 V AC Plug-in terminals! Remove for connecting! Terminal RWA release in case of fire overrides ventilation.
  • Page 12 Connecting drives and ventilation: Version EMB 7300 5A-0101, EMB 7300 5A-0101-T, EMB 7300 10A-0101 OPEN CLOSE Ventilation 10 A 1 2 3 Rain Wind Plug-in terminals! Remove for connecting! Terminal RWA release in case of fire overrides ventilation.

  • Page 13: I Nstallation Step

    Principle fire detector detector clip (without housing) Drive 24V DC Drive 24V DC Install drive line end module at the last drive in the line! Drive 24V DC Drive line end module Installation instruction RWA - Control Unit EMB 7300...
  • Page 14 1 2 3 4 5 6 7 8 9 10 11 OUT+ Install R E in the last detector of the line! COM- OUT+ max. 10 units max. 400 m Breakglass unit Indicators Buttons Installation instruction RWA - Control Unit EMB 7300...

  • Page 15: Control Indicators

    1,5 mm (RD) = off Wind sensor 1 2 3 4 1 2 3 4 5 24 V 24 V Wind sensor Rain sensor Rain sensor max. 200 m min. 0,5 mm Installation instruction RWA - Control Unit EMB 7300...
  • Page 16 • functions differing from standard configuration of 1. and 2. REL 65 • network integration Reset Remove BUS connector for cable connecting! Rain Wind Length: max. 500 m (without repeater) 2-core Twisted-Pair-Free-Topology-BUS (twisted copper line) Installation instruction RWA - Control Unit EMB 7300...

  • Page 17: Connecting Power Supply

    Steel Colour: RAL 9016 (white) Suitable for: EMB 7300 2,5 A EMB 7300 Connecting power supply: Version EMB 7300 2,5A-0101, EMB 7300 2,5A-0101-T 225 mm 2,5 A On the version with front-mounted push button the connector may be removed! Cover...
  • Page 18 Ensure correct polarity when connecting! 2 x back-up accumulator 2,3 Ah 12V = blue = red Connecting power supply: Version EMB 7300 10A-0101, EMB 7300 10A-0102, EMB 7300 20A-0102 10 A 20 A Routing via external fuse and switching component!

  • Page 19: System Requirements

    A HELP-function provides all necessary information. Internet connection for system installation and updates. The Central EMB 7300 was tested in the default setting (factory setting) by VdS. Changes to the central con- figuration can only be performed by the approved in- Our software requires NET 2.0 Runtime™...
  • Page 20 In case of fire the system saves lives. Therefore immediately remedy or have any fault or mal- ARning function remedied by specialists! Installation instruction RWA - Control Unit EMB 7300...
  • Page 21 The system software offers the possibility to check the Reset system behaviour in detail. Even when contacting our support team on the phone it is helpful to have available a computer with the system software installed. Installation instruction RWA - Control Unit EMB 7300...
  • Page 22 The versions EMB 7300 5A-0102, EMB 7300 10A-0102, Since the type of fault signal into the breakglass units EMB 7300 20A-0102 have two sets of indicators and may differ from the fault indicator „S“ in the Control control elements for the drive control (LT 1 and LT 2).
  • Page 23 Wind active The service instructions for the connected components are decisive for their maintenance. Wind and rain active Operation The functionalities of the Fault external LED outputs are configurable. EMERGENCY-OPEN LED display Installation instruction RWA - Control Unit EMB 7300...
  • Page 24 Replaced accumulators contain highly toxic pollutants and may therefore only be disposed of at collection points prescribed by the legislator. Before dismantling the Control Unit separate same com- pletely from the mains! Installation instruction RWA - Control Unit EMB 7300...
  • Page 25 Installation instruction RWA - Control Unit EMB 7300...
  • Page 26 0102 OPEN CLOSE OPEN CLOSE Breakglass unit EMERGENCY- OPEN EMERGENCY- OPEN Operation Fault Smoke detectors or external fire alarm system Rain sensor Wind sensor 1. REL 65 (optional) 2. REL 65 (optional) Installation instruction RWA - Control Unit EMB 7300...

  • Page 27: Control Units

    All rights reserved in the case of a patent award or utility model registration. Basically the General Terms and Conditions of Aumüller Automatic GmbH apply to all offers, supplies and services. The publication of these assembly and commissioning instructions supersedes all previous editions. Installation instruction RWA - Control Unit EMB 7300...
  • Page 28 AUMÜLLER AUMATIC GMBH AUMÜLLER AUMATIC GMBH Tel. +49 8271 8185-0 Tel. +49 8271 8185-0 Gemeindewald 11 Gemeindewald 11 Fax +49 8271 8185-250 Fax +49 8271 8185-250 86672 Thierhaupten 86672 Thierhaupten info@aumueller-gmbh.de info@aumueller-gmbh.de www.aumueller-gmbh.de 9000017000_V0.1_KW05/14 9000007401_V2.4_KW46/20...
