Summary of Contents for Aumuller EMB 7300
- Page 1 Instructions for installation and commissioning EMB 7300 R RWa S adio yStEM...
- Page 2 Abbreviations Warning and Safety symbols Target groups, Intended use 3 - 6 Safety Instructions, Directives and Standards Data Sheet for EMB 7300 Radio RWA System Installation of the EMB 7300 Radio RWA System 8 - 10 Storage and Disassembly Disposal...
- Page 3 reliminary emarks BBREviationS Index of abbreviations Scale Units The following abbreviations are used throughout these instructions. °C Degree Celsius All units of measurement in the instructions are in mm, unless otherwise Ampere stated. General tolerances according to DIN ISO 2768-m. Ampere hour Surface mounted Kilogramme...
-
Page 4: Target Group
reliminary emarks aRgEt gRoup These instructions are intended for qualified personnel This device is not intended for use by trained in electrical engineering and skilled operators persons (including children) with limited aRning of systems for natural smoke ventilation (NRA / RWA) physical, sensory or mental abilities or (natural smoke exhaust / smoke and heat exhaust) and lack of experience and/or knowledge. -
Page 5: Safety Instructions
reliminary emarks afEty nStRuctionS It is important to follow these instruc- Cables must be laid in such a way that they tions for the safety of persons. These are not sheared off, twisted or bent during aRning instructions must be kept in a safe place operation. -
Page 6: Declaration Of Conformity
reliminary emarks The system requirements (see chapter „S Declaration of Conformity yStemS onfigura “) must be checked before installation. The The control device is manufactured and tested for its speci- tion of oftware „Software clause for the provision of standard software as fic intended use according to European guidelines. -
Page 7: Additional Equipment

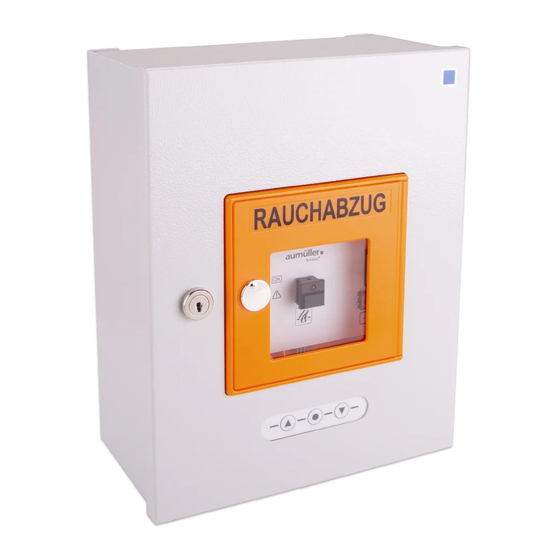

RWa S heet adio yStEM EMB 7300 Radio RWA System: Radio HSE (Transmitter) and Radio Receiver Application: The Radio HSE is used to control the EMER- GENCY OPEN and EMERGENCY CLOSE functions via a Radio Receiver in the detector line of the EMB 7300 RWA Control Unit. - Page 8 A predefined frequency group can be selected for the radio If the network option Radio SHEVs is selected under System link of the EMB 7300 Radio RWA via the 4 selection fields Properites, the following tab appears in the left-hand menu: „Radio RWA“.
- Page 9 EMB 7300 R RWa S nstalling adio yStEM nstAllIng Startup Phase on the SHE button: • After inserting the battery in the RWA button, the startup phase of the button (boot) begins. This lasts approx. 20 seconds and is completed as soon as the green und yellow LED flash simultaneously.
- Page 10 EMB 7300 R RWa S nstalling adio yStEM nstAllIng Adjustable functions Edit Push-button Here you can assign a name for each Name To edit a programmed push-button, simply left-click with push button as free text. the mouse on the desired push-button – the push-button’s editing menu opens: Hardware-bound –...
-
Page 11: S Torage And D Ismantling
torage arranty anD ustomer erviCe iability toRagE and iSMantling aRRanty and uStoMER ERvicE The Control Unit should only be stored in places protected from mois- In principle, the following applies: ture, heavy contamination and high temperatures (not above 30 °C). Do „General Terms of Delivery for Products and Services of the not remove the packaging until the control unit is ready to be installed. - Page 12 Installation Instruction Radio RWA System...
- Page 13 Installation Instruction Radio RWA System...
- Page 14 Installation Instruction Radio RWA System...
- Page 15 ERtificatE and EclaRation of onfoRMity The proof of the application of a quality management We declare that the product described under “Data system is for company: Sheet” is in compliance with the following guidelines GmbH umüller umAtIc under our sole responsibility: according to the certification basis DIN EN 9001 as well as the installation and conformity declaration are avai- •...
- Page 16 90000029201_V0.3_KW51/20...
