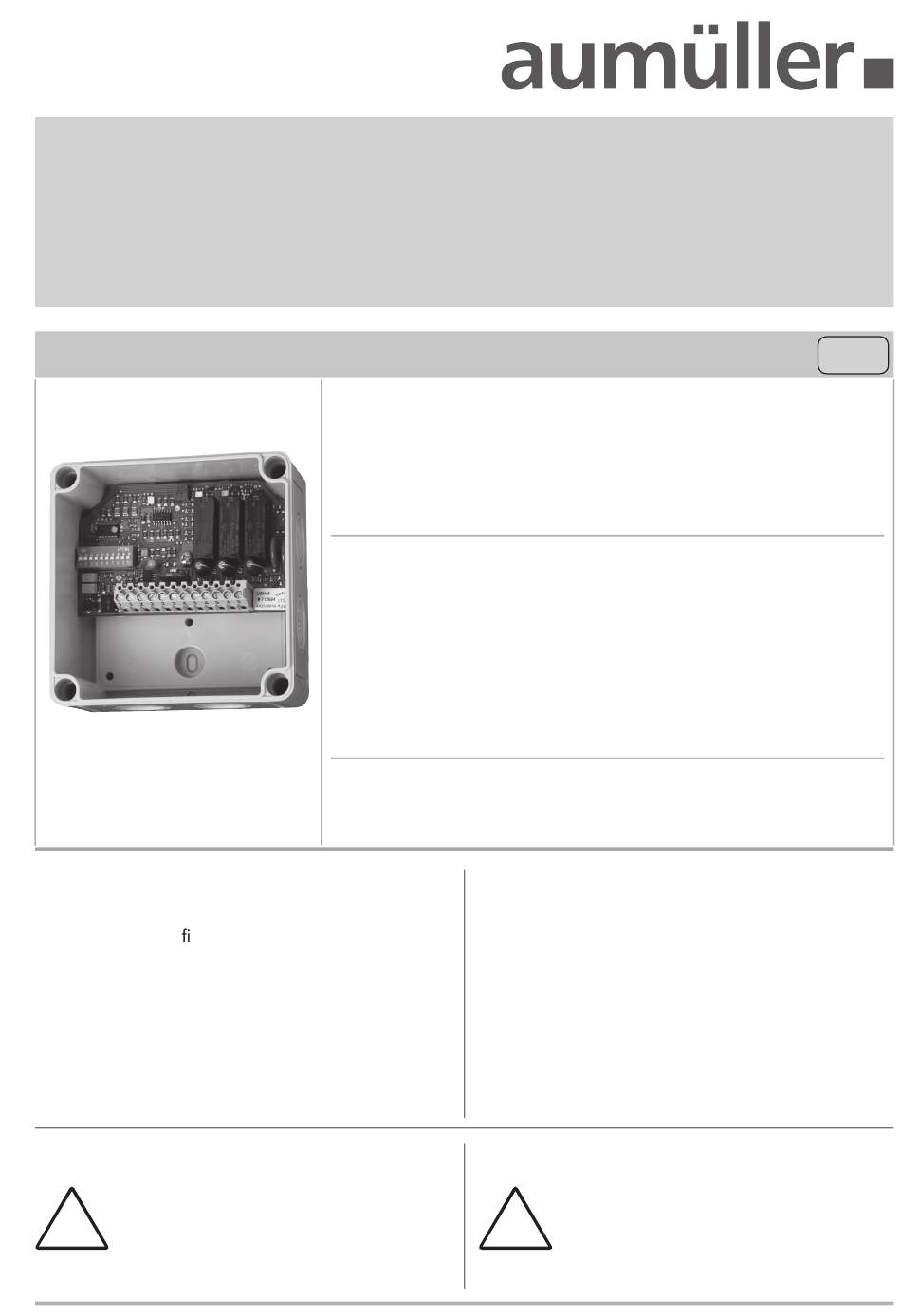

Assembly and Commissioning Instructions
USKM (Control module)
• The control module USKM allows up to 3 drives
respectively locking drives to be connected.
• The USKM is con gurable - via DIP switches - as:
- multiple control module with up to 3 drives or
- sequential control module with up to 2 locking
drives.
• The control module USKM has a post cycle locking.
• The control module USKM has a cut-off current
surveillance.
Warranty claims require proper and profes-
sional assembly, installation and maintenance
in accordance with national regulations and
!
manufacturer's instructions of the drives.
The safety instructions in the supplied pro-
duct documentation are to be observed.
USKM (Control module)
Part.-No.:
512140
Application:
Control module with 3 outputs and individual settuble cut-off
current, monitored motion run, delayed sequence control.
Functions:
external load dependent cut-off switch (max. 1,25 A),
motion-monitoring up to 3 drives / locking drives,
max. 2 sequential controls.
Rated voltage:
Close circiut current:
Connections:
Rated current per drive:
Drive type:
Protection rating:
Ambient temperature range: min. - 5 °C ... + 70 °C
Surf. mount. plastic housing: 110 x 110 x 66 mm
Feature / Equipment:
• The cut-off current of the connected drives - is individually
adjustable for each drive - via DIP switch.
• A LED indicates status and error messages.
• Several control modules USKM can be connected in a
line. The maximum output current of the control unit or
the motor line must not be exceeded.
24V DC +/- 20%, (max. 2 Vss)
< 50 mA
max. 3 drives; s < 300 mm
max. 2,5 A
S1, S2, S3, FV1, OFV1
IP54
DIP switches for settings,
connection terminals: 2,5 mm².
Strictly observe the information given in this
and in the instructions for installation of
drives when mounting the USKM.
!
Details can be found on our website
www.aumueller-gmbh.de
Keep this instruction over the lifetime of the
product.
