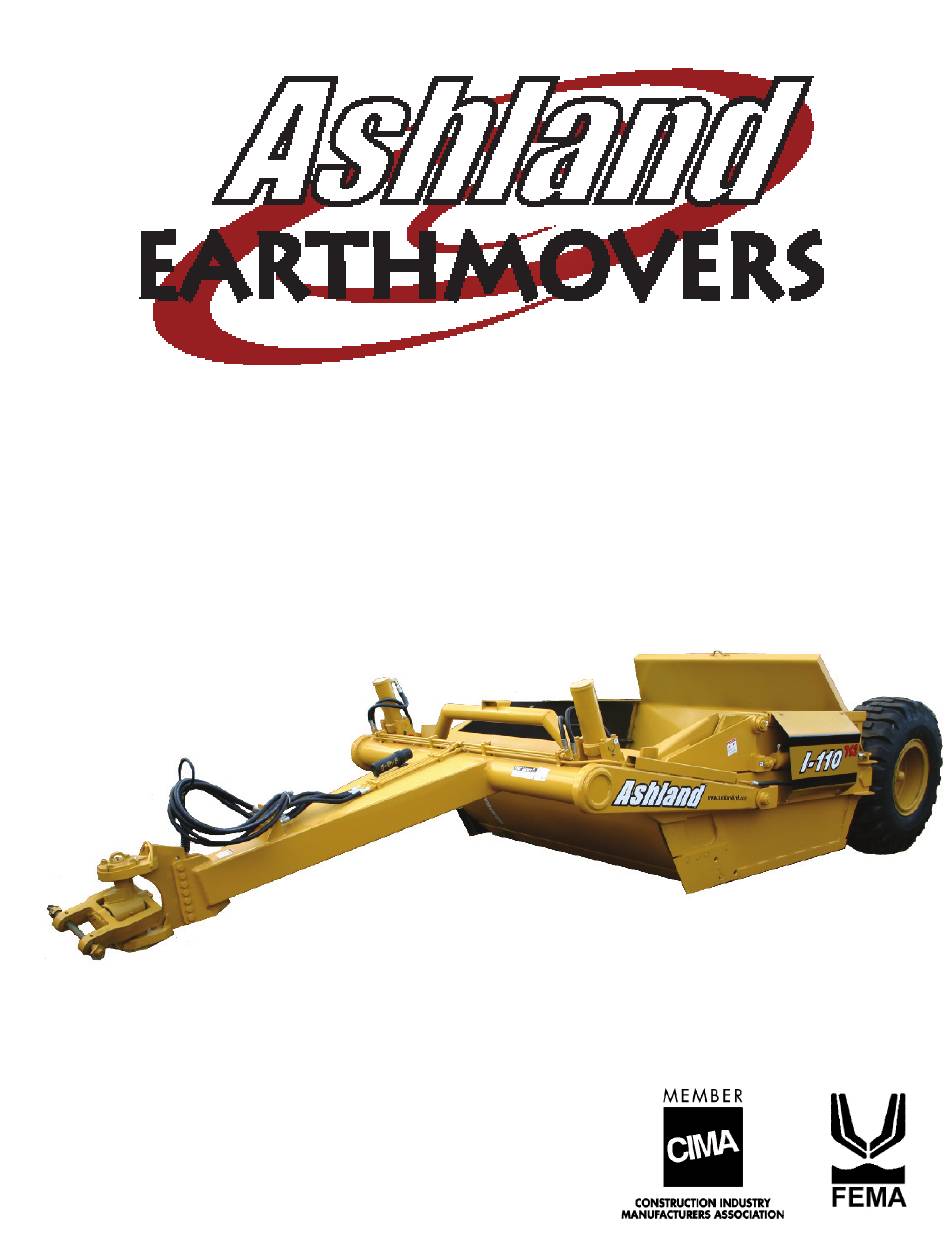

- Page 1 I-110TS2 PARTS MANUAL ver 808-22015 Ashland Industries Inc. 1115 Rail Drive P.O. Box 717 Ashland, WI. 54806 Ph: 877-634-4622 Toll Free Ph: 715-682-4622 Fx: 715-682-9717 www.ashlandind.com...
- Page 2 I-110 TS2 HOW TO ORDER PARTS: IMPORTANT Parts must be ordered through your local authorized ASHLAND dealer. Be sure to state MODEL and SERIAL NUMBER of your machine, PART NUMBER, DESCRIPTION and QUANTITY needed. Unless this is done, we cannot provide prompt service or assure shipment of the correct parts. Ashland Industries weldable replacement parts are available to rebuild, modify or update your scraper to current factory specifications.
- Page 3 I-110 TS2 SAFETY SIGNAL WORDS Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The appropriate signal word for each has been selected using the following guidelines: DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations typically for machine components which, for functional purposes, cannot be guarded.
- Page 4 I-110 TS2 OPERATORS AND MAINTENANCE INSTRUCTIONS This scraper is a durable piece of equipment and with proper care will yield many years of trouble free operation. The scraper requires a power source with TWO 4 way (double acting) hydraulic control valves. The scraper should be greased at all points where grease fittings are provided.
- Page 5 I-110 TS2 Safety-Tire Warning WARNING Check Tires and Wheels The task of servicing tires and wheels can be extremely dangerous and should be performed by trained personnel only, using the correct tools and following specific procedures. Do not attempt to mount, demount or inflate a tire if you do not have the proper equipment and experience to perform the job.
- Page 6 I-110 TS2 Swivel Hitch Assembly used on S/N 21582 and above Key Number Part Number Description A125223-01 Yoke: A-Frame A123299-07 Pin: Two Ear Drawbar To Hitch A125223-02 Swivel A125223-03 Bracket: 10 Hole A125223-04 Pin: Main Vertical A125223-05 Spacer: 6” A125223-06 Pin Horizontal A125223-07 Bushing...
- Page 7 I-110 TS2 Front End Assembly Key Number Part Number Description A123292 Front End Assembly A123456 Trunion Mount Block A14039 Bushing, 2-3/8” OD x 2” ID x 2” Long with Grease Passage" A10152A Frame Attachment Pin, 2” x 8-1/16” A123292-17 Travel Lock A125006 Safety Snap Pin AFB-00054...
- Page 8 I-110 TS2 Apron Assembly Key Number Part Number Description A123340 Apron A16027 Bushing, 2" OD X 1 1/2" ID X 2" L A123337 Pin, 1 1/2 X 5 3/8 L 7450 Nut: 3/8 NC 14505 Grease Fitting AFB-00049 Bolt 3/8 NC X 3" Page #7 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 9 I-110 TS2 Bowl & Frame Assembly Blade Bolts Required: A123331 (& Ser) PB9P-NC-088-0275 (12) A123332L & R PB9P-NC-088-0275 PB9P-NC-088-0225 A123338L & R PB9P-NC-088-0275 PB9P-NC-088-0225 Key Number Part Number Description A123302 Bowl and Frame I-110TS AFB-00094 Flange Bolt, 3/8” NC x 1” A123309-62L Apron Cylinder Guard-Left A123309-62R...
- Page 10 I-110 TS2 Push Off Gate Key Number Part Number Description A10159 Brace: (L.H. & R.H. same) AFN-00006 Nut: 3/4" NC AFB-00037 Bolt: 3/4" NC X 2" L AFW-00002 Lockwasher: 3/4" 7500 Nut: 1/2 NC A10171 Dirt Shield AFB-00019 Bolt: 1/2" X 1 1/2" NC Bolt A10160 Pushoff Gate: Model I-110 A123305A...
- Page 11 I-110 TS2 Rear Wheel, Spindle & Hub Assembly Key Number Part Number Description A14035 Wheel - 17” x 25” A14038 Lock Ring A14008 O-Ring A14015 Bearing cone A14014 Bearing Cup A14010 A14013 Bearing Cup A14012 Bearing Cone A14011 Grease Seal A10176 Stud A10046...
- Page 12 I-110 TS2 Lift Cylinder 5" x 16" Trunion Mount Key Number Part Number Description A123324-1 2-1/2” Rod A123324-2 Barrel Weldment A125159-34 1-3/4 NF Locknut A123324-4 Piston A123324-5 Gland A123324-6 Rod Seal A123324-3 Wear Band A123324-8 Wear Ring A123324-9 Piston Seal (2-pc.) A123324-10 O-ring A123324-11...
- Page 13 I-110 TS2 Apron Cylinder 4" x 13" Key Number Part Number Description A125050-01 Rod 1-3/4” with welded eye A125050-02 Piston A125050-03 "Gland, Threaded" A125050-04 Lock Nut, 1-1/8” NF A125050-05 Seal Kit, a-f A125050-05a Nylon Wear Ring A125050-05b FSP Seal A125050-05c O-Ring A125050-05d Backup Washer...
- Page 14 I-110 TS2 Push Off Cylinder Key Number Part Number Description A125176 Push Off Cylinder A125176 Barrel Weldment A125176-20 Shaft A125176-32 Spacer A125176-30 Piston A125176-31 Head A125175-33 1 1/4" Nylock Nut A125176-40 Seal Kit A125175-35 Bearing A125175-36 Snap Ring A125175-37 Grease Zerk 8602 1/4"...
- Page 15 I-110 TS2 Hydraulic Manifold Assembly IMPORTANT: This Hyd. Manifold was integrated into production April, 2006 It replaces A125070 valve. For older machines see master parts book on Ashlandind.com. HYDRAULIC MANIFOLD ASSEMBLY A125174 SETTING THE APRON AND PUSHOFF VALVE The manifold block containing the pushoff sequence valve cartridge and apron sequence valve cartridge is used to control two hydraulic circuits with one hydraulic remote.
- Page 16 I-110 TS2 Hydraulic Valve Assembly Ports Key Number Description Supply Line Pushoff Cyl. (Rod End) -Apron Cyl., Right side (Rod End)-Supply Line Pushoff Cylinder, (Base End) Apron Cylinder, Right Side, (Base End) Apron Cylinder, Left side, (Rod End) Apron Cylinder, Left Side, (Base End) CBGB Counterbalance Valve, adjustable SCGA...
- Page 17 I-110 TS2 Hydraulic Valve Seal Kit ITEM PART NO. DESCRIPTION AHA-00076 Adapter: Str. Swiv ½ MP X ½ FP. 109 Rest AHA-00043 Adapter: Str. Sw. 1 1/16 M ORB X ½ FP AHA-00048 Adapter: 90 Deg. Swiv. 1 1/16 M ORB X ½ FP AHA-00046 6 ORB Plug AHS-00153...
- Page 18 I-110 TS2 AINTENANCE HECKLIST 1. Grease all zerks. Every 8 hours of operation. See Lubrication Points section on next page. 2. Greasing the hubs. Re-pack wheel bearings after 600 hrs of operation. Completely clean grease out of hub and bearings every 1200 hours of operation. 3.
- Page 19 I-110 TS2 TORQUE SPECIFICATIONS Bolt Torque Diameter Ft-lbs 5/16” 3/8” 7/16” ½” 9/16” 5/8” ¾” 7/8” 1” 1-1/8” 1280 Lug Nuts LUBRICATION 1. Grease all zerks every 8 hrs of operation with high quality, general-purpose grease. Grease until grease flows from around pin. Lubrication Points (see Ill.) 1.
- Page 20 I-110 TS2 Grease Locations Description Grease Twice a Day Page #19 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 21 I-110 TS2 PUSHING THE EARTHMOVER The I-110TS was designed to be pushed when equipped with the optional push-bar. However, Ashland Industries, Inc. STRONGLY recommends using extreme caution when pushing the I-110TS earthmover to prevent any unnecessary damage. CAUTION! The I-110TS earthmover must be pushed in a straight line with a maximum of a 100 hp dozer.
- Page 22 I-110 TS2 TROUBLESHOOTING Introduction With proper care and maintenance, the I-110TS will give many years of reliable service. When a situation arises where the earthmover performance is not satisfactory, this section will give some pointers on finding and correcting the problem. Grease zerk will not take grease.
- Page 23 I-110 TS2 Warranty Statement Limited Warranty Statement Ashland Industries Inc. warrants each new product to be free from defects in material and workmanship. This warranty is applicable only for the normal service life expectancy of the product or components, not to exceed six consecutive months from the date of delivery of the new Ashland Industries product to the purchaser, or the date the product is first put into service via a rental agreement or other means, whichever occurs first.
