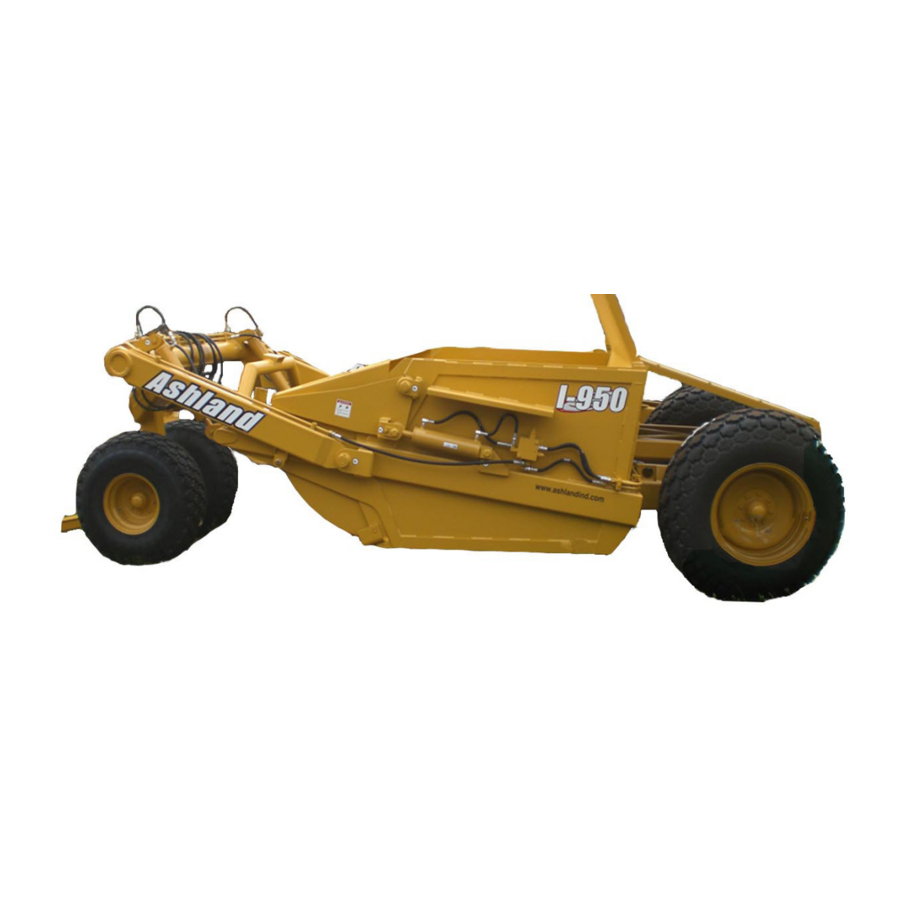

- Page 1 I-950 PARTS MANUAL Ver. 0610 Ashland Industries Inc. 1115 Rail Drive P.O. Box 717 Ashland, WI. 54806 Ph: 877-634-4622 Toll Free Ph: 715-682-4622 Fx: 715-682-9717 www.ashlandind.com...
-
Page 2: Ashland Scrapers
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS WELCOME TO OUR NEW CUSTOMERS! Thank you for your purchase of an Ashland scraper and the confidence you have placed in us to handle your earthmoving projects. Years of research, testing and successful application have been spent to ensure quality and maximum performance for our customers. - Page 3 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS HOW TO ORDER PARTS: IMPORTANT Parts must be ordered through your local authorized ASHLAND dealer. Be sure to state MODEL and SERIAL NUMBER of your machine, PART NUMBER, DESCRIPTION and QUANTITY needed. Unless this is done, we cannot provide prompt service or assure shipment of the correct parts. Ashland Industries weldable replacement parts are available to rebuild, modify or update your scraper to current factory specifications.
- Page 4 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Safety Guidelines GENERAL SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
- Page 5 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Page #4 Ashland , WI 54806 P.O. Box 717 1115 Rail Dr...
- Page 6 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Gooseneck Frame (950) PART DESCRIPTION REMARKS 600104 Gooseneck Frame (950) 8110 Lock washer 5/8" 7536 Nut, 5/8" NF A90004 Cast Socket half, rear A90005 Cast Socket half, front with zerk hole A2206 Grease Zerk, Long Shank AFB-00043 Bolt, 5/8"...
- Page 7 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Apron (950) PART DESCRIPTION SN 950 600125 Apron 22395-XXXXX A123343 Bushing: 2" OD X 1 1/2 ID X 1 3/4 L 22395-XXXXX A123337 Pin: 1 1/2" X 5 3/8" L 22395-XXXXX 7450 Nut: 3/8 NC 14505 Grease Fitting AFB-00049...
-
Page 8: Bowl & Frame (950)
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Bowl & Frame (950) PART DESCRIPTION SN 950 REMARKS A9055 Bowl and Frame A8062 Pin, 1-1/4" x 7" AFP-00001 Cotter Pin, 3/16" X 1 3/4" A123363 Pin: 1 1/2 X 4 1/8" Apron Cylinder Base End Pin 22395-XXXXX AFB-00054 Bolt: 1/2"... - Page 9 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Push Off (950) PART DESCRIPTION REMARKS A10008 Shoulder Pin, 1 5/8" to 1 1/4" with zerk in threased end A123306 Roller, gate rear with flange type AFN-00024 Jam Nut, 1 1/4" NF 14505 Grease Fitting, 1/8"...
- Page 10 PHONE : 715-682-4622 Fax: 715-682-9717 Pole & Axle Assembly (950) PART DESCRIPTION REMARKS A10033A Single Lip Hitch 14505 Grease Fitting, 1/8 NPT A9059 Pole AFP-00002 Cotter Pin, 3/16" X 1 3/4" AFN-00010 Nut, castellated, 1 1/4" NF A8027 Washer, special, 1 1/4" flat AFB-00005 Bolt, 3/4"...
- Page 11 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Pole & Axle Assembly (950) PART DESCRIPTION REMARKS A8022 Bearing Cup, inner A8023 A4519 Wheel Bolt, 9/16" NF A8024 Bearing Cup, outer A8025 Bearing Cone, outer A8027 Spindle washer, special AFN-00005 Spindle Nut AFP-00002 Cotter Pin, 3/16"...
- Page 12 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Wheel - Rear (950) PART DESCRIPTION REMARKS A9060 Spindle, Rear with flange base plate A8020 Grease Seal (CR 35062) A9061 Bearing Cone, inner A8022 Bearing Cup, inner A8023 A4519 Wheel Bolt, 9/16" NF A8024 Bearing Cup, outer A8025...
-
Page 13: Cylinder - Lift (#A416H118) 4" X 16
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Cylinder - Lift (#A416H118) 4" X 16" PART DESCRIPTION REMARKS A45H04 Barrel Assembly A300H11 Head Gland A300H13 Head Cap A22H18 Capscrew, 1/4" x 1" AFP-00003 Cotter Pin, 3/16" X 1 1/2" A300H03 Piston Nut A300H07 Piston, 4"... - Page 14 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Cylinder - Apron (#A125050) 4" X 13" PART DESCRIPTION SN 950 REMARKS A125050 Apron Cylinder 22395-XXXXX A125050-01 Rod 1-3/4” with welded eye A125050-02 Piston A125050-03 Gland, Threaded A125050-04 Lock Nut, 1-1/8” NF A123351 Pin Keeper Bushing AFB-00019 1/2"...
-
Page 15: Cylinder - Push Off (#A125111) 4
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Cylinder - Push Off (#A125111) 4" x 50" PART DESCRIPTION SN 950 REMARKS A125111 Push Off Cylinder 21266-XXXXX A123424 Barrel Assembly A123425 Head Gland A123426 Collar A8062 Pin, 1-1/4" x 7" A400H17 Piston Nut, 1-1/4" NF A80H27 Piston A90H26... - Page 16 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Parts - Hydraulic Manifold (#A125174) PART DESCRIPTION A125162-02 Pushoff Sequence Cartridge A125162-01 Counter Balance Cartridge SETTING THE APRON AND PUSHOFF VALVE The manifold block containing the pushoff sequence valve cartridge and apron sequence valve cartridge is used to control two hydraulic circuits with one hydraulic remote.
-
Page 17: Hydraulic Valve Ports
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Hydraulic Valve Ports PART DESCRIPTION REMARKS Supply Line Pushoff Cyl. (Rod End)-Apron Cyl., Right side (Rod end)-Supply Line Pushoff Cylinder, (Base End) Apron Cylinder, Right side, (Base End) Apron Cylinder, Left side, (Rod End) Apron Cylinder, Left side, (Base End) CBGB Counterbalance Valve, adjustable... -
Page 18: Hydraulic Valve Seals
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Hydraulic Valve Seals PART DESCRIPTION REMARKS AHA-00076 Adapter: Str. Swiv 1/2 MP X 1/2 FP, 109 Rest. AHA-00043 Adapter: Str. Sw. 1 1/16 M ORB X 1/2 FP AHA-00048 Adapter: 90 Deg. Swiv. 1 1/6 M ORB X 1/2 FP AHA-00046 6 ORB Plug AHS-00153... - Page 19 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Parts - Hydraulic Plumbing Front (950) PART DESCRIPTION REMARKS AHA-00019 Adapter: 90 Deg. 3/4 MJ X 3/4 MJ AHA-00022 Adapter: T 3/4 MJ X 3/4 MJ X 3/4 MJ A125063 Tube Assembly: 3/4" X 32 3/4" A125064 Tube Assembly: 3/4"...
-
Page 20: Parts - Hydraulic Plumbing Rear ((950)
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Parts - Hydraulic Plumbing Rear ((950) PART DESCRIPTION SN 950 REMARKS AHA-00022 Adapter: T 3/4 MJ X 3/4 MJ X 3/4 MJ AHA-00049 Adapter: T 3/4 MJ X 3/4 MJ X 3/4 FJ Swiv. AHA-00019 Adapter: 90 Deg. - Page 21 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Parts - Hydraulic Hoses (950) PART DESCRIPTION SN 950 REMARKS A900-H12 Hose Assembly: 1/2" x 19-1/2" Lift Cyl. Base End Port A900-H11 Hose Assembly: 1/2" x 25" Lift Cyl. Rod End Port A125324 Hose Assembly: 1/2 X 51 1/2"...
- Page 22 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Parts - Decals PART DESCRIPTION ADS-00001 Large Ashland ADS-00002 Small Ashland ADS-00037 I-950 ADS-00019 Grease 750464 High Pressure Fluid Hazard ADS-00011 Pinch Point Page #21 Ashland , WI 54806 P.O. Box 717 1115 Rail Dr...
- Page 23 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Service: Operators and Maintenance Instructions This scraper is a durable piece of equipment and with proper care will yield many years of trouble free operation. The scraper requires a power source with TWO 4 way (double acting) hydraulic control valves.
- Page 24 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Service: Maintenance Check list 1. Grease all zerks. Every 8 hours of operation. 2. Greasing the hubs. Re-pack wheel bearings after 600 hrs of operation. Completely clean grease out of hub and bearings every 1200 hours of operation. 3.
- Page 25 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Service: Torque Specifications Bolt Torque Diameter Ft-lbs 5/16” 3/8” 7/16” ½” 9/16” 5/8” ¾” 7/8” 1” 1-1/8” 1280 Lug Nuts LUBRICATION 1. Grease all zerks every 8 hrs of operation with high quality, general-purpose grease. a) Grease until grease flows from around pin.
-
Page 26: Service: Troubleshooting
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Service: Troubleshooting Introduction With proper care and maintenance, your scraper will give many years of reliable service. When a situation arises where the earthmover performance is not satisfactory, this section will give some pointers on finding and correcting the problem. - Page 27 PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Service: Tire The task of servicing tires and wheels can be extremely dangerous and should be performed by trained personnel only, using the correct tools and following specific procedures. Do not attempt to mount, demount or inflate a tire if you do not have the proper equipment and experience to perform the job.
-
Page 28: Service: Warranty Statement
PHONE : 715-682-4622 Fax: 715-682-9717 ASHLAND SCRAPERS Service: Warranty Statement Ashland Industries Inc. warrants each new product to be free from defects in material and workmanship. This warranty is applicable only for the normal service life expectancy of the product or components, not to exceed six consecutive months from the date of delivery of the new Ashland Industries product to the purchaser, or the date the product is first put into service via a rental agreement or other means, whichever occurs first. -
Page 30: Service: Maintenance Check List
Table of Contents Categorized Listing ASHLAND SCRAPERS Safety Guidelines Gooseneck Frame (950) Apron (950) Bowl & Frame (950) Push Off (950) Pole & Axle Assembly (950) Wheel - Rear (950) Cylinder - Lift (#A416H118) 4" X 16" Cylinder - Apron (#A125050) 4" X 13" Cylinder - Push Off (#A125111) 4"... -
Page 32: Table Of Contents
Table of Contents Apron (950) ASHLAND SCRAPERS 1-27 Bowl & Frame (950) Cylinder - Apron (#A125050) 4" X 13" Cylinder - Lift (#A416H118) 4" X 16" Cylinder - Push Off (#A125111) 4" x Gooseneck Frame (950) Hydraulic Valve Ports Hydraulic Valve Seals Parts - Decals Parts - Hydraulic Hoses (950) Parts - Hydraulic Manifold (#A125174)
