Ashland Earthmovers I-155-TS2 Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

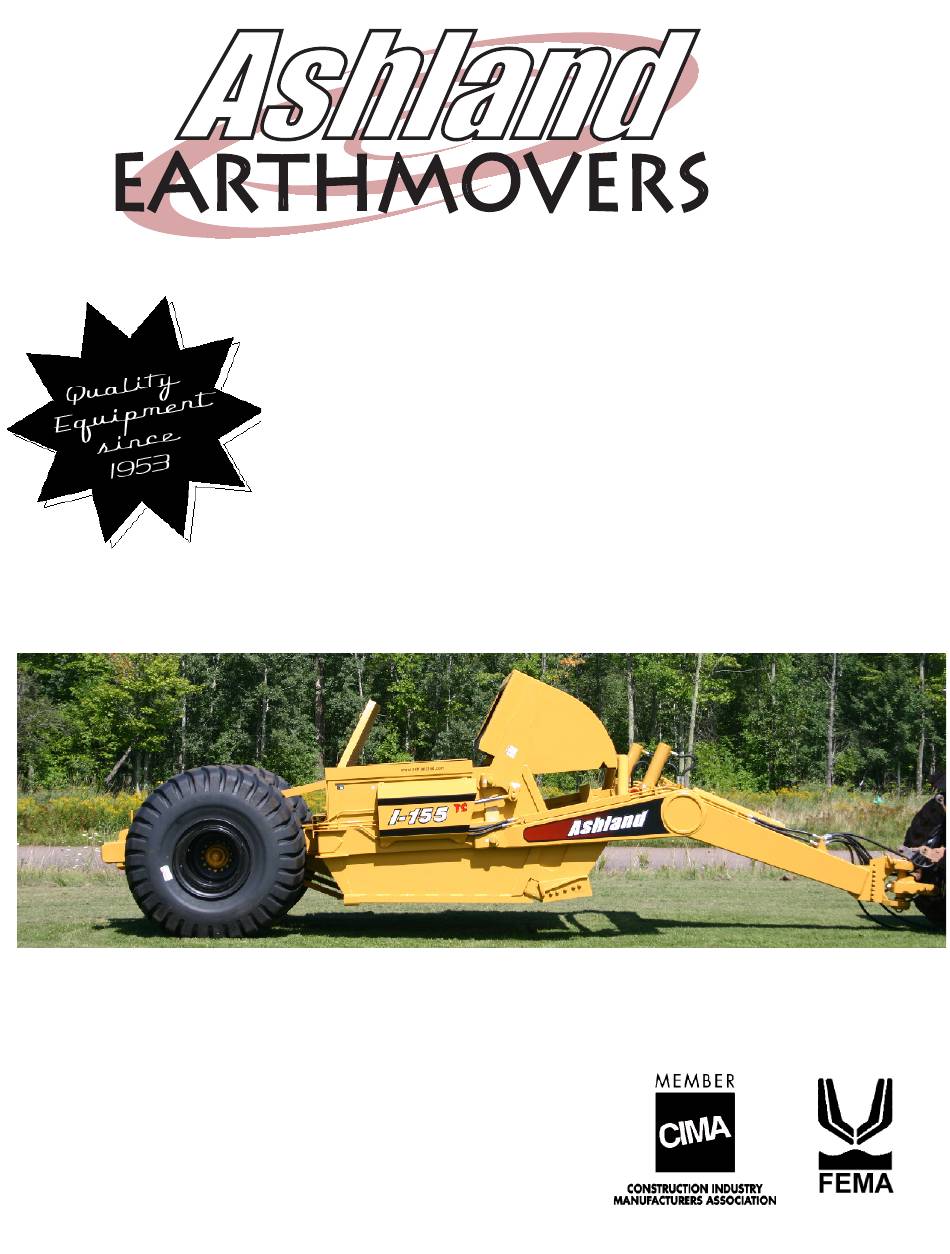

EARTHMOVERS
I-155-TS2
PARTS MANUAL
ver 1008
Ashland Industries Inc.
1115 Rail Drive
P.O. Box 717
Ashland, WI. 54806
877-634-4622 Toll Free - phone
715-682-4622 phone
715-682-9717 fax
www.ashlandind.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-155-TS2 and is the answer not in the manual?

Questions and answers

Related Manuals for Ashland Earthmovers I-155-TS2

Summary of Contents for Ashland Earthmovers I-155-TS2

  • Page 1 EARTHMOVERS I-155-TS2 PARTS MANUAL ver 1008 Ashland Industries Inc. 1115 Rail Drive P.O. Box 717 Ashland, WI. 54806 877-634-4622 Toll Free - phone 715-682-4622 phone 715-682-9717 fax www.ashlandind.com...

  • Page 2: How To Order Parts

    I-155 TS2 How to Order Parts HOW TO ORDER PARTS: IMPORTANT Parts must be ordered through your local authorized ASHLAND dealer. Be sure to state MODEL and SERIAL NUMBER of your machine, PART NUMBER, DESCRIPTION and QUANTITY needed. Unless this is done, we cannot provide prompt service or assure shipment of the correct parts. Ashland Industries weldable replacement parts are available to rebuild, modify or update your scraper to current factory specifications.

  • Page 3: Safety Guidelines

    I-155 TS2 Safety Guidelines SAFETY SIGNAL WORDS Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The appropriate signal word for each has been selected using the following guidelines: DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations typically for machine components which, for functional purposes, cannot be guarded.
  • Page 4 I-155 TS2 Operators and Maintenance Instructions OPERATORS AND MAINTENANCE INSTRUCTIONS This scraper is a durable piece of equipment and with proper care will yield many years of trouble free operation. The scraper requires a power source with TWO 4 way (double acting) hydraulic control valves.

  • Page 5: Transport Locks

    I-155 TS2 Transport Locks Key Number Part Number Description A125006 Pin, Safety Snap Pin A123309-83 Link, Transport Lock, Red Page #4 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
  • Page 6 I-155 TS2 Swivel Hitch Assembly Part Number A125223 Key Number Part Number Description A125223-01 Yoke: A-Frame A125223-02 Swivel A125223-03 Bracket: 10 Hole A125223-04 Pin: Main Vertical A125223-05 Spacer: 6” A125223-06 Pin Horizontal A125223-07 Bushing A125223-08 Seal: O-ring A125223-09 Seal: O-ring AFH-00028 Grease Fitting: 90°...
  • Page 7 I-155 TS2 Icon Swivel Hitch (Optional) Part Number A125224 Key Number Part Number Description A125224-01 Yoke: A-Frame swivel A125224-03 Bracket: 10 Hole A125224-04 Pin: Main Vertical A125224-05 Spacer: 6” A125224-07 Bushing A125224-08 Seal: O-ring A125224-09 Seal: O-ring A125224-10 O-ring A125224-13 Spacer: 6”...
  • Page 8 I-155 TS2 Apron Assembly Key Number Part Number Description A123310A Apron Model I-155 TS A16027 Bushing: 2” OD x 1-1/2” ID x 2” Long A123337 Pin: 1-1/2” x 5-3/8” 7450 Nut: 3/8” NC AFB-00049 Bolt: 3/8” NC x 3” Page #7 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
  • Page 9 I-155 TS2 FRONT END (s.n. 20412 and up) Key Number Part Number Description A123329 Front End Assembly A123320-08 Bronze Bushing: 3"ID X 3 1/2 OD X 3"L A123456 Trunion Mount Block AFB-00039 Bolts, 3/4" X 5 1/2" AFW-00002 Lockwasher, 3/4" A123321-09 Pin: Main Frame Attachment A125179...
  • Page 10 I-155 TS2 Bowl & Frame Assembly Blade Bolts Required: Bolts A123330 (& Ser) PB9P-NC-088-0275 (12) AFN-00019 A123332L & R PB9P-NC-088-0275 AFN-00019 PB9P-NC-088-0225 A123357 AFB-00018 AFN-00012 Key Number Part Number Description A123309 Bowl and Frame, Model I-155 AFB-00094 Flanged Bolt: 3/8 NC X 1” A123309-62L Cylinder Guard - Left Hand A123309-62R...
  • Page 11 I-155 TS2 Pushoff Gate Assembly Key Number Part Number Description A14022 Brace AFN-00006 Nut: 3/4” NC AFB-00037 Bolt: 3/4” NC x 2” Lg. AFW-00002 Lockwasher: 3/4” 8100 Lockwasher: 1/2” AFN-00015 Nut: 1/2” NC A14023 Dirt Shield AFB-00015 Bolt: 1/2” NC x 1-1/2” A16024 Pushoff Gate: Model I-150 A123353...
  • Page 12 I-155 TS2 REAR WHEEL and HUB ASSEMBLY - 7 Hole Spindle Key Number Part Number Description AFB-00080 Bolt 5/16” NC x 1/2” Lg. A14004 Hub Cap A12036 Wheel Ass’y. 25” x 25” A12036-1 Center Dish Weldment, Flat A12036-2 Six Gussets for Center Dish A12041 Side Ring A12042...
  • Page 13 I-155 TS2 Apron Cylinder 4 x13 Key Number Part Number Description A125050-01 Rod 1-3/4” with welded eye A125050-02 Piston A125050-03 Gland, Threaded A125050-04 Lock Nut, 1-1/8” NF A125050-05 Seal Kit, a-f A125050-05a Nylon Wear Ring A125050-05b FSP Seal A125050-05c O-Ring A125050-05d Backup Washer A125050-05e...
  • Page 14 I-155 TS2 LIFT CYLINDER 5 X 20 Key Number Part Number Description A123326-1 Piston Rod: 2-1/2” A123326-2 Barrel Weldment A125159-34 1-3/4 NF Locknut A123324-4 Piston A123324-5 Gland A123324-6 Rod Seal A123324-3 Wear Band A123324-8 Wear Ring A123324-9 Piston Seal A123324-10 O-Ring A123324-11 O-Ring...
  • Page 15 I-155 TS2 PUSHOFF CYLINDER 5 X 60 Part No. A125177 Key Number Part Number Description A125177-10 Barrel Weldment A125177-20 Shaft A125177-30 Piston A125177-31 Head A125176-32 Spacer A125175-33 1 1/4” Nylock Nut A125177-40 Seal Kit A125175-35 Bearing A125175-36 Snap Ring A125175-37 Grease Zerk A9024 Pin 1-1/4 x 4-3/4 Lg...
  • Page 16 I-155 TS2 Nitrogen over Hydraulic Accumlator This accumulator is rated at 4,000 psi and is pre-charged at the plant at 2,800 psi. any circuit pressure above 2,800 will bleed off into this accumulator until it reaches 2.11 gallons of hydraulic oil displacement. This accumulator can be recharged with nitrogen however the accumulator is NOT REBUILDABLE.
  • Page 17 I-155 TS2 Decals Key Number Part Number Description ADS-00003 Decal Blade Wedge, Gradient ADS-00001 Decal Ashland Logo, Large ADS-00011 Decal Pinch Point, ADS-00004 Decal I-155 Numerals only ADS-00005 Decal “TS” ADS-STRIPEKIT Decal Stripes A123286 Decal Apron opening ADS-00015 Decal “when pulling in tandem" 750464 Decal “...

  • Page 18: Hydraulic Manifold Assembly

    I-155 TS2 Hydraulic Manifold Assembly IMPORTANT: This Hyd. Manifold was intergrated into production April, 2006 It replaces A125070 valve. For older machines see master parts book on Ashlandind.com. HYDRAULIC MANIFOLD ASSEMBLY A125174 SETTING THE APRON AND PUSHOFF VALVE The manifold block containing the pushoff sequence valve cartridge and apron sequence valve cartridge is used to control two hydraulic circuits with one hydraulic remote.
  • Page 19 I-155 TS2 Hydraulic Valve Assembly Ports Key Number Description Supply Line Pushoff Cyl. (Rod End)-Apron Cyl., Right side (Rod End)-Supply Line Pushoff Cylinder (Base End) Apron Cylinder, Right side, (Base End) Apron Cylinder, Left side, (Base End) Apron Cylinder, Left side, (Base End) CBGB Counterbalance Valve, adjustable SCGA...
  • Page 20 I-155 TS2 Hydraulic Valve Seals ITEM PART NO. DESCRIPTION AHA-00076 Adapter: Str. Swiv ½ MP X ½ FP. 109 Rest AHA-00043 Adapter: Str. Sw. 1 1/16 M ORB X ½ FP AHA-00048 Adapter: 90 Deg. Swiv. 1 1/16 M ORB X ½ FP AHA-00046 6 ORB Plug AHS-00153...

  • Page 21: Maintenance Checklist

    I-155 TS2 AINTENANCE HECKLIST 1. Grease all zerks. Every 8 hours of operation. See Lubrication Points section on next page. 2. Greasing the hubs. Re-pack wheel bearings after 600 hrs of operation. Completely clean grease out of hub and bearings every 1200 hours of operation. 3.

  • Page 22: Torque Specifications

    I-155 TS2 TORQUE SPECIFICATIONS Bolt Torque Diameter Ft-lbs 5/16” 3/8” 7/16” ½” 9/16” 5/8” ¾” 7/8” 1” 1-1/8” 1280 Lug Nuts LUBRICATION 1. Grease all zerks every 8 hrs of operation with high quality, general-purpose grease. Grease until grease flows from around pin. Lubrication Points (see Ill.) 1.
  • Page 23 I-155 TS2 PUSHING THE EARTHMOVER The I-155TS was designed to be pushed when equipped with the optional push-bar. However, Ashland Industries, Inc. STRONGLY recommends using extreme caution when pushing the I-155TS earthmover to prevent any unnecessary damage. CAUTION! The I-155TS earthmover must be pushed in a straight line with a maximum of a 100 hp dozer.

  • Page 24: Troubleshooting

    I-155 TS2 TROUBLESHOOTING Introduction With proper care and maintenance, the I-110TS will give many years of reliable service. When a situation arises where the earthmover performance is not satisfactory, this section will give some pointers on finding and correcting the problem. Grease zerk will not take grease.

  • Page 25: Limited Warranty Statement

    I-155 TS2 Warrantee Statement Limited Warranty Statement Ashland Industries Inc. warrants each new product to be free from defects in material and workmanship. This warranty is applicable only for the normal service life expectancy of the product or components, not to exceed six consecutive months from the date of delivery of the new Ashland Industries product to the purchaser, or the date the product is first put into service via a rental agreement or other means, whichever occurs first.
