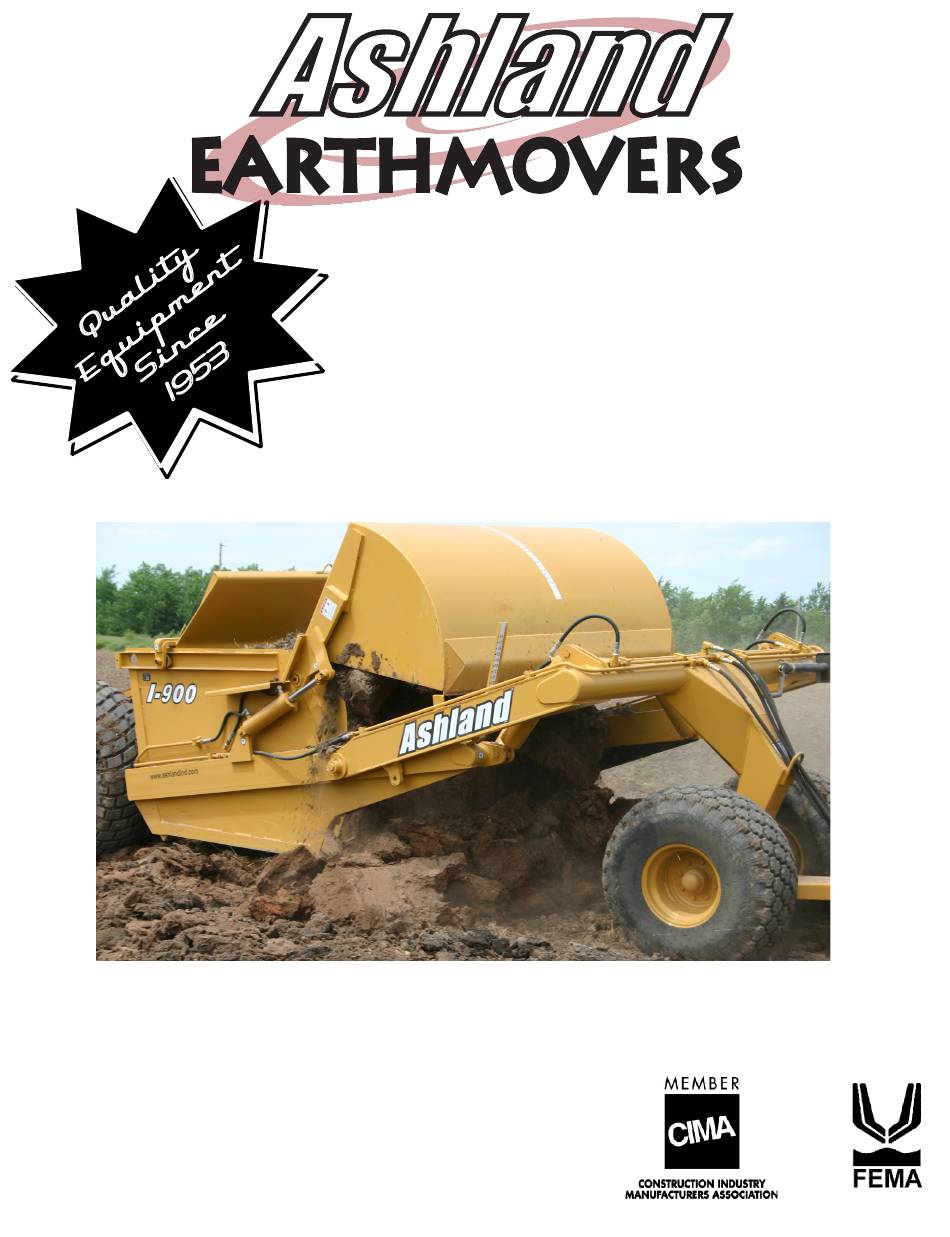

- Page 1 EARTHMOVERS I-900 ver 9-06 Ashland Industries Inc. 1115 Rail Drive P.O. Box 717 Ashland, WI. 54806 Ph: 877-634-4622 Toll Free Ph: 715-682-4622 Fx: 715-682-9717 www.ashlandind.com...
-
Page 2: How To Order Parts
Model I-900 Scraper EARTHMOVERS HOW TO ORDER PARTS: IMPORTANT Parts must be ordered through your local authorized ASHLAND dealer. Be sure to state MODEL and SERIAL NUMBER of your machine, PART NUMBER, DESCRIPTION and QUANTITY needed. Unless this is done, we cannot provide prompt service or assure shipment of the correct parts. -
Page 3: Safety Signal Words
SAFETY SIGNAL WORDS Note the use of the signal words DANGER, WARNING and CAUTION with the safety mes- sages. The appropriate signal word for each has been selected using the following guide- lines: DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. - Page 4 OPERATORS AND MAINTENANCE INSTRUCTIONS This scraper is a durable piece of equipment and with proper care will yield many years of trouble free operation. The scraper requires a power source with TWO 4 way (double acting) hydraulic control valves. The scraper should be greased at all points where grease fittings are provided. Connect hydraulic hoses to the tractor and retract lift cylinders to REMOVE TRANSPORT LOCK PINS (point A), then extend and retract all cylinders several times to force out any air from the hydraulic cylinders and lines.
- Page 5 Illustration Assembly...
- Page 6 KEY NO. PART NO. DESCRIPTION A9057 Gooseneck Frame 8110 Lock washer, 5/8” 7530 Nut, 5/8” NC A90004 Cast socket half, rear A90005 Cast socket half, front w/ zerk hole A2206 Grease zerk, long shank AFB-00002 Bolt, 5/8” NC x 4” OPT-00001 Hitch Jack 14505...
- Page 7 KEY NO. PART NO. DESCRIPTION A8060 Apron AFN-00009 Self locking nut, 1-1/4” A6010 Shoulder pin, 1-5/8” to 1-1/4” with zerk in head 14505 Grease fitting A10155 Bushing, 1” ID x 1-1/2” OD x 1-1/8” long steel...
- Page 8 KEY NO. PART NO. DESCRIPTION A9055 Bowl and Frame A8062 Pin, 1-1/4” x 7” AFP-00002 Cotter pin, 3/16” x 1-3/4” A1217 Pin, 1” x 3-1/2” AFB-00054 Bolt, 1/2” NC x 3-1/2” A8056 Pin, 1-3/4” x 7-3/4” AFN-00011 Nut, 1/2” NC A10168 Pin, 1-1/8”...
- Page 9 KEY NO. PART NO. DESCRIPTION A10008 Shoulder pin, 1-5/8” to 1-1/4” with zerk in threaded end A10162 Bushing, 2” OD x 1-5/8” ID x 1-1/2” (No bushing with Roller A123306) A123306 Roller, gate rear with flange type (for models made after Jan 1, 2000;...
- Page 10 KEY NO. PART NO. DESCRIPTION A10033A Single lip hitch 14505 Grease fitting, 1/8” NPT A9059 Pole AFP-00002 Cotter Pin, 3/16” x 1-3/4” AFN-00010 Nut, castellated, 1-1/4” NF A8027 Washer, special, 1-1/4” flat AFB-00005 Bolt, 3/4” NC x 2-1/2” long A40006 Ball swivel AFB-00068 Bolt, 5/16”...
- Page 11 KEY NO. PART NO. DESCRIPTION A9060 Spindle, Rear with flange base plate, s.n. 17908 above A8020 Grease seal ( CR 35062 ) A9061 Bearing cone, inner s.n. 17908 above (Timken 39585) A8022 Bearing cup, inner ( Timken 39520 ) A8023 A4519 Wheel bolt, 9/16”...
- Page 12 KEY NO. PART NO. DESCRIPTION A45H04 Barrel Assembly A300H06 O-ring, 4” OD x 3/16” A300H11 Head gland A300H12 Retainer ring A22H15 O-ring, 1-1/2” ID x 1/8” A22H15A Backup washer A300H13 Head cap A22H18 Capscrew, 1/4” x 1” A22H17 Wiper seal, 1-1/2” ID AFP-00003 Cotter pin, 3/16”...
- Page 13 RIGHT SIDE ONLY UP TO S/N 20395 LEFT & RIGHT SIDE FROM S/N 20396 UP KEY NO. PART NO. DESCRIPTION A12H04 Barrel A22H08 O-ring, 3-1/2” OD A22H13 Head gland A22H14 Retainer ring A22H15 O-ring, 1-1/2” ID x 1/8” thickness A22H15A Backup washer A22H16 Head cap...
- Page 14 SN: 1 AND EARILER KEY NO. PART NO. DESCRIPTION A90H25 Barrel Assembly A80H22 Clamp ring A80H23 Retainer ring A80H24 O-ring, 4” OD x 1/8” A400H12 O-ring, 2” ID A400H12A Backup washer A80H25 Head gland A80H06 Wiper seal, 2” ID AFB-00009 Bolt, 1/2”...
- Page 15 SN: 1 AND LATER KEY NO. PART NO. DESCRIPTION A123424 Barrel Assembly A123426 Gland Cap A8062 Pin, 1-1/4” X 7” A80H24 O-ring, 4” OD x 1/8” A400H12 O-ring, 2” ID A400H12A Backup washer A123425 Head gland A80H06 Wiper seal, 2” ID A400H17 Piston nut, 1-1/4”...
- Page 16 Behind A...
- Page 19 PARTS LIST - HYDRAULIC PLUMBING: I-900 ITEM No. PART No. DESCRIPTION A125070 HYDRAULIC MANIFOLD ASSEMBLY A125058 HYD. TUBING, BEHIND BOWL, AROUND SIDES A125062 HYD. TUBING, BEHIND BOWL, LEFT SIDE A125061 HYD. TUBING, BEHIND BOWL, LEFT SIDE A155H21 HYD. TUBING, BEHIND BOWL, CENTER A125060 HYD. TUBING, BEHIND BOWL, RIGHT SIDE A125064 HYD. TUBING, GOOSENECK, STRAIGHT PIECE A125063 HYD. TUBING, GOOSENECK, STRAIGHT PIECE A125059R HYD. TUBING, GOOSE NECK ARM, RIGHT SIDE A125059L HYD. TUBING, GOOSE NECK ARM, LEFT SIDE A900-H01 1/2 X 23, HIGH PRESSURE HOSE A900-H02 1/2 X 17, HIGH PRESSURE HOSE A900-H03 3/4 X 18, HIGH PRESSURE HOSE A900-H04 1/2 X 44-1/2, HIGH PRESSURE HOSE A900-H05...
- Page 20 IMPORTANT: This Hyd. Manifold was intergrated into production April, 2006 It replaces A125070 valve. For older machines see master parts book on Ashlandind.com. HYDRAULIC MANIFOLD ASSEMBLY A125174 S.N. 21403 & above SETTING THE APRON AND PUSHOFF VALVE The manifold block containing the pushoff sequence valve cartridge and apron sequence valve car- tridge is used to control two hydraulic circuits with one hydraulic remote.
-
