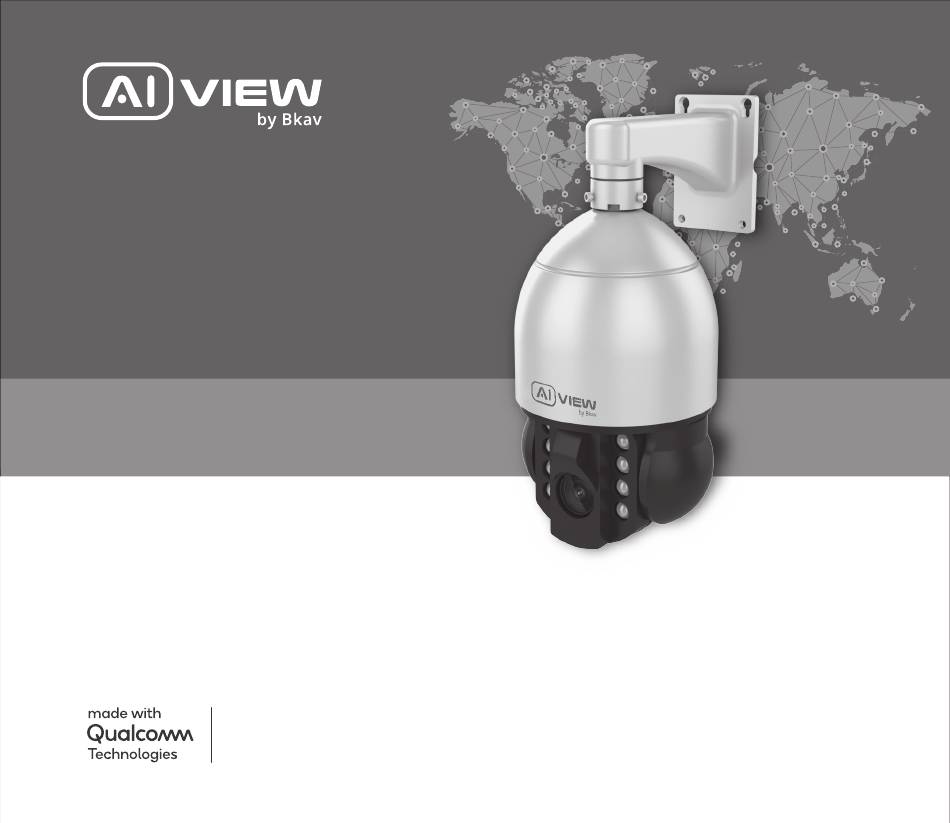

- Page 1 Ultra zoom Speed Dome AI-based Camera Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
- Page 2 INSTALLATION GUIDE Model: S500 Product Number: 0233...
-
Page 3: Product Kit
PRODUCT KIT Camera Wall Bracket 24VAC power supply Installation guide Thank you letter Drilling position decal... - Page 4 PRODUCT KIT Set 4 of screws Hex tool and anchors...
-
Page 5: Technical Specification
TECHNICAL SPECIFICATION Power supply AC 24V/3A Protection standards IP66, IK10 Resolution, frame rate FHD 1920x1080, 60 fps Optical zoom Focal length 4.5 - 148.5mm ± 5% Field of view (horizontal-vertical) Near: 60.1° - 36.2° / Far: 2.28° - 1.29° Mirco SD card External, up to 256GB -40°C - 60°C (-40°F - 140°F) Environmental conditions... -
Page 6: Product Overview
PRODUCT OVERVIEW 24VAC power supply RJ45 terminal block Camera body Camera lens Infrared LED... - Page 7 INSTALLATION GUIDE Step 1: Fix the camera on the bracket and tighten the screws it in the place (Figure 1). Step 2: Assemble safety cable into the bracket (Figure 2).
- Page 8 INSTALLATION GUIDE Step 3: Apply positions decal and drill 4 anchors to the wall. Fix the camera onto the wall with the screw (Figure 3). Drilling position decal...
-
Page 9: Connecting The Signal Wire
CONNECTING THE SIGNAL WIRE Connect network signal and power 24VAC. Network cable RJ45 terminal block 24VAC power supply Black wire Red wire... -
Page 10: Camera Field Of View
CAMERA FIELD OF VIEW 360° 95°... - Page 11 ATTENTION Note: During a power outage, the camera will be down as shown in the image above. When power is on, the camera will return to its previous position.
- Page 12 THE MEMORY CARD AND RESET INSTALLATION Reset installation: Open the protective cover that protects the camera against dust and water to reset the device. Memory card: Open the protective cover, you can find the location of Micro SD card. Mirco SD card Reset factory Note: Power off the camera, press and hold the factory reset button.
-
Page 13: Accessing The Camera
ACCESSING THE CAMERA Password setting Using your web browser, access the camera's default IP: 192.168.1.168 Note: To complete the installation steps for the camera, refer to the User Manual. The system will ask you to reset the password on your initial access. When the "Administrator password change"... -
Page 14: Software Installation
SOFTWARE INSTALLATION Login screen When accessing the camera, a login window will appear. Enter your user name and password to access the camera. 1. Enter "admin" in the <User name> box. 2. Enter your chosen password in <Password> box. 3. Click User name Password... -
Page 15: Safety Information
Improper installation may cause damage to the product. Contact Bkav's customer support or authorized Bkav agents if you experience any problems. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. - Page 16 BKAV CORPORATION Address: 2nd Floor - HH1 Building, Yen Hoa Ward, Cau Giay District, Ha Noi, Viet Nam Website: www.aiview.ai Email: aiview@bkav.com...
