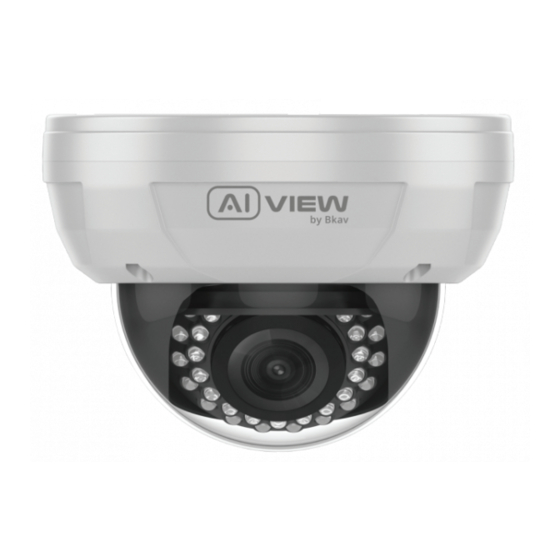

4k dome
AI-BASED CAMERA
Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
Advertisement
Table of Contents
Related Manuals for Bkav AI VIEW P450
Summary of Contents for Bkav AI VIEW P450
- Page 1 4k dome AI-BASED CAMERA Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
- Page 2 INSTALLATION GUIDE Model: P450 Product number: 0803F/0802N/0803FW/0802NW...
- Page 3 PRODUCT KIT Camera GPS antenna Waterproof Set 4 of screws Hex tool (Option) couplings and anchors WALL DECAL FOR DRILLING POSITION 4k dome Ø 5 mm, 5 holes AI-BASED CAMERA Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
-
Page 4: Technical Specification
TECHNICAL SPECIFICATION POE IEEE802.3af/802.3at Power supply Maximum 13W, 12VDC Protection standards IP66, IK10 Resolution, frame rate UHD 3840 x 2160, 60fps P450-0803F / P450-0803FW: 3x Optical zoom P450-0802N / P450-0802NW: 2x P450-0803F / P450-0803FW: 10.9 - 29mm ± 5% Focal length P450-0802N / P450-0802NW: 4.36 - 9.33mm ±... -
Page 5: Product Overview
PRODUCT OVERVIEW RJ45 terminal block 12VDC power supply Camera body Camera lens Infrared LED Dust and waterproof lens protector... - Page 6 INSTALLATION GUIDE Step 1: Apply position decal and then drill 4 anchors to the wall. Put the camera onto the wall using 4 screws to fix the camera ceiling mount (Figure 1). Step 2: Fit the protective cover in the camera body to prevent dust and water, then fix it with 4 screws (Figure 2).
-
Page 7: Connecting The Signal Wire
CONNECTING THE SIGNAL WIRE Connect the PoE cable. Insert the cable into the waterproof coupling before connecting the wires into the terminal. Two options to connect devices: Option 1: Use the network cable connected from the PoE switch to the waiting RJ45 terminal block, no need to use 12VDC power supply (Figure 1). -
Page 8: Gps Antenna Installation
GPS ANTENNA INSTALLATION Step 1: Use the screw unscrew tool in the position, as in the figure below. Step 2: Use sharp-pointed pliers to insert the GPS antenna connector into the waiting cable terminal (tighten enough screw thread). Step 3: Fix the GPS antenna onto the camera body using silicone glue, as in the figure below. GPS antenna... - Page 9 ADJUSTING THE CAMERA VIEWING ANGLE 65° 80°...
- Page 10 THE MEMORY CARD AND RESET INSTALLATION Reset installation: Open the protective cover that protects the camera against dust and water to reset the device. Memory card: Open the protective cover, you can find the location of Micro SD card. Reset factory Mirco SD card Note: Power off the camera, press and hold the factory reset button.
-
Page 11: Accessing The Camera
ACCESSING THE CAMERA Password setting Using your web browser, access the camera's default IP: 192.168.1.168 Note: To complete the installation steps for the camera, refer to the User Manual. The system will ask you to reset the password on your initial access. When the "Administrator password change"... -
Page 12: Software Installation
SOFTWARE INSTALLATION Login screen When accessing the camera, a login window will appear. Enter your user name and password to access the camera. 1. Enter "admin" in the <User name> box. 2. Enter your chosen password in <Password> box. 3. Click User name Password... -
Page 13: Safety Information
Improper installation may cause damage to the product. Contact Bkav's customer support or authorized Bkav agents if you experience any problems. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. - Page 15 BKAV CORPORATION Address: 2nd Floor - HH1 Building, Yen Hoa Ward, Cau Giay District, Ha Noi, Viet Nam Website: www.aiview.ai Email: aiview@bkav.com...
