Operating and
Maintenance Manual
SRV Black Edition III
0170204

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRV Black Edition III and is the answer not in the manual?

Questions and answers

Related Manuals for Weber mt SRV Black Edition III

Summary of Contents for Weber mt SRV Black Edition III

  • Page 1 Operating and Maintenance Manual SRV Black Edition III 0170204...
  • Page 2 Note down the information given on the type plate so that you can recreate the rating plate should the plate be lost. 1 Description 2 Type ....................... 3 Serial no. 4 Year of construction ....................... 5 Weight 6 Rated power kW ............

  • Page 3: Table Of Contents

    Contents 1. Introduction ........................4 2. Description ........................5 3. Technical data ......................... 6 4. Safety ..........................7 4.1. Information and safety stickers ................12 5. Operation........................13 6. Transport ........................19 7. Storage .......................... 19 8. Maintenance ........................20 8.1.

  • Page 4: Introduction

    Store these documents carefully. If you require any additional information, turn to your Weber MT dealer. Found on the last page of this manual is a QR code. Scan it to acquire the current contact addresses of all Weber MT branches.

  • Page 5: Description

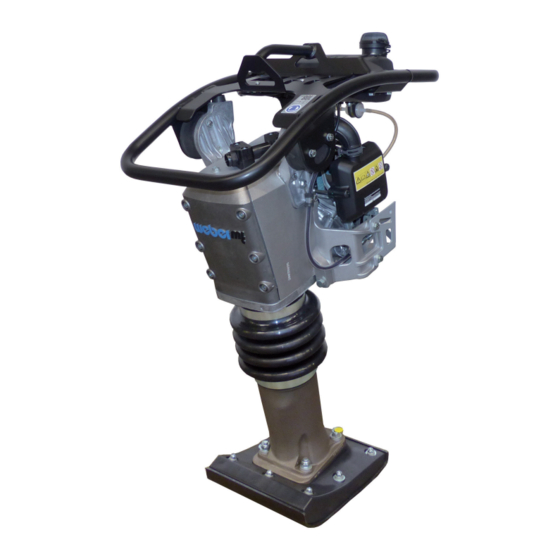

    2. Description The machine is a hand-guided vibrating tamper. An air-cooled Honda gasoline engine makes the tamping system vibrate via a centrifugal clutch. Start the gasoline engine by hand using the attached reversing starter. The engine speed is adjusted between idle speed and full-throttle speed via a gas lever.

  • Page 6: Technical Data

    3. Technical data SRV Black Edition Weight Operating weight CECE (in kg) Dimensions Overall length (in mm) Overall width (in mm) Height (in mm) 1040 Tamping foot width (in mm) Impact rate (/min) Stroke (in mm) Drive Engine manufacturer Honda Type GX 100 Performance at operating speed in...

  • Page 7: Safety

    4. Safety General All safety instructions must be read and complied with, as non-compliance will result in – danger to life and limb of the user, – impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with.
  • Page 8 Changes and conversions are prohibited unless made with and conversions original Weber MT spare parts. If the machine is modified with other accessories without the approval of Weber MT, the manufacturer will not assume liability for any resulting personal injury or property damage. All maintenance and repairs must be carried out with original Weber MT spare parts. Untested spare parts may affect...
  • Page 9 If the gas cap is open, fuel may escape and ignite on the engine when the machine is started or while it is operating. There is a risk of burns. Therefore, do not start the machine unless the gas cap is closed. Start-up procedure Do not disperse any sprays or other agents into the air intake while the machine is starting up.
  • Page 10 Safe handling of combustion Combustion engines pose a particular risk during operation. engines Their exhaust emissions contain carbon monoxide, a colorless and odorless gas that is extremely hazardous, which, if inhaled even briefly, can cause unconsciousness and death. Therefore, never inhale the exhaust gas. Maintenance Maintenance and repairs require specific qualifications. These operations may only be carried out by trained professionals.
  • Page 11 Safety instructions A variety of safety instructions and warnings are used and warnings throughout this operating manual. The following explains the meaning of signal words and symbols. ATTENTION warns of the danger of material damage. ATTENTION CAUTION warns of the danger of slight injury.

  • Page 12: Information And Safety Stickers

    4.1. Information and safety stickers Sticker Meaning The sound power level is 108 dB (A). Therefore, wear suitable hearing protection at all times.

  • Page 13: Operation

    5. Operation Preparing the machine Remove all packaging material. for initial use Check all components for visible damage. Do not start the machine if detecting visible damage. Contact the responsible dealer. Check if the shipment of the machine and its components is complete.
  • Page 14 Operating positions on the machine Overall view SRV Black Edition Fuel tank Engine Air filter Gas lever Tamping system Choke lever Manual guidance rod Tamping foot Crane bracket...
  • Page 15 Positions of the gas lever Stop The engine runs at full-throttle speed. Full throttle The tamper operates at full power. The engine runs at reduced speed. Reduced speed The tamper operates at reduced power. Idle speed The engine runs at idle speed. The engine is switched off.
  • Page 16 Before starting work Perform the following tasks before starting to work in order to prevent failures or excessive wear. Visual inspections Entire machine for external damage. Fuel system for leaks. Rubber buffers for crack formation. Check and, if necessary, Engine oil level correct the fill levels Fuel level Other inspections Compliance with the maintenance schedule.
  • Page 17 Working with the machine Starting the engine WARNING Danger of suffocation from engine exhausts when starting the engine in closed rooms or poorly ventilated work areas. Start the engine only in well-ventilated environments. See section “Safety” for operating the machine in trenches. ATTENTION Risk of engine damage caused by insufficient lubrication after horizontal transport. Following horizontal transport, set up the machine vertically and wait several minutes until the engine oil has collected in the lower area of the crankcase.
  • Page 18 Compacting WARNING There is a crushing hazard under the tamping foot from the movement of the tamper during compacting. Wear the personal protective equipment. Only guide the tamper in the grip area of the manual guidance rod. CAUTION There is a crushing hazard between the tamper and the wall during work in close proximity to walls.

  • Page 19: Transport

    Check and, if necessary, correct the engine oil level. Check and clean air and fuel filter. Replace if damaged. Lightly oil all bare parts, levers and accelerator control cables. If the machine is to be stored for longer than six months, contact the Weber MT’s service organization to discuss additional measures.

  • Page 20: Maintenance

    8. Maintenance General information The section below contains instructions that need to be observed for regular maintenance. Read these instructions carefully and follow them in order to prevent downtimes of the machine caused by excessive wear or damage to the machine. Also read the safety instructions relevant to machine maintenance before you begin with the maintenance work.

  • Page 21: Maintenance Overview

    8.1. Maintenance overview Frequency Activity Check for visible damage Change the engine oil 8.2.2 Re-tighten all accessible threaded connections Instructions Check the valve of the engine Honda Replace the fuel filter 8.2.3 Clean the air filter, check for 8.2.4 damage and replace if necessary Change the oil in 8.2.7 the tamping system The regulations and the operating and maintenance manuals of the engine...

  • Page 22: Description Of The Maintenance Operations

    8.2. Description of the maintenance operations WARNING If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Wear protective gloves. If skin contact has occurred, wash the affected areas thoroughly. 8.2.1. Check the engine Unscrew the oil dip stick (1) from the crankcase. oil level Insert the oil dip stick in the oil filler neck as shown, but do not screw it in.

  • Page 23: Change The Fuel Filter

    8.2.3. Change the fuel filter The fuel runs through two filters between tank and engine. Both filters must be replaced every 50 operating hours or every six months. WARNING Fuels are easily flammable. There is a risk of fire during work on the fuel system. Do not smoke. Have suitable fire-extinguishing agents at the ready. Change the in-line fuel filter CAUTION Pulling the hose (1) off the in-line fuel filter (2) will drain the entire fuel tank. There is a risk of environmental damage. Before starting work, drain the fuel tank completely OR Place a vessel of sufficient size under the in-line fuel liter and catch the contents of the tank.

  • Page 24: Clean / Change The Secondary Air Filter

    8.2.4. Clean / change the secondary air filter Unscrew and take off the air filter cover (1). Remove the air filter (2). Clean the air filter by light tapping. Replace the air filter insert if there is damage or extreme contamination. Install the air filter cover. 8.2.5. Adjust / replace CAUTION the spark plug Danger of burn injuries at the hot engine and its attachments. Allow the combustion engine to cool down sufficiently before starting work. Use extra caution during work on the engine when it is at operating temperature.

  • Page 25: Change The Tamping Foot

    8.2.6. Change the tamping foot Loosen the 4 nuts (1) of the tamping foot (2). Lift the tamper off the tamping foot (2). Install a new tamping foot. The tightening torque of the nuts (1) is 35 Nm. Arrange the spring washers below the nuts as shown in the adjacent illustration.
  • Page 26 Note:...
  • Page 27 Note:...
  • Page 28 facebook.com/WeberMT youtube.com/MyWeberMT Weber Maschinentechnik GmbH Im Boden 5 – 8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085102303-104 / SRV BE III_2020-04 Original operating manual...
