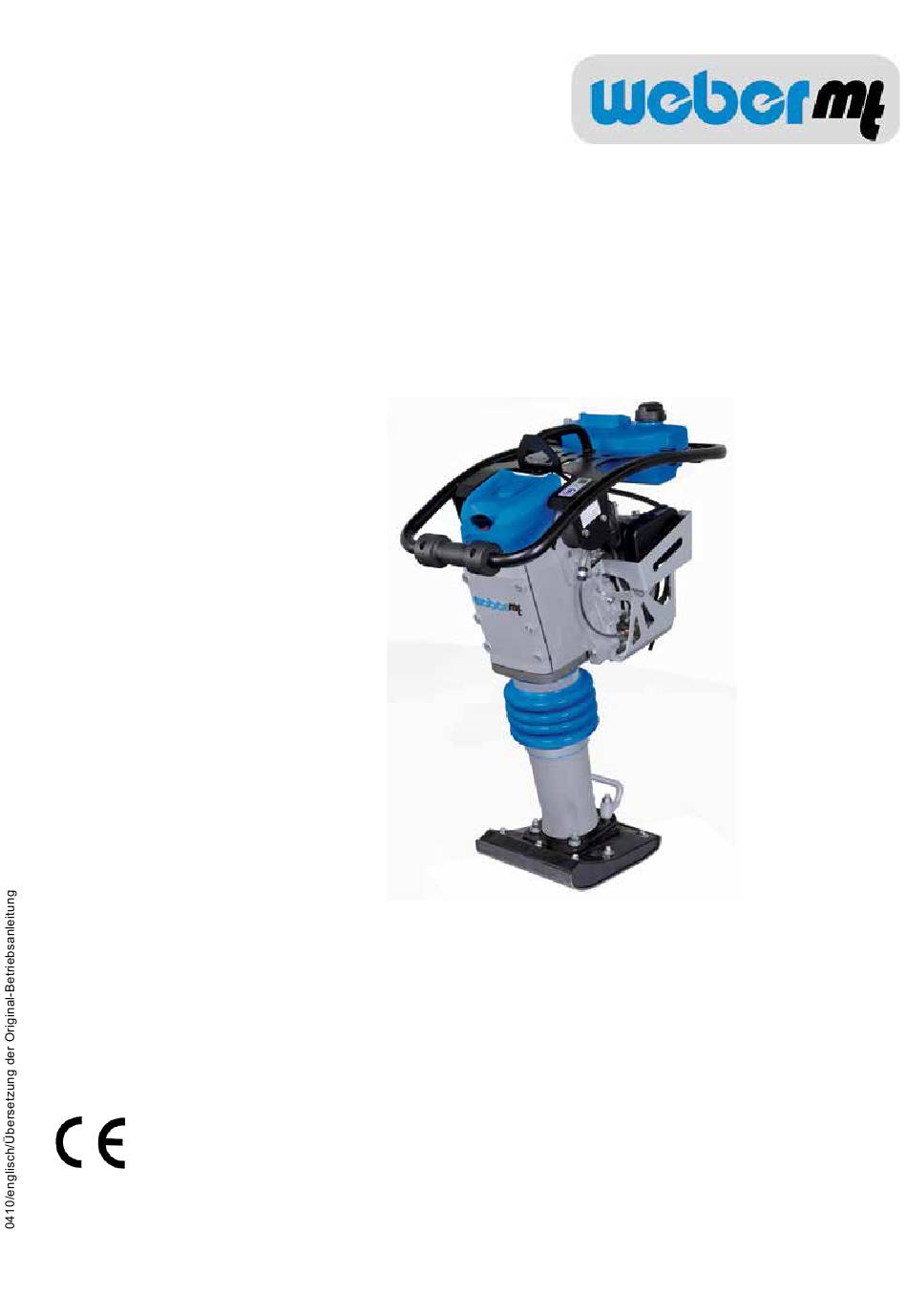

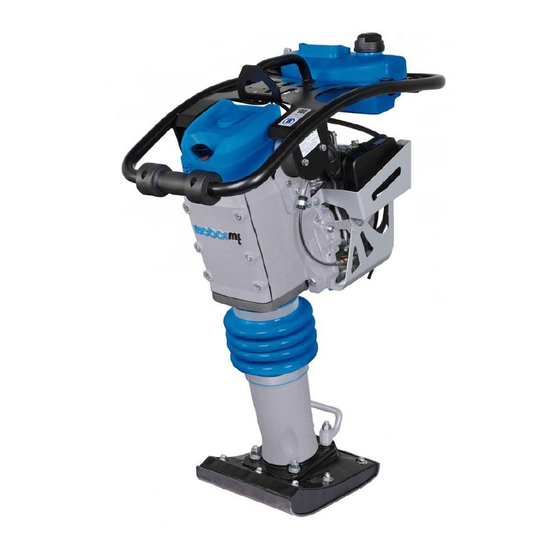

- Page 1 Operating and Maintenance Manual SRV 660 Robin-Subaru EH 12-2 Weber Maschinentechnik GmbH Im Boden 5 - 8 , 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: + 49 (0) 27 54 / 398 0 Fax: + 49 (0) 27 54 / 398 101 E-Mail: info@webermt.de...
- Page 2 SRV 660...
-
Page 3: Table Of Contents
Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Tamping Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Measures to be taken if stored for long periods Contact addresses SRV 660... -
Page 4: Introduction
You can obtain information on the assembled Robin-Subaru petrol engine and find a spare-part list for it at www.robin-europe.de The valid conformity declaration is enclosed with every machine delivery. SRV 660... -
Page 5: Safety Guidelines
The tamper should only be used in technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The SRV 660 tamper is designed exclusively for compacting - Sand - Gravel... - Page 6 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. SRV 660...
- Page 7 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves SRV 660...
-
Page 8: Graphic Presentation
Graphic presentation Total overview SRV 660 Fuel tank Tamping system Gas lever Tamping foot Hand guide bracket Main filter Engine Sub filter Transport rollers Handle Wear ear protection (Stickers) SRV 660... -
Page 9: Device Description
Device description The series SRV 660 tamper is used for road-building, canal construction, pipe laying and landscaping compaction tasks. The tamper is powered by an air-cooled Robin -Subaru-gasoline engine. The engine is protected by a double filter system consisting of an oversized main air filter and an additional air filter. -
Page 10: Technical Data
Technical data SRV 660 Weight Operating weight CECE in kg Dimensions Overall length in (in mm) Overall width in (in mm) Height (in mm) 1035 Tamping foot width (in mm) Impact rate (/min) Stroke (in mm) Drive Engine manufacturer Robin-Subaru... - Page 11 1Description 2 TYPE ....................... 3 Serial-Number 4 Year of construction ......................5 Mass 6 Rated power KW SRV 660...
-
Page 12: Activities Prior To Starting Work
Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. For work at the fuel system, have a suitable fire-extin- guishing agent at the ready. Fire, naked light, and smoking is forbidden! SRV 660... -
Page 13: Starting
- danger of poisoning. In case of ambient temperatures of 5 degrees C below zero or less, the starting procedure must be carried out in acoordance with the operation manual of the engine manufacturer. Never use starting aid sprays. SRV 660... -
Page 14: Tamping
Close the fuel cock (1). To shut off the engine push the gas lever back beyond the idle lock-in setting. During breaks—even if they are short—the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against conspicuously. SRV 660... -
Page 15: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. SRV 660... -
Page 16: Maintenance Work
Dispose of oils, oil-soaked cloths, and parts replaced and smeared with oil in an environmentally friendly manner. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. SRV 660... - Page 17 Unscrew the fuel cock, including fuel filter (1) out of the fuel tank. Clean the fuel filter Replace fuel filter if damaged. For work at the fuel system, have a suitable fire-extin- guishing agent at the ready. Fire, naked light, and smoking is forbidden! SRV 660...
- Page 18 When mounting the new tamping foot the nuts (1) must be tightened with a torque of 35 Nm. Mount the fastening nuts of the tamping foot using the plate springs as shown in the adjacent illustration. Mounting arrangement of the plate springs SRV 660...
-
Page 19: Operating Fluids And Fill Levels
Spark plug fouled spark plug Fuel cock closed Open fuel cock Engine runs at full rpm, tamper does not Centrifugal clutch is Repair defective tamp or tamps inadequately Unclean compaction pattern Tamping foot is worn Change the tamping foot SRV 660... -
Page 20: Measures To Be Taken If Stored For Long Periods
Check fuel filter, change if necessary All bare parts/accelerator/accelerator - Oil/grease control cable/fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organi- zation to discuss additional measures. SRV 660... - Page 21 SRV 660...
- Page 22 SRV 660...
-
Page 23: Contact Addresses
+ 48 (0) 22 - 739 70 – 82 05-830 Stara Wies E-Mail info@webermt.com.pl In Tschechien WEBER MT s.r.o. Telefon + 42 (0) 776 222 216 V Piskovne 2054 + 42 (0) 776 222 261 278 01 Kralupy nad Vitavou E-Mail info@webermt.cz... - Page 24 > Vibratory tampers > Vibratory compactors > Pavement saws > Poker vibrators and converters > Rotary trowels Weber MASCHINENTECHNIK GmbH Im Boden D-57334 Bad Laasphe - Rückershausen Phone ++27 54 / 398 0 - Fax ++27 54 / 398 101 SRV 660...
