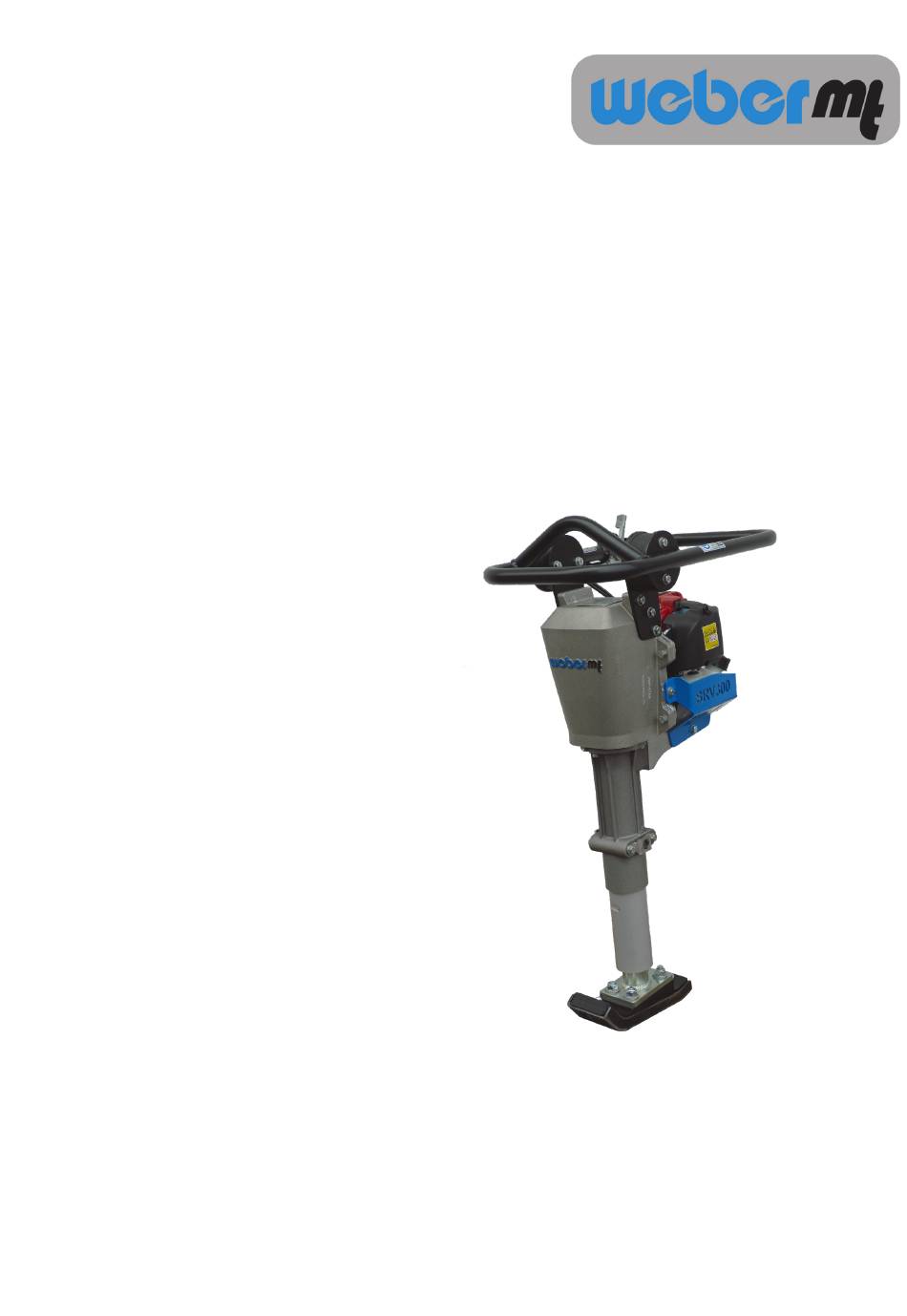

- Page 1 Operating and Maintenance Manual SRV 300 0170051...
- Page 2 Note down the information given on the type plate so that you can recreate the rating plate should the plate be lost. 1 Description 2 Type ....................... 3 Serial no. 4 Year of construction ......................5 Weight 6 Rated power kW ...........
-
Page 3: Table Of Contents
Contents 1. Introduction ........................4 2. Description ........................5 3. Technical data ......................... 6 4. Safety ..........................7 4.1. Information and safety stickers ................12 5. Operation........................13 6. Transport ........................18 7. Storage .......................... 18 8. Maintenance ........................19 8.1. -
Page 4: Introduction
If you require any additional information, turn to your Weber MT dealer. Found on the last page of this manual is a QR code. Scan it to acquire the current contact addresses of all Weber MT branches. You can obtain information on the assembled Honda gasoline... -
Page 5: Description

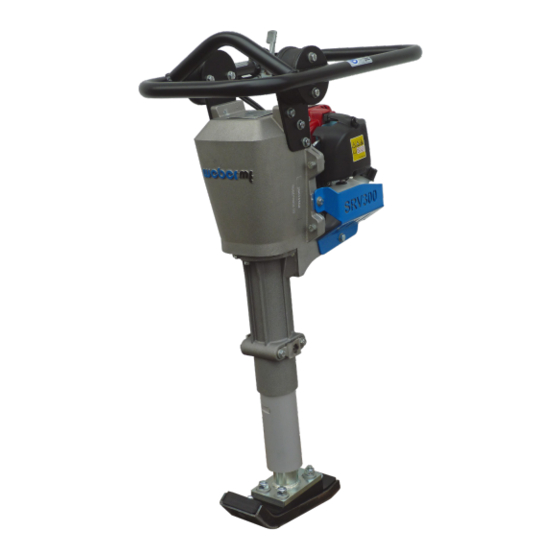

2. Description The machine is a hand-guided vibrating tamper. An air-cooled Honda gasoline engine makes the tamping system vibrate via a centrifugal clutch. Start the gasoline engine by hand using the attached reversing starter. The engine speed is adjusted between idle speed and full- throttle speed via a gas lever. -
Page 6: Technical Data
3. Technical data SRV 300 Weight Operating weight CECE (in kg) Dimensions Overall length (in mm) Overall width (in mm) Height (in mm) Tamping foot width (in mm) Impact rate (/min) Stroke (in mm) Drive Engine manufacturer Honda Type GX 35... -
Page 7: Safety
4. Safety General All safety instructions must be read and complied with, as non- compliance will result in - Danger to life and limb of the user, - Impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with. - Page 8 Spare parts, changes and Changes and conversions are prohibited unless made with conversions original Weber MT spare parts. If the machine is modified with other accessories without the approval of Weber MT, the manufacturer will not assume liability for any resulting personal injury or property damage.
- Page 9 Start-up procedure Do not disperse any sprays or other agents into the air intake while the machine is starting up. They may lead to overheating in the combustion chamber and result in damage to the engine. There is danger of suffocation if the operator starts up the machine in closed rooms or in deep and tight trenches.
- Page 10 Cleaning work Use clear water for cleaning. Do not use flammable solvents. The vapors of the solvents may ignite upon contact with hot components or other sparks. Perform cleaning tasks only in rooms that are suitable and have been approved for that purpose. Residual oil and lubricants that may have been rinsed off have a negative impact on the environment and must be collected by suitable means (e.g.
- Page 11 Safety instructions and A variety of safety instructions and warnings are used warnings throughout this operating manual. The following explains the meaning of signal words and symbols. ATTENTION warns of the danger of material damage. ATTENTION CAUTION warns of the danger of slight injury.
-
Page 12: Information And Safety Stickers
4.1. Information and safety stickers Sticker Meaning The sound power level is 108 dB (A). Therefore, wear suitable hearing protection at all times. Positions of the gas lever. Use the designated lifting ring to lift the machine. See section “Cold start” for temperatures below 5°... -
Page 13: Operation
5. Operation Preparing the machine for Remove all packaging material. initial use Check all components for visible damage. Do not start the machine if detecting visible damage. Contact the responsible dealer. Check if the shipment of the machine and its components is complete. - Page 14 Operating positions on the machine Overall view SRV Fuel tank Tamping foot Gas lever Air filter Manual guidance rod Choke lever Engine Crane bracket Tamping system...
- Page 15 Before starting work Perform the following tasks before starting to work in order to prevent failures or excessive wear. Visual inspections Entire machine for external damage. Fuel system for leaks. Rubber buffers for crack formation. Check and, if necessary, Engine oil level correct the fill levels Fuel level Other inspections...
- Page 16 Working with the machine Starting the engine WARNING Danger of suffocation from engine exhausts when starting the engine in closed rooms or poorly ventilated work areas. Start the engine only in well-ventilated environments. See section “Safety” for operating the machine in trenches. ATTENTION Risk of engine damage caused by insufficient lubrication after horizontal transport.
- Page 17 Cold start (below 5° Celsius) If operating the tamper in temperatures below 5° Celsius, the oil in the tamping system needs to be warmed up briefly. To do so: Start the engine and allow it to warm up at idle speed. Lift the tamper.
-
Page 18: Transport
Switching off the engine Allow the engine to cool down at idle speed for a few minutes (“min” position). To switch the machine off, set the gas lever to the “0 / OFF” position. The engine is switched off. 6. Transport Lifting the machine The machine can be lifted for loading onto a vehicle. -
Page 19: Maintenance
8. Maintenance General information The section below contains instructions that need to be ob- served for regular maintenance. Read these instructions care- fully and follow them in order to prevent downtimes of the ma- chine caused by excessive wear or damage to the machine. Also read the safety instructions relevant to machine mainte- nance before you begin with the maintenance work. -
Page 20: Maintenance Overview
8.1. Maintenance overview Frequency Activity Change the engine oil 8.2.2 Re-tighten all accessible threaded connections Honda Check the valve of the engine instructions Replace the fuel filter 8.2.3 Clean the air filter, check for 8.2.4 damage and replace if necessary Apply grease to the lubricating 8.2.6 points... -
Page 21: Description Of The Maintenance Operations
8.2. Description of the maintenance operations WARNING If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Wear protective gloves. If skin contact has occurred, wash the affected areas thoroughly. 8.2.1. Check the engine oil Park the machine on a horizontal subsurface. -
Page 22: Change The Fuel Filter
8.2.3. Change the fuel filter Open the gas cap (1). Pull the fuel filter (2) out of the tank. Pull the fuel filter off the fuel line Insert a new fuel filter. Close the gas cap. 8.2.4. Clean / change air filter Unscrew and take off the air filter cover (1). -
Page 23: Adjust / Replace The Spark Plug
Install the protective cap and tighten the screw. 8.2.6. Lubrication There are three lubricating points on the SRV 300 tamper. They are easy to access and require no prior disassembly. Apply grease as follows every 50 operating hours or every six months: Lubricating points “anti-rotation locking device”... -
Page 24: Change The Tamping Foot
8.2.7. Change the tamping foot Loosen the 4 nuts (1) of the tamping foot (2). Lift the tamper off the tamping foot (2). Install a new tamping foot. The tightening torque of the nuts (1) is 35 Nm. Arrange the plate springs below the nuts as shown in the adjacent illustration. - Page 28 facebook.com/WeberMT youtube.com/MyWeberMT Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085102453-104 / SRV_2021-01 Original instructions...
