Operating and
Maintenance Manual
CF 1 HD
Honda GX 120
from Serial-No. 2100295
CF 1 HD
Weber Maschinentechnik GmbH
Im Boden 5 - 8 , 10
D-57334 Bad Laasphe-Rückershausen / Germany
Tel.: + 49 (0) 27 54 / 398 0
Fax: + 49 (0) 27 54 / 398 101
E-Mail: info@webermt.de
Web: www.webermt.de
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF 1 HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Weber mt CF 1 HD

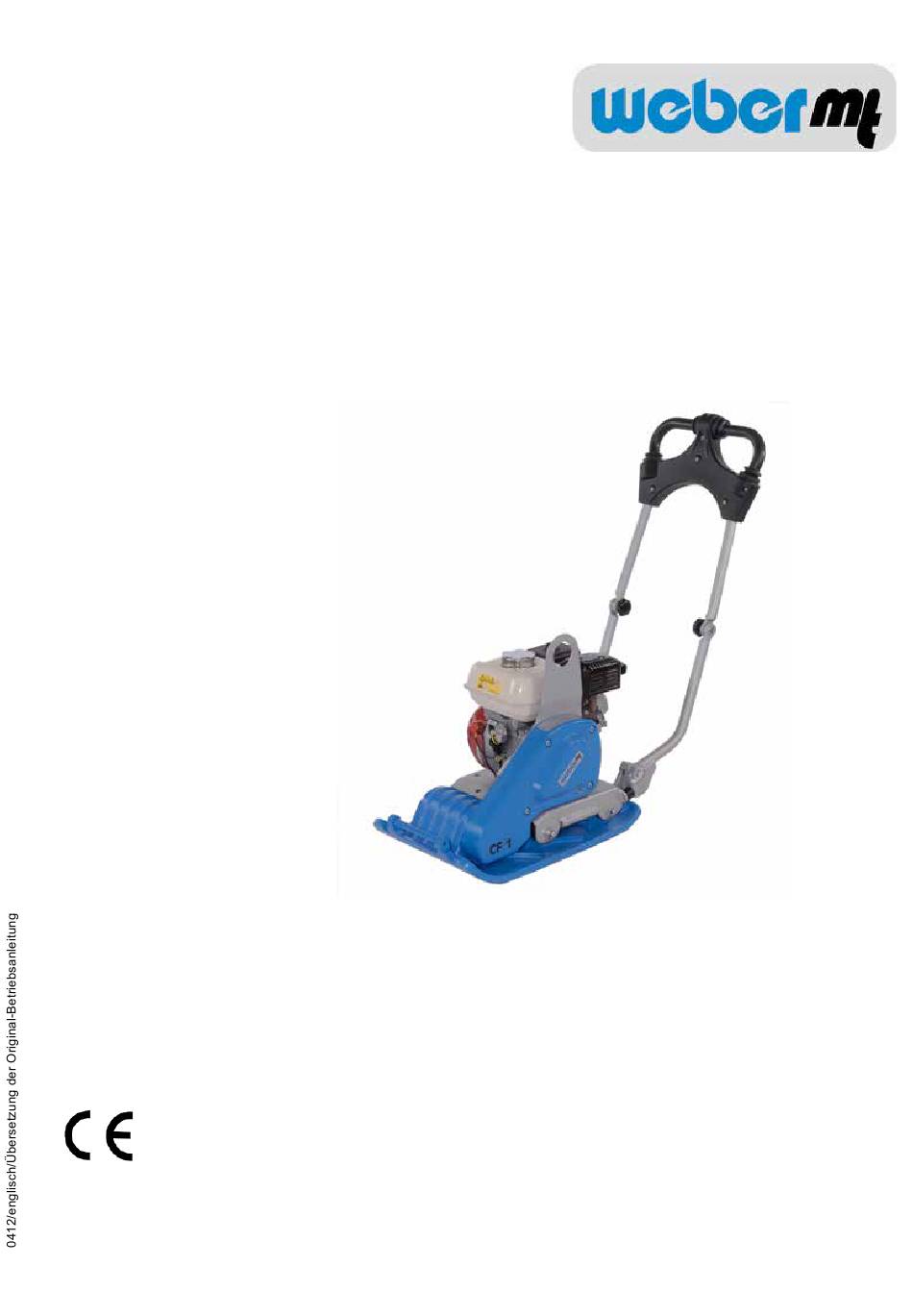

  • Page 1 Operating and Maintenance Manual CF 1 HD Honda GX 120 from Serial-No. 2100295 Weber Maschinentechnik GmbH Im Boden 5 - 8 , 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: + 49 (0) 27 54 / 398 0 Fax: + 49 (0) 27 54 / 398 101 E-Mail: info@webermt.de...
  • Page 2 CF 1 HD...
  • Page 3: Table Of Contents

    Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Measures to be taken if stored for long periods Contact addresses CF 1 HD...
  • Page 4: Introduction

    You can obtain information on the assembled Honda petrol engine and find a spare-part list for it at www.honda-engines-eu.com The valid conformity declaration is enclosed with every machine delivery. CF 1 HD...
  • Page 5: Safety Guidelines

    This machine is capable of exceeding the permissible sound level of 80 dB(A). The owner might also face additional dangers when using the machine. Precautionary action must, therefore, be taken. Protective equipment includes: Ear protection Hard hat Safety shoes Protective gloves CF 1 HD...
  • Page 6 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. CF 1 HD...
  • Page 7 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CF 1 HD...
  • Page 8: Graphic Presentation

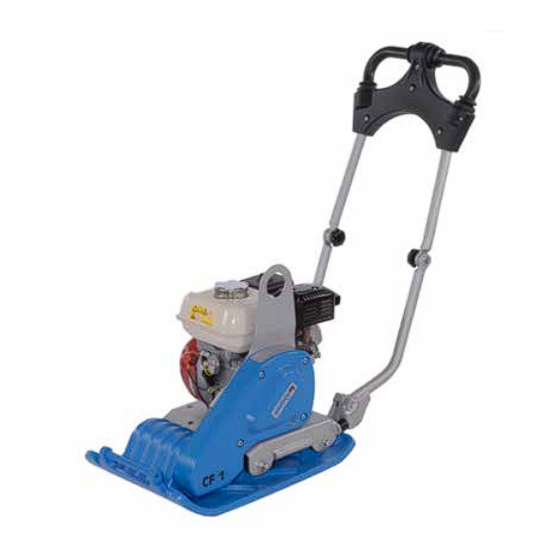

    Graphic presentation Overall view CF 1HD 1 Water tank 2 Engine 3 Handle 4 Under carriage 5 Engine bracket 6 Base plate 7 Wear ear protection (Stickers) CF 1 HD...
  • Page 9: Device Description

    Start the Honda gasoline engine with the attached reversing starter. After starting, vibration is switched on via the centrifugal clutch attached to the engine. Use the gas lever to vary the engine speed between idle and full throttle. The machine is steered with the handle. CF 1 HD...
  • Page 10: Technical Data

    Technical data CF 1 HD Weight Operating weight CECE in kg (basic device) Dimensions 1010 Overall length in (in mm) Overall width/with attachment plates (in mm) Height with folded manual guidance rod (in mm) Base plate length (base in mm)
  • Page 11 1Description 2 TYPE ....................... 3 Serial-Number 4 Year of construction ......................5 Mass 6 Rated power KW CF 1 HD...
  • Page 12: Activities Prior To Starting Work

    Transport with hand truck Bend the manual guidance rod (1) over the machine. Use the screws (2) to fasten the chassis mount (1) to the engine console (3). Fasten the chassis (1) inside the chassis mount (2). CF 1 HD...
  • Page 13 Unscrew and remove the oil dip stick from the crankcase. nsert the oil dip stick in the oil filler neck, however do not screw it in. The correct oil level is between the min. and max. marks. max. min. CF 1 HD...
  • Page 14 Attach the poly plate to the rear of the base plate. Fasten the poly pad with holder, screws, spring-lock washers and nuts (1) on the base plate front and rear. Ensure that the poly pad rests under the base plate. CF 1 HD...
  • Page 15 Lock the water tank (1) in place at the tank holder using the lever (2). If necessary, cut off the water supply by closing the water valve (1). In case of danger of frost, completely drain the water tank. CF 1 HD...
  • Page 16: Starting

    (open). Compacting Open the water valve (1). Bring the gas lever (1) into full-throttle position. Control drive speed and direction of travel with the handle (1). Only run machine within reach of the manual guidance rod. CF 1 HD...
  • Page 17: Shutting Down

    Push the fuel cock (2) to the right (close). Turn the short-circuit button (1) to the „0“ - OFF position. During breaks—even if they are short—the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against conspicuously. CF 1 HD...
  • Page 18: Maintenance Overview

    If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CF 1 HD...
  • Page 19: Maintenance Work

    Clean the air filter insert in accordance with theguidelines provided by the engine manufacturer, or replace if there is extreme fouling. Dispose of oils, oil-soaked cloths, and parts replaced and smeared with oil in an environmentally friendly manner. CF 1 HD...
  • Page 20 Checking the V-belt Remove the V-belt guard (1). Check the V-belt (1) for cracks, damaged flanks, and wear. If there is excessive wear - replace the V-belt as specified in the repair manual. CF 1 HD...
  • Page 21 Remove the V-belt guard (1). Block the V-belt pulley (1) using a wedge (2). Unscrew the screw (1) on the V-belt pulley (2). Take off the V-belt pulley (1) and replace the V-belt (1). Mount the V-belt guard (1). CF 1 HD...
  • Page 22: Operating Fluids And Fill Levels

    Operating fluids and fill levels Subassembly Fuel Quantity Summer Winter CF 1 HD Quality Engine Engine oil SAE 10 W 40 0,6 l (-10 ~ + 50 °C) API - CD CE-CF-CG or SHPD or CCMC - D4 - D5 - PD2...
  • Page 23: Measures To Be Taken If Stored For Long Periods

    Check fuel filter, change if necessary All bare parts/accelerator/accelerator - Oil/grease control cable/fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organi- zation to discuss additional measures. CF 1 HD...
  • Page 24 CF 1 HD...
  • Page 25 CF 1 HD...
  • Page 26 CF 1 HD...
  • Page 27: Contact Addresses

    278 01 Kralupy nad Vitavou E-Mail info@webermt.cz WEBER MT Telefon + 1(207) - 947 - 4990 USA and 4717 Broadmoor Ave. SE Suite B Telefax + 1(207) - 947 – 5452 Canada Grand Rapids, MI 49512 E-Mail sales@webermt.us service@webermt.us CF 1 HD...
  • Page 28 > Vibration rollers > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe - Rückershausen Telephone + 49 27 54 / 398 0 - Fax +49 27 54 / 398 101 CF 1 HD...
