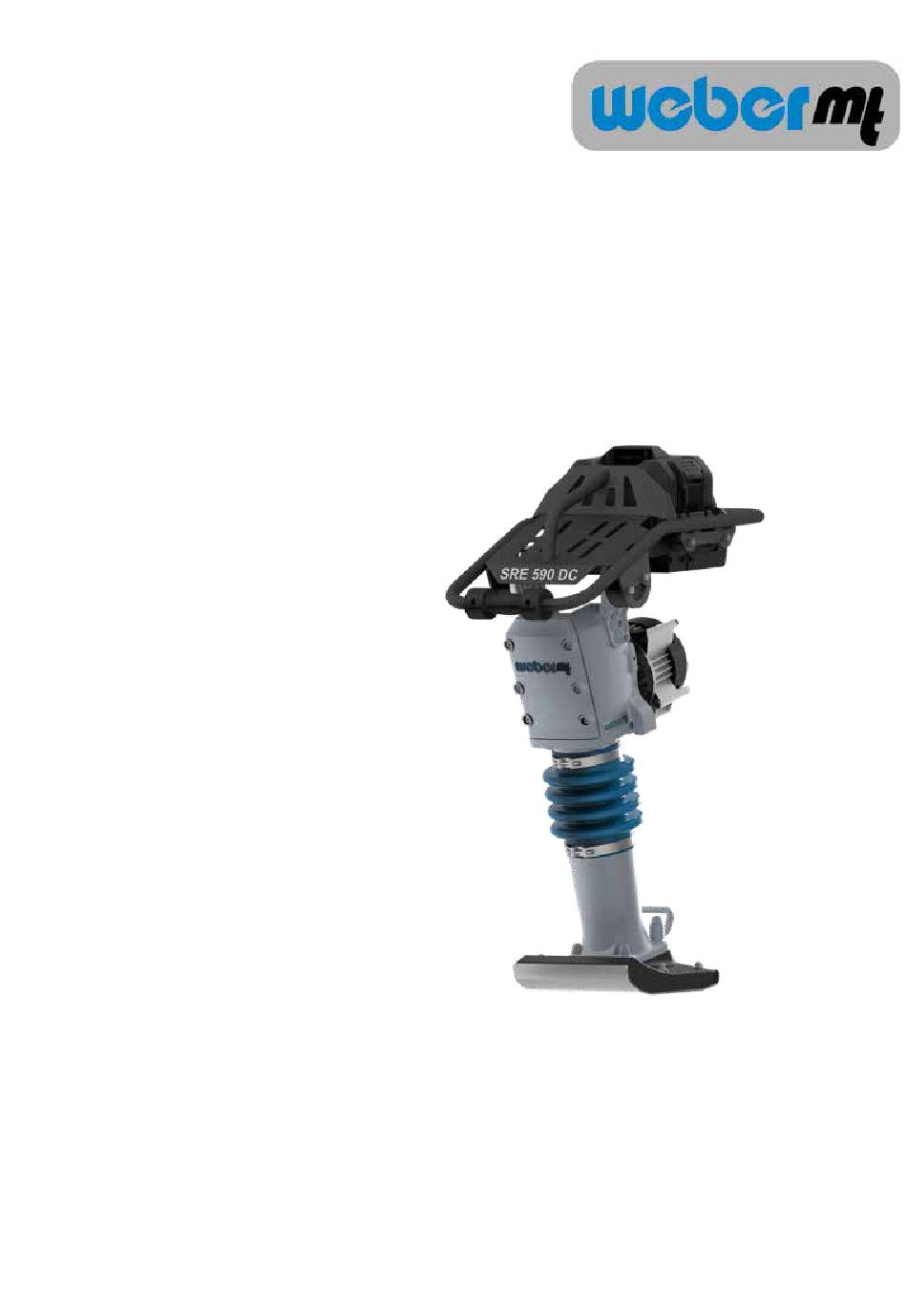

Operating and
Maintenance Manual
SRE 590 DC
0170161

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRE 590 DC and is the answer not in the manual?

Questions and answers

Related Manuals for Weber mt SRE 590 DC

Summary of Contents for Weber mt SRE 590 DC

  • Page 1 Operating and Maintenance Manual SRE 590 DC 0170161...
  • Page 2 Note down the information given on the type plate so that you can recreate the rating plate should the plate be lost. 1 Description 2 Type ....................... 3 Serial no. 4 Year of construction ......................5 Weight 6 Rated power kW ...........

  • Page 3: Table Of Contents

    Contents 1. Introduction ........................4 2. Description ........................5 3. Technical data ......................... 6 4. Safety ..........................7 4.1. Information and safety stickers ................11 5. Operation........................12 6. Transport ........................18 7. Storage .......................... 19 8. Maintenance ........................20 8.1.

  • Page 4: Introduction

    You can obtain information on the assembled Honda battery-powered engine and find a spare parts list for it at www.honda-engines-eu.com. For the latest spare parts list of the machine, open the Weber MT service app or visit the following link: https://www.webermt.com/DE/deu/downloads/...

  • Page 5: Description

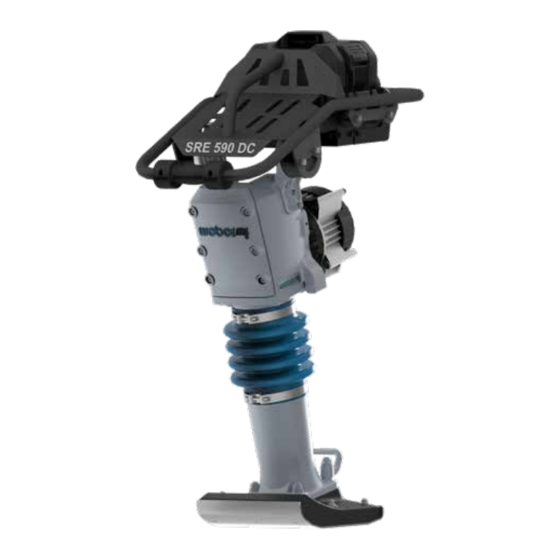

    2. Description The machine is a hand-guided vibrating tamper. A battery-powered Honda engine makes the tamping system vibrate via a centrifugal clutch. The engine speed can be set to three different levels via a lever. The manual guidance rod houses the battery and the necessary controls.

  • Page 6: Technical Data

    3. Technical data SRE 590 DC Weight Operating weight CECE (in kg) Dimensions Overall length (in mm) Overall width (in mm) Height (in mm) 1105 Tamping foot width (in mm) Impact rate (/min) Stroke (in mm) 61.6 Drive Engine manufacturer...

  • Page 7: Safety

    4. Safety General All safety instructions must be read and complied with, as non-compliance will result in - Danger to life and limb of the user, - Impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with.
  • Page 8 Spare parts, changes and Changes and conversions are prohibited unless made with conversions original Weber MT spare parts. If the machine is modified with other accessories without the approval of Weber MT, the manufacturer will not assume liability for any resulting personal injury or property damage.
  • Page 9 Suspend operation and shut down the machine if detecting damage on the machine during operation. Parking the machine Always park the machine on a level subsurface with sufficient bearing capacity. Parked machines presenting an obstacle must be secured in accordance with statutory regulations, particularly in the area of public traffic surfaces.
  • Page 10 Safety instructions and A variety of safety instructions and warnings are used warnings throughout this operating manual. The following explains the meaning of signal words and symbols. ATTENTION warns of the danger of material damage. ATTENTION CAUTION warns of the danger of slight injury.

  • Page 11: Information And Safety Stickers

    4.1. Information and safety stickers Sticker Meaning The sound power level is 108 dB (A). Therefore, wear suitable hearing protection at all times.

  • Page 12: Operation

    5. Operation Preparing the machine for Remove all packaging material. initial use Check all components for visible damage. Do not start the machine if detecting visible damage. Contact the responsible dealer. Check if the shipment of the machine and its components is complete.
  • Page 13 Operating positions on the machine Overall view SRE 590 DC Battery pack Engine Crane bracket Tamping system Manual guidance rod Tamping foot...
  • Page 14 Power cable Speed Change switch POWER indicator Switch box START/STOP switch ALERT indicator POWER switch ERROR indicator...
  • Page 15 Before starting work Perform the following tasks before starting to work in order to prevent failures or excessive wear. Visual inspections Entire machine for external damage. Rubber buffers for crack formation. Other inspections Compliance with the maintenance schedule Threaded unions for firm seat...
  • Page 16 Working with the machine Starting the engine Press the POWER switch. After all indicators light up for a few seconds, only the POWER indicator remains illuminated. The engine is ready for operation. If the POWER switch is pressed with the START/STOP switch in the START position, the POWER indicator will not light up, and the ALERT indicator will flash.
  • Page 17 Switching off the engine Set the START/STOP switch to the STOP position. The engine stops, and the POWER indicator goes out. You can also switch the engine off by pressing the POWER switch. However, it may take a while before it stops.

  • Page 18: Transport

    6. Transport Transport of the machine requires that the battery pack be disconnected from the machine. Lifting the machine The machine can be lifted for loading onto a vehicle. CAUTION Risk of material damage and injuries. The use of defective or unsuitable lifting gear may cause the machine to fall down.

  • Page 19: Storage

    Check the tamping system for leaks. Correct any detected defects. Observe the information provided on long-term storage in the operating instructions of the battery pack. If the machine is to be stored for longer than six months, contact the Weber MT’s service organization to discuss additional measures.

  • Page 20: Maintenance

    8. Maintenance General information The section below contains instructions that need to be observed for regular maintenance. Read these instructions carefully and follow them in order to prevent downtimes of the machine caused by excessive wear or damage to the machine. Also read the safety instructions relevant to machine maintenance before you begin with the maintenance work.

  • Page 21: Maintenance Overview

    8.1. Maintenance overview Frequency Activity Check for visible damage Re-tighten all accessible threaded connections Change the oil in the tamping 8.2.7 system The regulations and the operating and maintenance manuals of the engine manufacturer must be complied with in addition to the activities specified in the above maintenance overview.

  • Page 22: Description Of The Maintenance Operations

    8.2. Description of the maintenance operations 8.2.1. Change the oil in Place a suitable collection vessel under the oil drain. the tamping system Unscrew the screw plug (1) from the fill opening. Tilt the machine backward and let the waste oil drain into the vessel.

  • Page 23: Change The Tamping Foot

    8.2.2. Change the tamping foot Lay the tamper down on its side. Loosen the four nuts of the tamping foot. Remove the tamping foot, the fasteners and the handle. Install a new tamping foot. Fasten the handle when doing so. Observe the mounting arrangement of the plate springs! Tighten the four nuts.
  • Page 24 facebook.com/WeberMT youtube.com/MyWeberMT Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085102454-104 / SRE 590 DC_2022-02 Original instructions...
