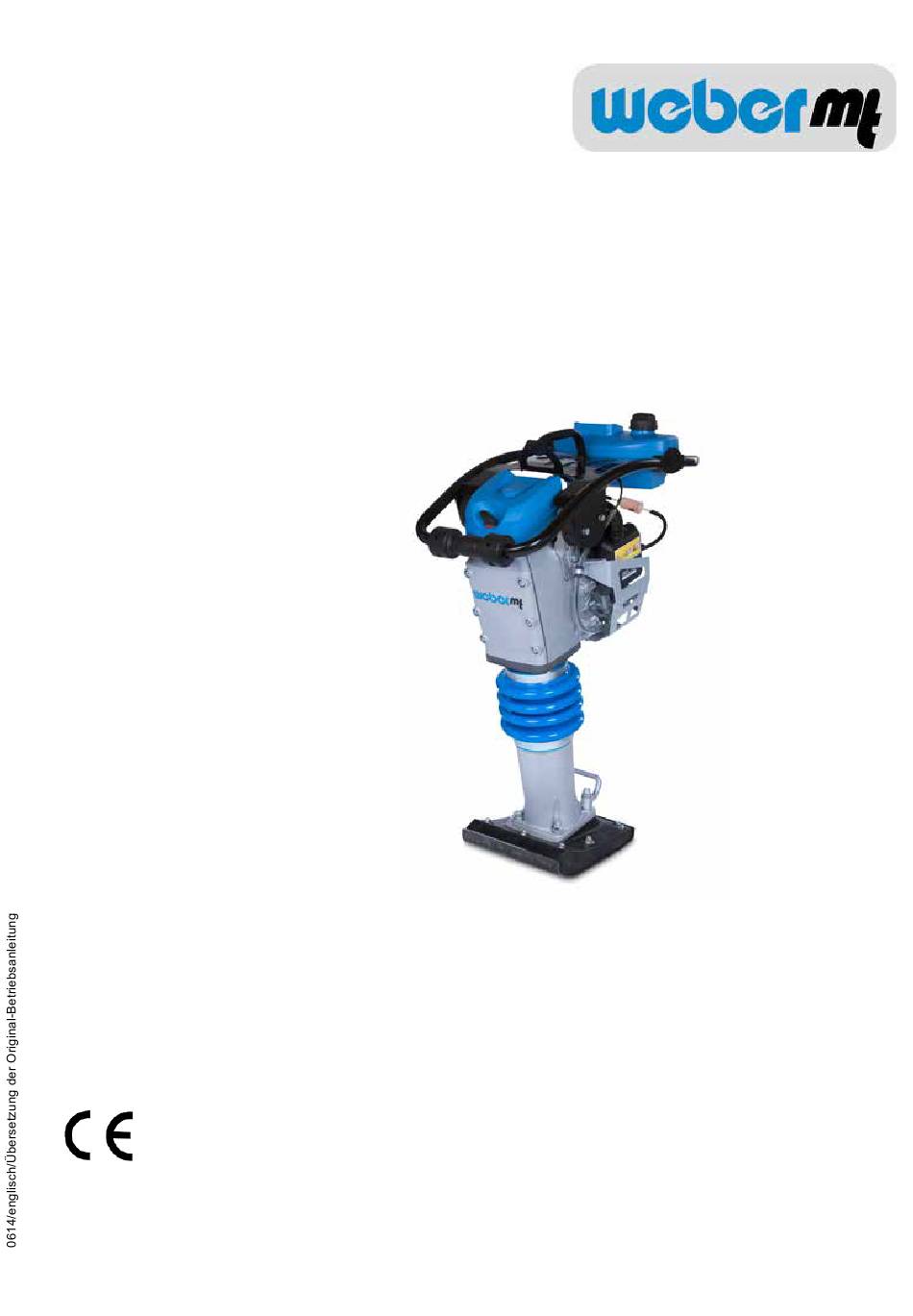

- Page 1 Operating and Maintenance Manual SRV 590 Honda GXR 120 from Serial-No. 4105648 Weber Maschinentechnik GmbH Im Boden 5 - 8 , 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: + 49 (0) 27 54 / 398 0 Fax: + 49 (0) 27 54 / 398 101 E-Mail: info@webermt.de...
- Page 2 SRV 590...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Tamping Taking out of operation Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses SRV 590... -
Page 4: Introduction
You can obtain information on the assembled Honda petrol engine and find a spare-part list for it at www.honda-engines-eu.com The valid conformity declaration is enclosed with every machine delivery. SRV 590... -
Page 5: Safety Guidelines
The tamper should only be used in technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The SRV 590 tamper is designed exclusively for compacting – sand – gravel –... - Page 6 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. SRV 590...
- Page 7 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves SRV 590...
-
Page 8: Graphic Presentation

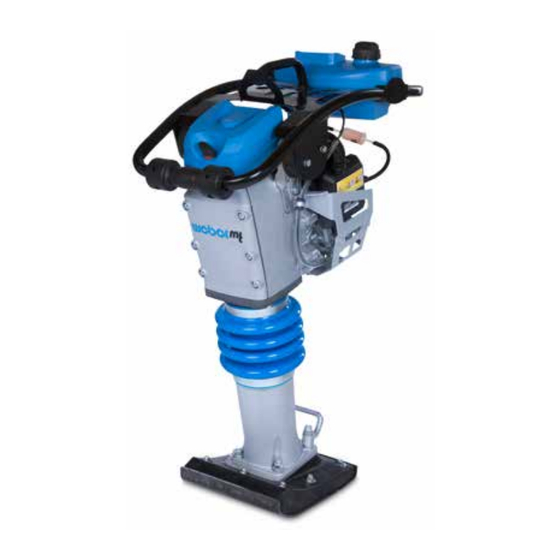

Graphic presentation Total overview SRV 590 Fuel tank Tamping system Gas lever Tamping foot Manual guidance rod Main filter Engine Secondary air filter Transport roller Handle Hearing protection (sticker) SRV 590... -
Page 9: Device Description
Device description The series SRV 590 tamper is used for road-building, canal construction, pipe laying and landscaping compaction tasks. Drive The tamper is powered by an air-cooled Honda gasoline engine. Force is transmitted via the centrifugal clutch directly to the tamping system. The compaction work is performed by the tamping foot. -
Page 10: Technical Data
Technical data SRV 590 Weight Operating weight CECE in kg Dimensions Overall length in (in mm) Overall width in (in mm) Height (in mm) 1035 Tamping foot width (in mm) Impact rate (/min) Stroke (in mm) 61,6 Drive Engine manufacturer... - Page 11 1 Description 2 TYPE ....................... 3 Serial number 4 Year of manufacture ......................5 Weight 6 Rated power kW ......................SRV 590...
-
Page 12: Activities Prior To Starting Work
Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. For work at the fuel system, have a suitable fire-extin- guishing agent at the ready. Fire, naked light, and smoking is forbidden! SRV 590... -
Page 13: Starting
The engine is equipped with an oil monitoring system. If the LED (1) is illuminated during the start process, you must interrupt the start process and check the oil level. Top off with oil as specified if the oil level is too low. SRV 590... -
Page 14: Tamping
To shut off the engine push the gas lever back beyond the idle lock-in setting (0/OFF) During breaks – even if they are short – the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against through conspicuous measures. SRV 590... -
Page 15: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. SRV 590... -
Page 16: Maintenance Work
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. SRV 590... - Page 17 Unscrew the fuel cock, including fuel filter (1) out of the fuel tank. Clean the fuel filter Replace fuel filter if damaged. For work at the fuel system, have a suitable fire-extin- guishing agent at the ready. Fire, naked light, and smoking is forbidden! SRV 590...
- Page 18 0.6 – 0.7 mm. Correct the electrode air gap or replace the spark plug if necessary. Only use spark plugs with the correct thermal value. This work may only be carried out when the engine is cold. 0.6 – 0.7 mm SRV 590...
- Page 19 When mounting the new tamping foot the nuts (1) must be tightened with a torque of 35 Nm. Mount the fastening nuts of the tamping foot using the plate springs as shown in the adja- Mounting arrangement of cent illustration. the plate springs SRV 590...
-
Page 20: Operating Fluids And Fill Levels
Clean, adjust, replace the spark plug Fuel cock closed Open fuel cock Engine runs at full Centrifugal clutch is Repair rpm, tamper does defective not tamp or tamps inadequately Unclean compac- Tamping foot is worn Change the tamping foot tion pattern SRV 590... -
Page 21: Storage
All bare parts / accelerator / – Oil / grease accelerator control cable / fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organization to discuss additional measures. SRV 590... - Page 22 SRV 590...
-
Page 23: Contact Addresses
Telefax + 48 (0) 22 - 739 70 – 82 02-863 Warszawa E-Mail info@webermt.com.pl In Tschechien WEBER MT s.r.o. Telefon + 42 (0) 776 222 216 V Piskovne 2054 + 42 (0) 776 222 261 278 01 Kralupy nad Vitavou E-Mail info@webermt.cz... - Page 24 > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe - Rückershausen Phone + 49 (0) 27 54 / 398 0 – Fax +49 (0) 27 54 / 398 101 SRV 590...
