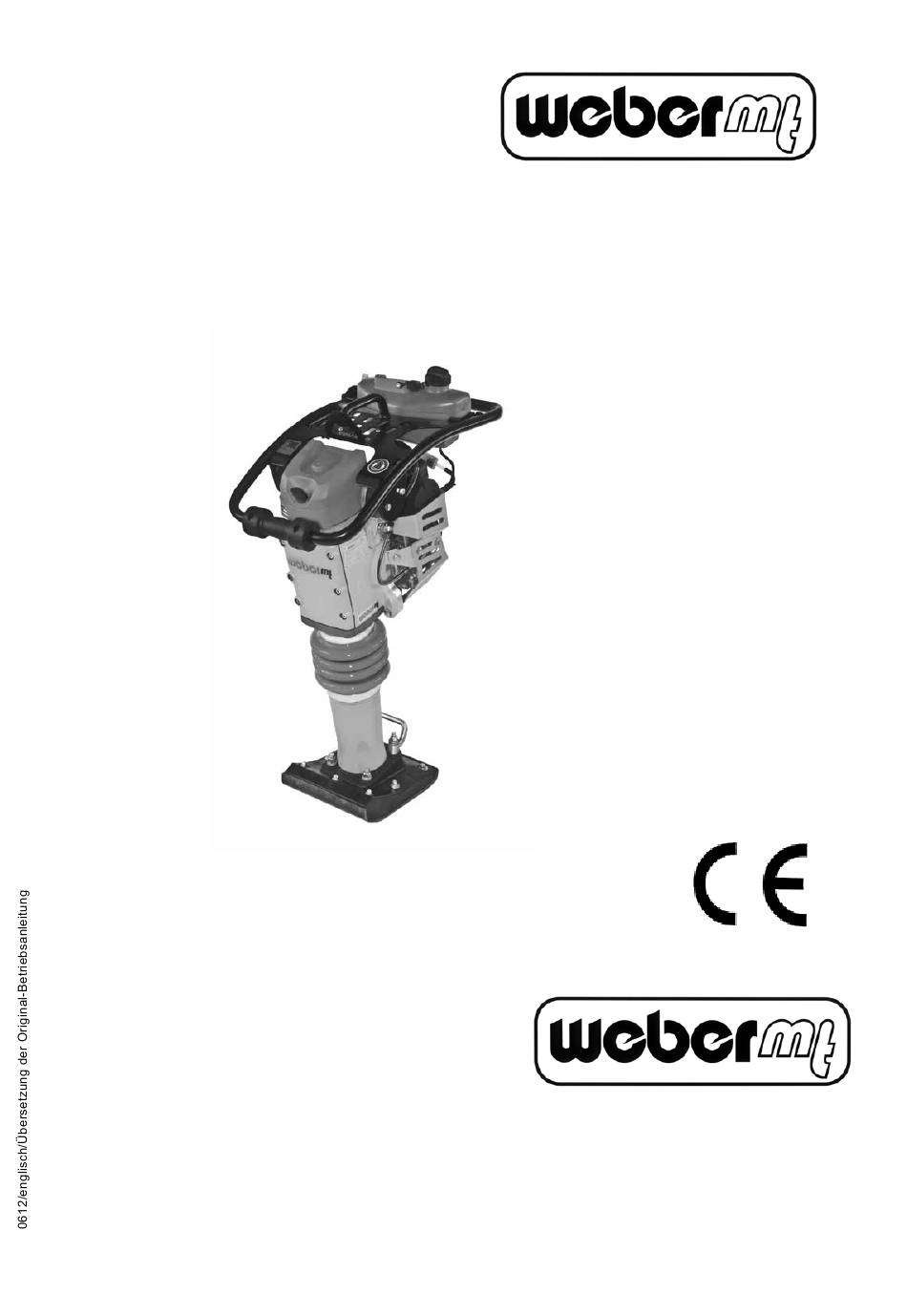

- Page 1 Operating and Mainte- nance Manual SrV 650 Subaru- robin er 12 Weber Maschinentechnik gmbH postfach 101465, 57326 Bad laasphe-rückershausen telephone + 49 27 54 / 398-0 Fax + 49 27 54 3 98-101 (switchboard) & 3 98-102 (spare parts) SRV 650...
- Page 2 SRV 650...
-
Page 3: Table Of Contents
Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Tamping Taking out of operation Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses SRV 650... -
Page 4: Introduction
You can obtain information on the assembled Robin-Subaru gasoline engine and find a spare-part list for it at www.robin-europe.de The valid conformity declaration is enclosed with every machine delivery. SRV 650... -
Page 5: Safety Guidelines
The tamper should only be used in technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The SRV 650 tamper is designed exclusively for compacting - Sand - Gravel... - Page 6 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. SRV 650...
- Page 7 Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves SRV 650...
-
Page 8: Graphic Presentation
SrV 650 Fuel tank Tamping system Gas lever Tamping foot Hand guide bracket Main filter Engine Secondary air filter Transport roller Handle Hearing protection (sticker) SRV 650... -
Page 9: Device Description

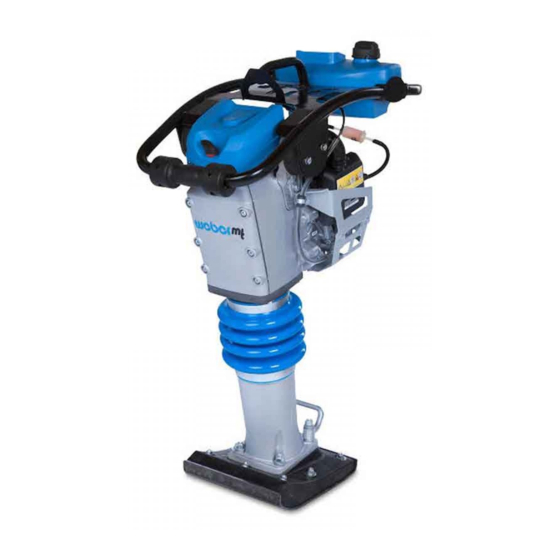

The series SRV 650 tamper is used for road-building, canal construction, pipe laying and landscaping compaction tasks. drive The tamper is powered by an air-cooled Subaru-Robin gasoline engine. Force is transmitted via the centrifugal clutch directly to the tamping system. The compaction work is performed by the tamping foot. -
Page 10: Technical Data
EN ISO 3744 and EN 500, in dB (A) Vibration values Root-mean-square acceleration value for hand-arm vibration ascertained in accordance with EN 500 in m/s² In accordance with directive 2006/42/EC, complying with the vibration values is the owner‘s responsibility. SRV 650... - Page 11 1 description 2 type ....................... 3 Serial number 4 Year of manufacture ......................5 Weight 6 rated power kW ......................SRV 650...
-
Page 12: Activities Prior To Starting Work
Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. For work at the fuel system, have a suitable fire-extin- guishing agent at the ready. Fire, naked light, and smoking is forbidden! SRV 650... -
Page 13: Starting
Allow the engine to warm up for a few minutes. When starting in enclosed spaces ensure adequate ven- tilation - danger of suffocation. Never use any starter spray. SRV 650... -
Page 14: Tamping
To shut off the engine push the gas lever back beyond the idle lock-in setting During breaks — even if they are short — the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against conspicuously. SRV 650... -
Page 15: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. SRV 650... -
Page 16: Maintenance Work
Only drain engine oil when at operating temperature. Danger of scalding due to hot oil. When working in the area of the engine compartment there is a danger of getting burnt Check the oil fill level with the oil dip stick. SRV 650... - Page 17 Remove the air filter insert (2) and the air filter fleece from the air filter enclosure or remove air filter cover. Clean air filter insert and air filter fleece as specified by the engine manufacturer, if there is damage or or extreme fouling. SRV 650...
- Page 18 Measure the electrode air gap (1), the gab should be 0.6 - 0.7 Correct the electrode air gap or replace the spark plug if necessary. Only use spark plugs with the correct thermal value. This work may only be carried out when the engine is cold. 0.6 - 0.7 mm SRV 650...
- Page 19 When mounting the new tamping foot the nuts (1) must be tightened with a torque of 35 Nm. Mount the fastening nuts of the tamping foot using the plate springs as shown in the adjacent illustration. Mounting arrangement of the plate springs SRV 650...
-
Page 20: Operating Fluids And Fill Levels
Spark plug fouled spark plug Fuel cock closed Open fuel cock engine runs at full rpm, tamper Centrifugal clutch is Repair does not tamp or defective tamps inadequately unclean compaction pattern Tamping foot is worn Change the tamping foot SRV 650... -
Page 21: Storage
Check fuel filter, change if necessary all bare parts/accelerator/accelerator - Oil/grease control cable/fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organi- zation to discuss additional measures. SRV 650... - Page 22 SRV 650...
-
Page 23: Contact Addresses
Telefax + 48 (0) 22 - 739 70 – 82 02-863 Warszawa E-Mail info@webermt.com.pl In Tschechien WEBER MT s.r.o. Telefon + 42 (0) 776 222 216 V Piskovne 2054 + 42 (0) 776 222 261 278 01 Kralupy nad Vitavou E-Mail info@webermt.cz... - Page 24 > internal vibrators and converters > rollers Weber MaScHinentecHniK gmbH im Boden 57334 Bad laasphe - rückershausen postfach 10 14 65 57326 Bad laasphe telephone + 49 27 54 / 398 0 - fax +49 27 54 / 398 101 SRV 650...
