Operating and
Maintenance Manual
SRV 600 i
Honda GX 100
SRV 600i
Weber Maschinentechnik GmbH
Im Boden 5 - 8 , 10
D-57334 Bad Laasphe-Rückershausen / Germany
Tel.: + 49 (0) 27 54 / 398 0
Fax: + 49 (0) 27 54 / 398 101
E-Mail: info@webermt.de
Web: www.webermt.de
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRV 600 i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weber mt SRV 600 i

Summary of Contents for Weber mt SRV 600 i

  • Page 1 Operating and Maintenance Manual SRV 600 i Honda GX 100 Weber Maschinentechnik GmbH Im Boden 5 - 8 , 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: + 49 (0) 27 54 / 398 0 Fax: + 49 (0) 27 54 / 398 101 E-Mail: info@webermt.de...
  • Page 2 SRV 600i...

  • Page 3: Table Of Contents

    Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Tamping Taking out of operation Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses SRV 600i...

  • Page 4: Introduction

    Introduction This operating and maintenance manual is designed to facilitate familiarization with your tamper, and enable you to maintain the tamper and use it in accordance with the proper application possibilities. When complying with the instructions in the operating and maintenance manual you help avoid hazards, reduce repair and downtime costs, and increase the reliability and service life of your tamper.

  • Page 5: Safety Guidelines

    Safety guidelines General All safety instructions must be read and complied with, non-compliance results in – Danger to life and limb of the user – Impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with.
  • Page 6 Operation Prior to starting work the owner of the tamper must be familiar with the work environment. The work environment includes obstacles in the work and traffic area, the bearing capacity of the ground, as well as the necessary safeguarding of the construction site in the area adjacent to public traffic;...
  • Page 7 Inspection Tampers must be inspected in accordance with appropriate implementation conditions and operating conditions, as needed; however an inspection to ensure operationally safe status must be performed by an expert at least once a year. The results of the inspection must be recorded in writing and must be stored at least until the next inspection.

  • Page 8: Graphic Presentation

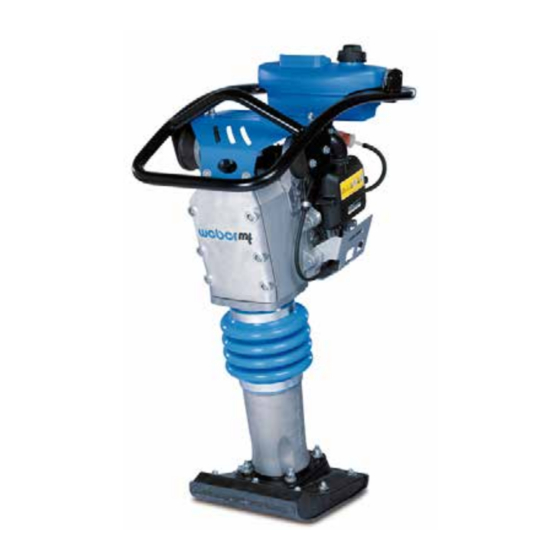

    Graphic presentation Total overview SRV 600 i Fuel tank Tamping system Gas lever Tamping foot Manual guidance rod Air filter Engine Hearing protection (sticker) SRV 600i...

  • Page 9: Device Description

    Device description The series SRV 600 i tamper is used for road-building, canal construction, pipe laying and landscaping compaction tasks. Drive The tamper is powered by an air-cooled Honda gasoline engine. Force is transmitted via the centrifugal clutch directly to the tamping system. The compaction work is performed by the tamping foot.

  • Page 10: Technical Data

    Technical data SRV 600 i Weight Operating weight CECE (in kg) Dimensions Overall length (in mm) Overall width (in mm) Height (in mm) 1040 Tamping foot width (in mm) Impact rate (/min) Stroke (in mm) Drive Engine manufacturer Honda Type...
  • Page 11 1 Description 2 TYPE ....................... 3 Serial number 4 Year of manufacture ......................5 Weight 6 Rated power kW ......................SRV 600i...

  • Page 12: Activities Prior To Starting Work

    Activities prior to starting work Transport When transporting the tamper on a vehicle, secure it with suitable restraints. Loading with crane Fit the crane hook into the lifting ring (1) and lift the machine onto the desired means of transport. Only use lifting machines with a minimum bearing capacity of 100 kg.

  • Page 13: Starting

    Starting After horizontal transport: Bring tamper into a vertical position and wait several minutes until the engine oil has collected in the lower area of the crankcase. Bring the gas lever into full-throttle lock-in position. Short circuit button to position (I/ON) Open the fuel cock (1).

  • Page 14: Tamping

    Tamping Bring the gas lever into full-throttle lock-in position. Only run machine within reach of the manual guid- ance rod (1). Compacting is only permissible at the full throttle gas lever position as there is an increase level of wear in the slip range of the centrifugal clutch.

  • Page 15: Maintenance Overview

    Maintenance overview Maintenance Maintenance interval Maintenance activity point Engine – Changing the engine oil After the first 10 operating hours – Re-tighten all accessible threaded connections – Clean air filter insert, check for Air filter damage, replace if necessary Every 50 operating hours / every 6 months Engine –...

  • Page 16: Maintenance Work

    Maintenance work Changing the engine oil Remove the oil dip stick (1). Open the drain plug (2) of the engine and drain oil. Only drain engine oil when at operating temperature. Screw in the oil drain plug (2) with new seal and top off with oil as specified.
  • Page 17 Change the fuel line filter Pull the fuel line (2) off the fuel filter (1) on both sides. Replace the filter with a new filter element. Adjust/replace the spark plug Pull off the spark plug connector (1) and unscrew spark plug. Clean the electrode (1) of the spark plug.
  • Page 18 Change the oil in the tamping system Unscrew the screw plug (1) from the fill opening. Tilt the tamper slightly and let the old oil drain into a suitable collection container. Set down the tamper and fill oil in as specified. Clean the screw plug and screw it into the fill opening.

  • Page 19: Operating Fluids And Fill Levels

    Operating fluids and fill levels Operating material Assembly Winter Summer Quality 600 i Engine SAE 10 W 40 0.3 L Engine oil Unleaded gaso- Gasoline line in accordance 3.0 L with DIN 51607 Tamper lower part Hydraulic oil HVLPD 68 1.0 L Troubleshooting Fault...

  • Page 20: Storage

    Action to be taken before long-term storage (longer than a month) – Clean thoroughly – Check watertight Entire soil compactor – If there are leaks, correct defects – Empty fuel and fill with clean fuel Fuel tank up to the lower edge of filler neck –...
  • Page 21 SRV 600i...
  • Page 22 SRV 600i...

  • Page 23: Contact Addresses
