Power supply
Turn off the power before connecting the LED strip to the power
L
230 V
Power
N
AC
Supply
Measure output (23-25 V DC)
before installing liniLED® system

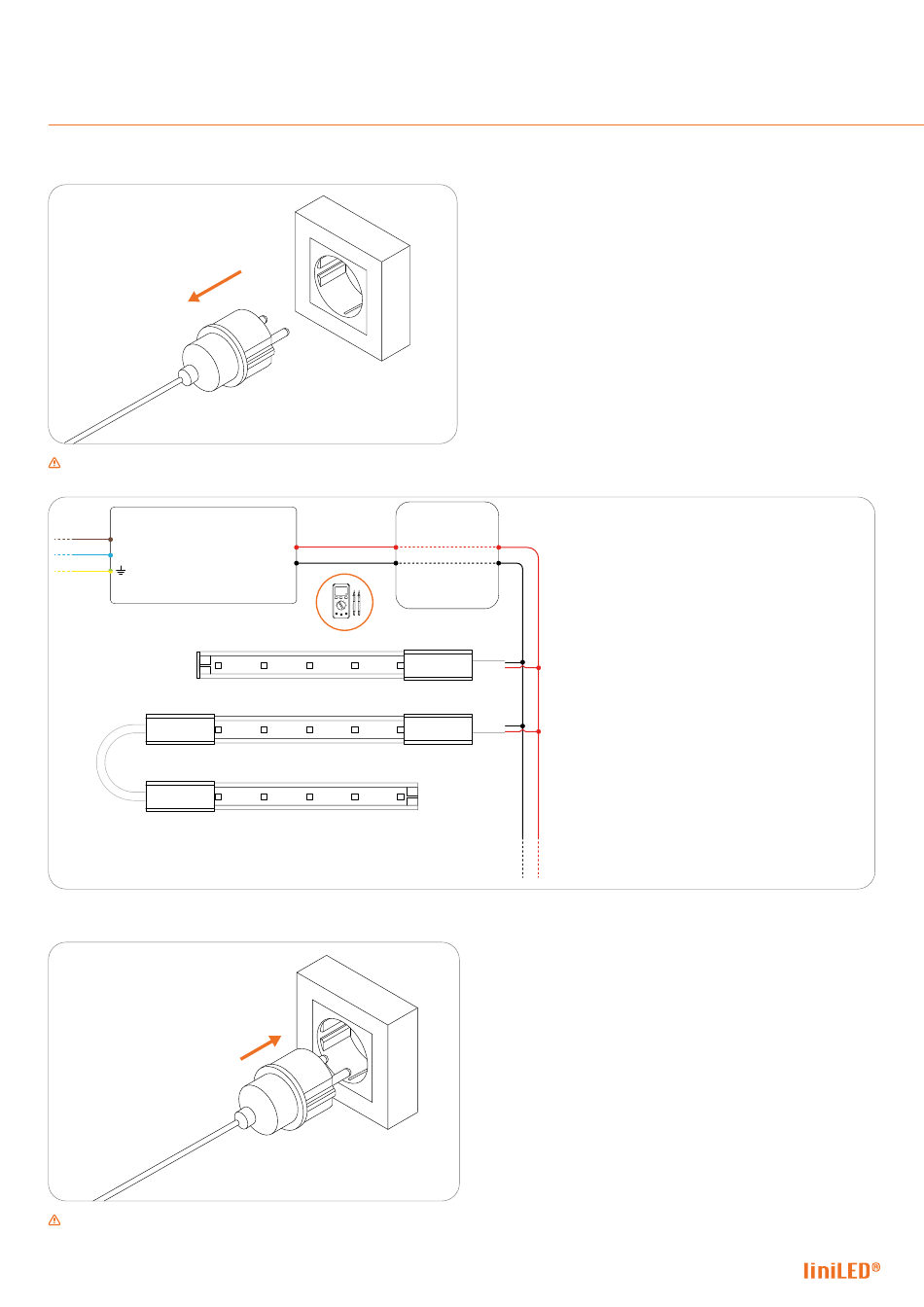

Connect the LED strip as indicated in the figure above. The wires should be connected as follows: Red (+) and Black (-).
Insert the power plug.
16
LED strip manual | liniLED® Top Power Colour
liniLED® Control
24 V
+
DC
-
(Optional)
