Solder - liniLED Top Power Colour Manual

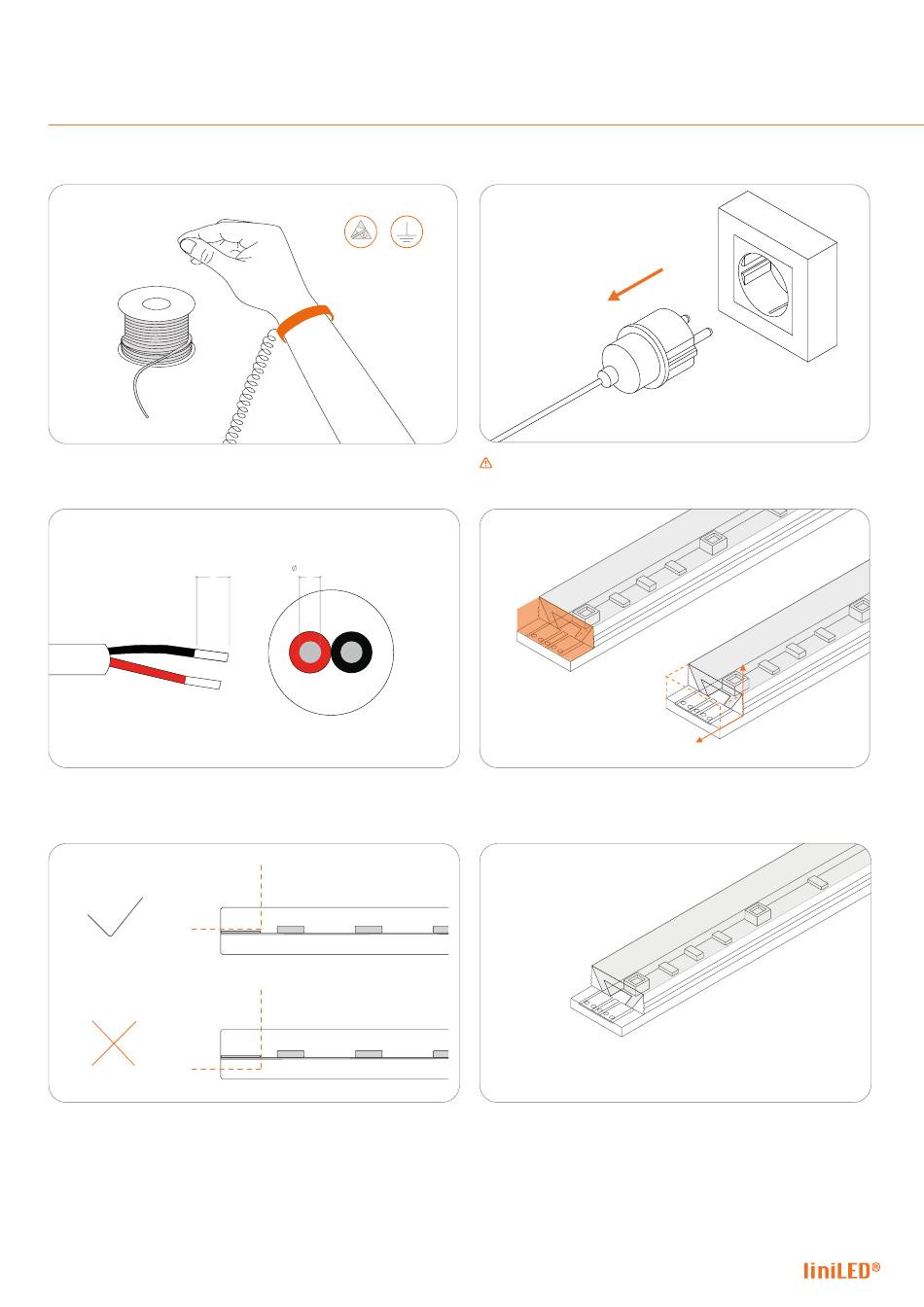

Solder

1
Work in an ESD protected environment. Make use of an anti-static
strap.
3
8 mm
Solder the wires to the PCB. We advise to use a cable with an area not
higher then 0.5 mm2.
5
Side view | Do not cut the PCB!
11 LED strip manual | liniLED® Top Power Colour
0.5 mm
2
2
Turn off the power. Make sure the wires are not under electric
current.
4
Top view | Only cut the LED strip extrusion on the dotted line of
the extrusion to prevent damaging the PCB. Carefully cut away this
part of the extrusion.
6
The end result after cutting the LED strip extrusion should look
similar to the image above.
