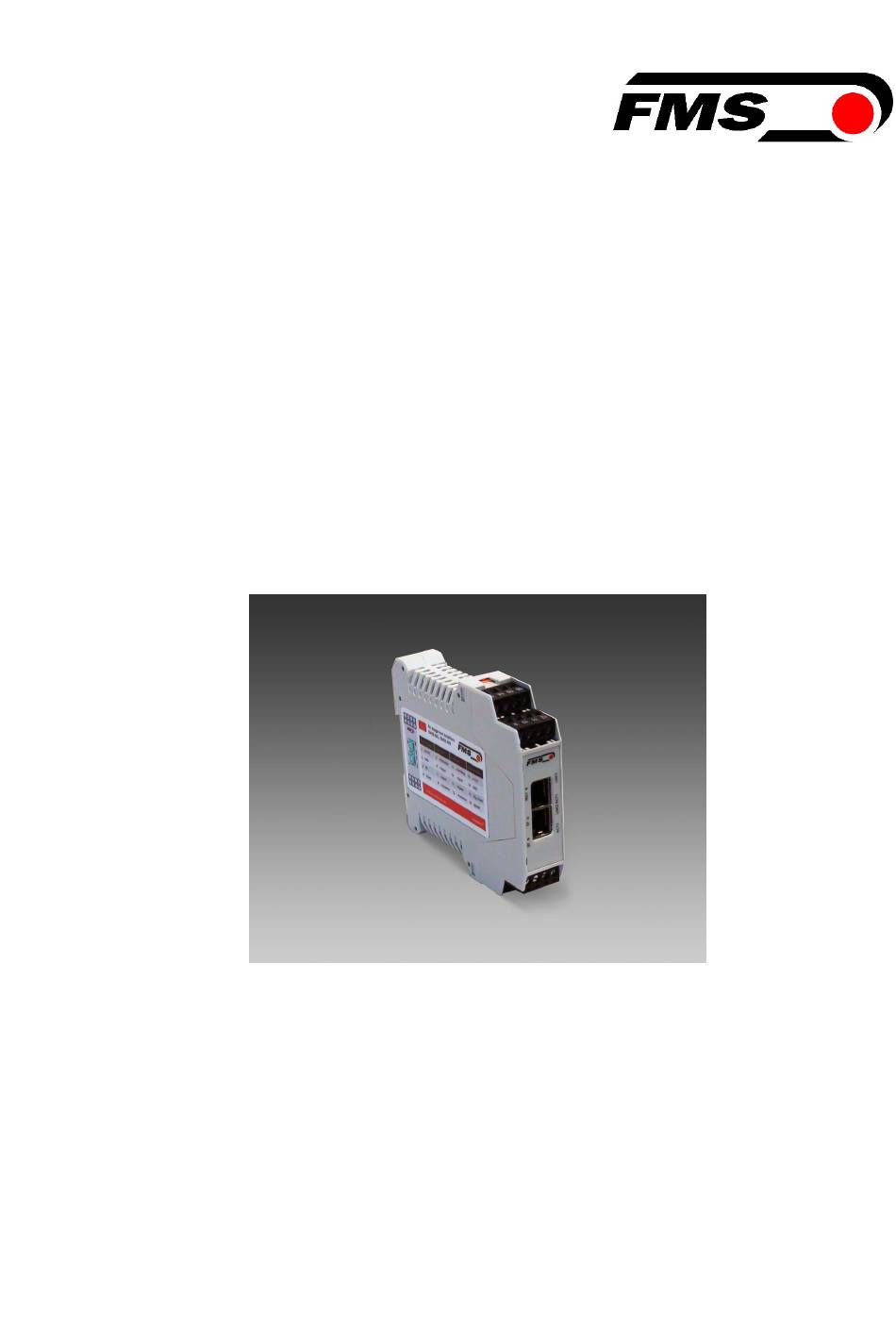

Operating Manual
EMGZ490A

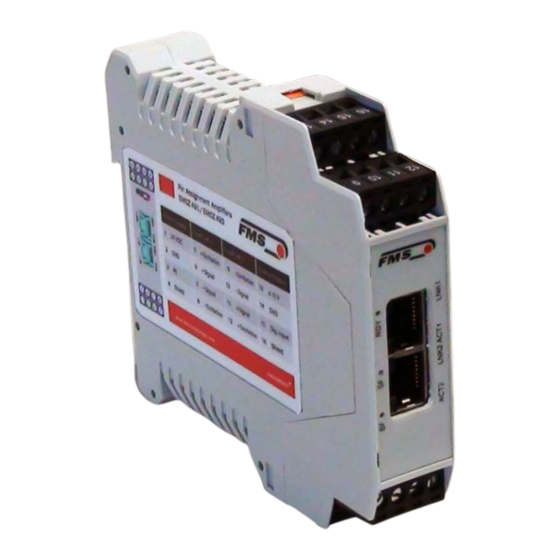

Tension Amplifier with integrated PROFINET Interface
Version 1.1
11/2016 NS
Firmware Version
V1.00
GSDML file
V1.12+ (08/14)
This operation manual is also available in German.
Please contact your local FMS representative.
Diese Bedienungsanleitung ist auch in Deutsch erhältlich.
Bitte kontaktieren Sie Ihren nächstgelegenen FMS Vertreter.
© by FMS Force Measuring Systems AG, CH-8154 Oberglatt – All rights reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FMS EMGZ490A
Summary of Contents for FMS EMGZ490A
- Page 1 This operation manual is also available in German. Please contact your local FMS representative. Diese Bedienungsanleitung ist auch in Deutsch erhältlich. Bitte kontaktieren Sie Ihren nächstgelegenen FMS Vertreter. © by FMS Force Measuring Systems AG, CH-8154 Oberglatt – All rights reserved...
-
Page 2: Table Of Contents
Safety Instructions ................4 Description Conditions ....................4 List of safety instructions ................... 5 Product Description ................ 6 Block Diagram EMGZ490A ..................6 System Description EMGZ490A ................. 6 Quick Installation Guide ..............7 Preparations for Set-up ....................7 Installation Procedure ....................7 Installation and Wiring .................... - Page 3 Operation Manual EMGZ490A Offset Compensation and Calibration via the Web Browser ........30 Ethernet Settings ..................... 31 System Settings ......................32 Dimensions ................... 33 Technical Specification ..............34 10.1 PROFINET Characteristics ..................34 10.2 Technical Features ....................34 10.3 Hardware Specification .................... 35...
-
Page 4: Safety Instructions
Operation Manual EMGZ490A 1 Safety Instructions All safety related regulations, local codes and instructions that appear in the manual or on equipment must be observed to ensure personal safety and to prevent damage to the equipment connected to it. If equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. -
Page 5: List Of Safety Instructions
There is the possibility of a system overload, if such a service is nonetheless used. The consequence is a connection interruption between EMGZ490A and PLC. The interruption usually lasts between 3-5 seconds. Afterwards, a new connection is automatically established again. -
Page 6: Product Description
The measured force values are accessible via the PROFINET bus and on an analog voltage output. The amplifiers are suitable for tension measurement with all FMS force sensors. Either one or two sensors can be connected to one amplifier. -
Page 7: Quick Installation Guide
Operation Manual EMGZ490A 3 Quick Installation Guide The set-up of the EMGZ490A and force sensors is limited to only the installation procedure, offset compensation and the calibration. 3.1 Preparations for Set-up 1. Read the Operation Manual of your force measuring sensors 2. -
Page 8: Wiring The Amplifier
The cable must be installed separate from power lines. Fig. 2a: Wiring Diagram EMGZ490A.R Color scheme (IEC60757) and pin codes are valid for FMS components, only! Fig. 2b: Wiring Diagram EMGZ490A.W Color scheme (IEC60757) and pin codes are valid for FMS components, only! - Page 9 Operation Manual EMGZ490A Fig. 2c: Ethernet Connector Color scheme (IEC60757) and pin codes are valid for FMS components, only! Caution Bad earth connection may cause electric shock to persons, malfunction of the total system or damage of the electronic unit! It is vital to ensure that proper earth connection is done.
-
Page 10: Calibration Of The Measuring System
The second method is based on a calculation method in conjunction with the FMS Calculator. This Calculator can be down loaded from the FMS web page. FMS recommends using the method with the weight (see Fig. 3) since it delivers the most accurate results. -
Page 11: Calibration Procedure
Operation Manual EMGZ490A 4.3 Calibration Procedure 1. Activate web interface (ref. to chapter 8.1) and call web page „Offset/Calibration over the web browser” (see chapter 8.3). 2. Connect volt meter to the voltage output (Fig. 2, terminal 13/14) 3. Connect first force sensor to the amplifier (see Fig. 2). -
Page 12: Gain
It replaces the binary value (first digit). This calculation method is also used by the FMS Calculator tool. Thus it is possible to use the gain value calculated by the FMS Calculator directly in the calibration. The gain value is then In this entered in the parameter set of the amplifier (see chapter 8.2 “Parameter Setting”). -
Page 13: Limit Violations
Test Rules: The FMS force sensors deliver at the rated nominal force at the output 9mV. The maximum load at the mechanical hard stop is 12.4mV. The amplifier checks the overload in the positive measuring direction (red point) as well as in the negative direction. -
Page 14: Description Of Signal-Leds
Fig. 4: Signal LEDs 5 Integration in a PROFINET-network The force measuring amplifiers of the EMGZ490A series were design to work in an PROFINET-network whereas the amplifier acts as an IO-device (Slave) and die IO- Controller (or PLC) as a master. -
Page 15: Tcp/Ip Configuration
The IP-address is assigned to each device via the PLC. The device must have an IP-address of 0.0.0.0 after power up to enable the assignment of the final IP-address. This is the case after each EMGZ490A restart. Static IP-address: A static IP-address is required to enable the PLC accessing a web interface. -
Page 16: Configuration
Operation Manual EMGZ490A 6 Configuration The configuration of the EMGZ490A can be performed either over a web interface or over PROFINET. In both case the same parameters are configured. 6.1 Description of Parameters PROFINET Filter Use: The amplifier provides a low-pass filter for PROFINET data to prevent noise and interferences being overlaid to the PROFINET output. - Page 17 Operation Manual EMGZ490A Tension at Max. Output Use: This parameter defines what force value (N, kN, lb, g, kg) corresponds to the maximum output of the amplifier (10V). Note: By changing the units to lb the whole unit system will change from metric to imperial units.
-
Page 18: Cyclic Data Traffic
Operation Manual EMGZ490A 6.2 Cyclic Data Traffic After a successful system boot the IO-controller and associated IO-devices can start exchanging cyclic process data. The following table shows which data are transmitted and in which form. Cyclic Data User Data Data Type... -
Page 19: Acyclic Data Traffic
Operation Manual EMGZ490A 6.3 Acyclic Data Traffic After a successful system boot the IO-controller and associated IO-devices can start exchanging acyclic data. The table below shows which parameters and instructions are transmitted. Parameter Data Range Description Instruction Type 0x01 Device-ID... - Page 20 Operation Manual EMGZ490A Parameter Data Range Description Instruction Type 0x23 R/W Scaling unsigned #0.000 Determines at Analogue long which force the Output (unsigned analog output 200‘000‘000 32 Bit) reaches its maximal value of 0x24 R/W Cut-off unsigned #0.0 Cut-off frequency...
-
Page 21: Profinet Communication
PROFINET and send back the status or the data to the computer. 7.2 Services and Protocols The EMGZ490A is certified in accordance with the PROFINET standard version 2.2 Conformance Class B and can be loaded according to PROFINET Netload Test1, Netload- Class 1. -
Page 22: Limitations
Operation Manual EMGZ490A 7.3 Limitations In order for the EMGZ490A to not reach system limitations, one should avoid the use of some services during operation. These services are: • Port scanning • Web services • Stress tests • As well as all other not-PROFINET related services and protocols •... -
Page 23: Functional Blocks, Example
Operation Manual EMGZ490A 7.4 Functional Blocks, Example Three functional blocks (FB1, FB2, FB3) were configured. These FBs were loaded to the controller Name Description Function Reads a data package from the FMS_READ_FB specified slot and index Writes a data package from the... -
Page 24: Data Blocks
Operation Manual EMGZ490A 7.5 Data Blocks In a controller, data blocks can be configured. As FBs they can be easier apply and monitored by the computer. Basically data blocks are structures that may contain different variables. Below three data blocks (DB1, DB2, DB3) were defined. -
Page 25: Trigger Read-/Write-Instructions
Operation Manual EMGZ490A 7.6 Trigger Read-/Write-instructions Proceed as follows to initiates a Read-/Write-instruction by the controller: ● Read-instruction: The index "FMS_ACYCLIC_DB." INDEX must be written to the variable table of the SIMATIC Manager or in an application in the controller. Using a one-time write trigger "FMS_TRIGGER_DB". -
Page 26: Configuration File Gsdml
Operation Manual EMGZ490A 7.7 Configuration File GSDML Thus, the acyclic data traffic can operate independently from the cyclic, and the two don’t interfere with each other, a new module in the PROFINET IO-device configuration was introduced. The graph (Fig. 8) shows the actual module configuration: Fig. -
Page 27: Web Interface
Using the web interface requires knowledge of the IP address. Your IT system administrator can provide information about the assigned addresses. After entering the IP address in your web browser the home page of EMGZ490A will appear (see Fig. 10). Caution The web interface may only be used in the test mode since data communication can interfere with the PLC. - Page 28 Operation Manual EMGZ490A The web page Current Reading shows the actual values of the amplifier. The first line “Tension” shows the tension at the input in the configured unit of measure. In the second line “Output” indicates the output voltage shown in Volt.
-
Page 29: Parameter Setting
Operation Manual EMGZ490A 8.2 Parameter Setting The web page Parameters provides the possibility to configure the amplifier via the web interface. It is to notice that in a PROFINET-environment this is usually done via the PLC Fig. 12: Parameter list... -
Page 30: Offset Compensation And Calibration Via The Web Browser
Operation Manual EMGZ490A 8.3 Offset Compensation and Calibration via Web Browser .For gain adjustment the page Offset / Calibration is available. This page offset compensation and calibration. These functions are also available via the PLC. If the offset and gain values known, they can be entered directly to these parameters. -
Page 31: Ethernet Settings
Operation Manual EMGZ490A 8.4 Ethernet Settings This page displays the actual TCP / IP-configuration. It cannot be changed via the web interface. Changes to this configuration have to be done via your PLC. Fig.14: Ethernet Settings 30.08.2019... -
Page 32: System Settings
Operation Manual EMGZ490A 8.5 System Settings Via the page System Settings, the internal firmware version is displayed. Furthermore, a new firmware can be up-loaded. Fig. 15: System Settings 30.08.2019... -
Page 33: Dimensions
Operation Manual EMGZ490A 9 Dimensions Fig. 16: Dimensions EMGZ490A.R Fig. 17: Dimensions EMGZ490A.W 30.08.2019... -
Page 34: Technical Specification
Device ID via MAC- Setting device-ID over MAC-address resp. configuration of address MAC-address via external IO-Pin Remote Flash Update Specially developed Flash-update for up-loading new firmware Web service Measuring data can be requested via http, EMGZ490A can be configured and adjusted. 30.08.2019... -
Page 35: Hardware Specification
Operation Manual EMGZ490A 10.3 Hardware Specification Funktion Description Number of Channels 1 channel for 2 force sensors Sensor Supply 5 VDC, max. 30mA, high stability Input Signal Range 0...9mV (max. 12.5mV) Resolution of A/D-Converter +8191/-8192 Digit (14Bit) Analogue Output 0…10V min. 1.2kΩ... - Page 36 Operation Manual EMGZ490A MS Force Measuring Systems AG FMS Italy FMS USA, Inc. FMS UK Aspstrasse 6 Via Baranzate 67 2155 Stonington Ave. Suite 119 Highfield, Atch Lench Road 8154 Oberglatt (Switzerland) I-20026 Novate Milanese Hoffman Estates, IL 60169 USA Church Lench Tel.
