Operating Instructions

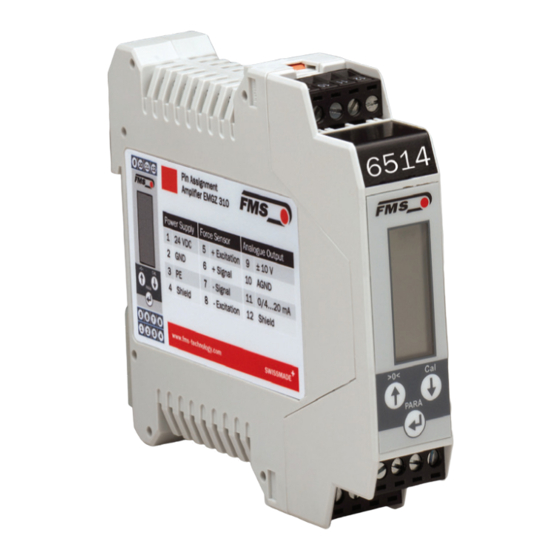

EMGZ310
Compact digital measuring amplifier
EMGZ310.ComACT
Digital Tension Measuring Amplifier with Optional Operation
via FMS-comACT App
Document version
2.32
10/2020 NS
Firmware EMGZ310
V 1.14
Firmware EMGZ310.ComACT
V2.10
EMGZ310
EMGZ310.ComACT
Diese Bedienungsanleitung ist auch in Deutsch erhältlich.
Bitte kontaktieren Sie Ihre lokale FMS Vertretung.
© by FMS Force Measuring Systems AG, CH-8154 Oberglatt – All rights reserved.
Advertisement
Table of Contents
Related Manuals for FMS EMGZ310
Summary of Contents for FMS EMGZ310
- Page 1 Document version 2.32 10/2020 NS Firmware EMGZ310 V 1.14 Firmware EMGZ310.ComACT V2.10 EMGZ310 EMGZ310.ComACT Diese Bedienungsanleitung ist auch in Deutsch erhältlich. Bitte kontaktieren Sie Ihre lokale FMS Vertretung. © by FMS Force Measuring Systems AG, CH-8154 Oberglatt – All rights reserved.
-
Page 2: Table Of Contents
Operating Instruction EMGZ310, EMGZ310.ComACT 1 Table of Contents TABLE OF CONTENTS ..........................2 SAFETY INFORMATION ........................... 3 Presentation of Safety Information ..................... 3 2.1.1 Danger that Could Result in Minor or Moderate Injuries ............... 3 2.1.2 Note Regarding Proper Function ....................3 General Safety Information ........................ -
Page 3: Safety Information
Operating Instruction EMGZ310, EMGZ310.ComACT 2 Safety Information All safety information, operating and installation regulations listed here ensure proper function of the device. Safe operation of the systems requires compliance at all times. Noncompliance with the safety information or using the device outside of the specified performance data can endanger the safety and health of persons. -
Page 4: General Safety Information
Operating Instruction EMGZ310, EMGZ310.ComACT 2.2 General Safety Information The function of the measuring amplifier is only ensured with the components in the specified layout to one another. Otherwise, severe malfunctions may occur. Thus, observe the mounting information on the following pages. - Page 5 NOTE: Changes or modifications made to this equipment not expressly approved by FMS Force Measuring Systems AG may void the FCC authorization to operate this equipment. Radiofrequency radiation exposure Information: This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment.
-
Page 6: Notes Réglementaires
à ses frais. NOTE: Des changements ou modifications apportés à cet équipement sans l’autorisation expresse de FMS Force Measuring Systems AG peuvent invalider l’agrément d’utilisation de cet équipement accordé par la FCC. Informations sur l’exposition aux rayonnements radioélectriques Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies... -
Page 7: Product Description
(1 measuring point, 1 or 2 force sensors). Amplifier configuration is straightforward with the parameters being set using either three easily accessible keys or your smartphone/tablet. The free FMS- ComACT app is available for download for IOS and Android devices, and makes parameter setting and value reading as efficient and comfortable as never before. -
Page 8: Quick Guide/Quick Start
Operating Instruction EMGZ310, EMGZ310.ComACT 4 Quick Guide/Quick Start In these operating instructions, commissioning of the measuring amplifier is limited to the description of the installation procedure, offset compensation, and system calibration. 4.1 Preparations for Parameterization Read the operating instructions of the selected force sensor carefully. -
Page 9: Force Sensor Installation
Operating Instruction EMGZ310, EMGZ310.ComACT 4.4 Force sensor installation The force sensors are mounted in line with the mounting instructions of the respective products. The mounting instructions are included with the force sensors. 4.5 Electrical Connections One or two force sensors can be connected to the amplifier. When two sensors are used, they are connected in parallel internally. - Page 10 Operating Instruction EMGZ310, EMGZ310.ComACT For easy installation, the terminal blocks can be removed from the main body Figure 4: Detachable terminal blocks: use a small slotted screwdriver as a lever Warning Poor grounding can result in electric shocks for persons, malfunctions of the overall system or damage to the measuring amplifier! Proper grounding must always be ensured.
-
Page 11: Operation And Configuration
Operating Instruction EMGZ310, EMGZ310.ComACT 5 Operation and configuration Power up the EMGZ 310 Connect the first force sensor Check whether applying a force in measuring direction (in the direction of the red point) on the first sensor results in a positive output signal. If not, swap the two signal wires of this force sensor If applicable, connect the second force sensor. - Page 12 Operating Instruction EMGZ310, EMGZ310.ComACT Controls Button Description Change the selections, increase / decrease the values or choose Scroll up or down the parameter lists Enter >0< + PARA > 3 Sec. Start Offset compensation precedure CAL + PARA > 3 Sec.
-
Page 13: Calibration Of The Measuring System
Operating Instruction EMGZ310, EMGZ310.ComACT 6 Calibration of the Measuring System 6.1 Offset Compensation Using offset compensation, the weight of the measuring roller is compensated and the measuring system “zeroed”. Offset compensation must always be executed prior to the actual calibration. The measuring roller must not be loaded during the procedure. -
Page 14: Calibrating In Force Mode
If e.g. two force sensors with a nominal force of 500 N each are connected, the system force is 2 x 500 N = 1000 N. The nominal force of FMS force sensors is indicated on the type label. You can modify the value with Save the changes with Enter the weight (GAIN) connected to the rope. - Page 15 Operating Instruction EMGZ310, EMGZ310.ComACT Modify the value with until the voltage output correlates with the weight. Save the changes with The display will return to the main screen The calibration procedure is complete 21.10.2020...
-
Page 16: Parameter List
Operating Instruction EMGZ310, EMGZ310.ComACT 7 Parameter list Parameter Name Description Output This parameter determines the current output signal of the amplifier. The voltage output (± 10 V) is also available in parallel Selection 0 to 20 mA; 4 to 20 mA... - Page 17 Operating Instruction EMGZ310, EMGZ310.ComACT Sys_F The system force indicates which measuring force capacity is installed in the measuring roller. E.g., if two 500 N force sensors are installed in the roller, 1‘000 N must be entered. In the case of a one-sided measurement, hence is one 500 N force sensor is used, 500 N must be entered.
- Page 18 Operating Instruction EMGZ310, EMGZ310.ComACT Mode The Device Mode determines the functionality of the amplifier. If set to Volt Gauge, force values will be displayed only in Volt (V) or mA. Force units will not be available anymore. Selection kgkNN; V...
-
Page 19: Fms Comact App Tm
If you have purchased an EMGZ310.ComACT measuring amplifier you are able to display actual readings and configure the amplifier via the FMS-ComACT app. You can identify the type of amp on the type label. The EMGZ310.ComACT has also the last 4 digits of its serial number printed on the front housing. - Page 20 Operating Instruction EMGZ310, EMGZ310.ComACT Download FMS Overview with all Display of actual “Configure” ComACT amplifiers within readings with the requires a the transmitting selected settings password. Google Play range. (unit, gain, output, The password is Store (Android); etc.) preset to “3231”...
-
Page 21: Data Recording
Operating Instruction EMGZ310, EMGZ310.ComACT 8.2 Data recording Measurement data lengths can be recorded with different interval. The data is stored in .csv format and can be sent from your mobile device via the most common channels. For evaluation you can use any spreadsheet program. - Page 22 Operating Instruction EMGZ310, EMGZ310.ComACT The name of the export .csv file contains the following information Figure 8: file name Note In each export file, you will find the parameter settings of the amplifier. This can be of help to document the settings.
-
Page 23: Dimensions
Operating Instruction EMGZ310, EMGZ310.ComACT 9 Dimensions Figure 9: dimensions 21.10.2020... -
Page 24: Technical Data
Option V05: ± 2.5 mV Resolution A/D converter ± 10'000 Digit (14 Bit) Configuration 3 keys and display of the values via integrated LCD optional via FMS-ComACT app on your smartphone or tablet. Protection class IP 20 Power supply 24 VDC (18 to 36 VDC)
