The "Process Data" section is used to define the IO-Link process data to link to Modbus TCP side (Fig. 7).

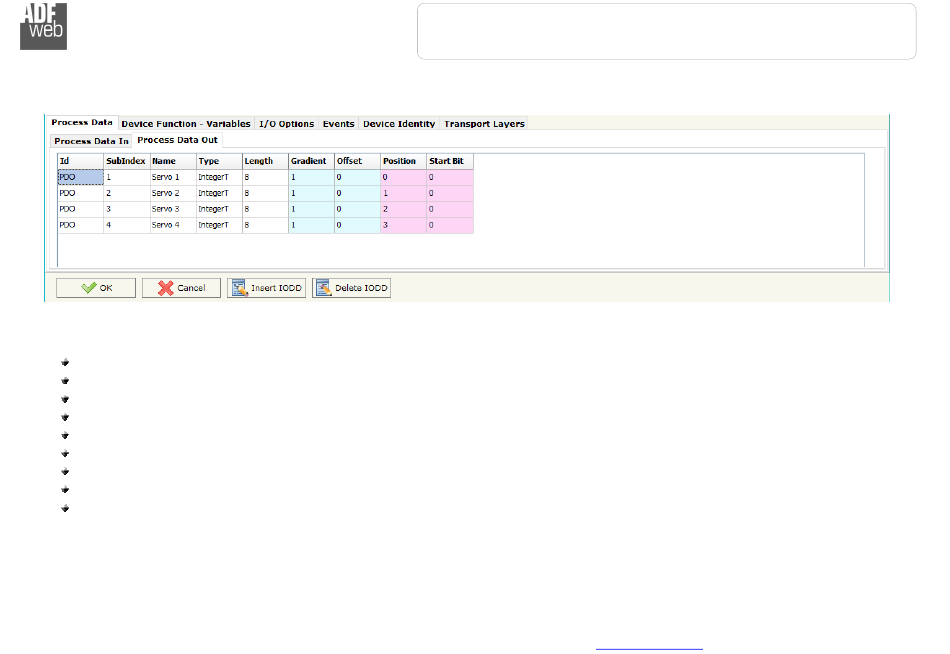

Figure 7: "Process Data" section
The meanings of the fields are:
In the field "Id" the Id of the IO-Link process data is defined;
In the field "SubIndex" the subindex of the IO-Link process data is defined;
In the field "Name" the name of the IO-Link process data is defined;
In the field "Type" the data format of the IO-Link process data is defined;
In the field "Length" the bit length of the IO-Link process data is defined;
In the field "Gradient" the multiplication factor of the IO-Link process data is defined;
In the field "Offset" the offset of the IO-Link process data is defined;
In the field "Position" the starting byte of the internal memory arrays where mapping/getting the value is defined;
In the field "Start Bit" the starting bit of the byte of the field "Position" is defined.
