Summary of Contents for jbc KHT470A

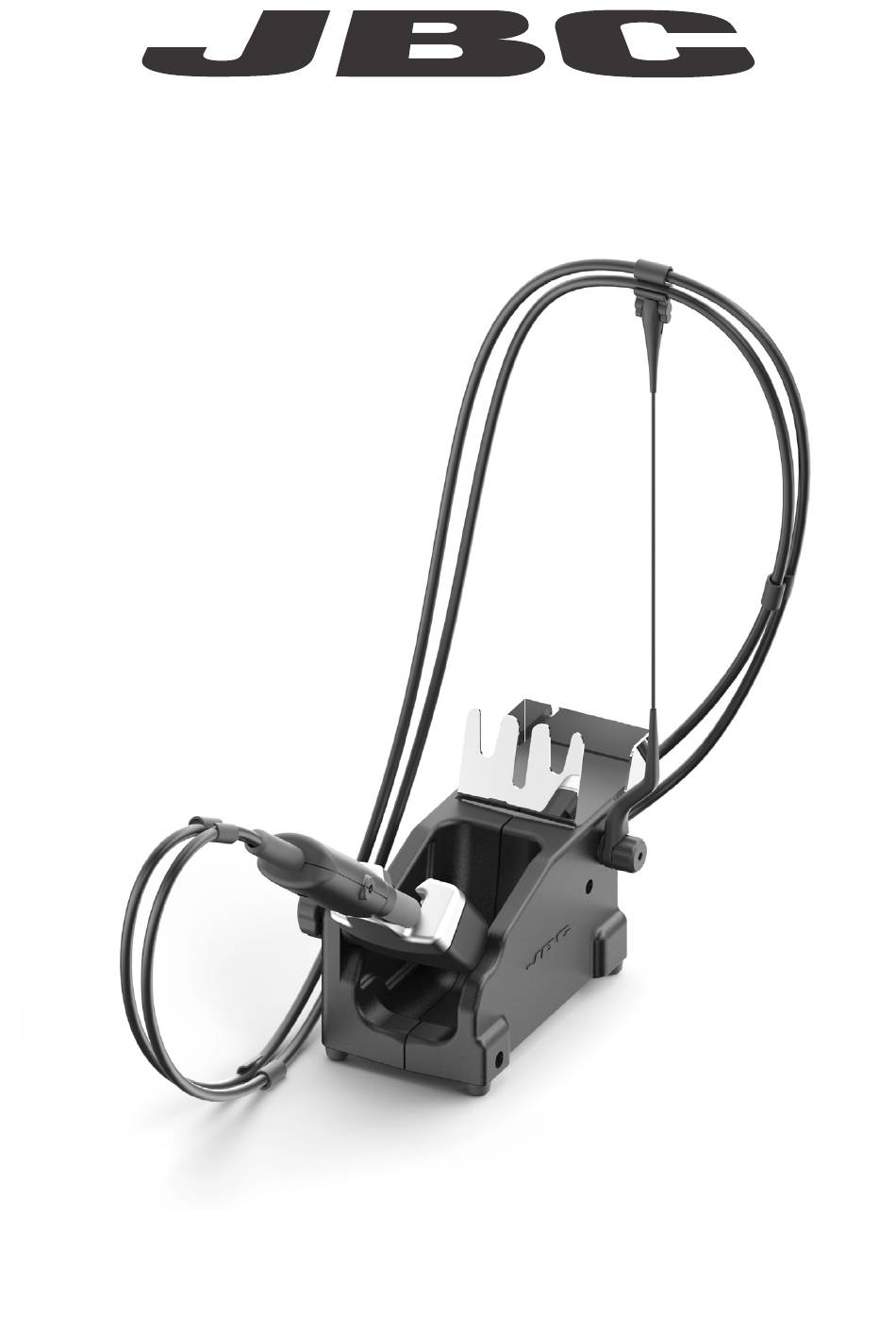

- Page 1 INSTRUCTION MANUAL HD Tweezers Kit Ref. KHT470A...
- Page 2 Stand for HT470 .....1 unit Screwdriver ....1 unit Tweezers ......1 unit Ref. HDT-SE Ref. 0023174 Ref. HT470-A w w w.jbctools.com INSTRUCTION MANUAL HD Tweezers Kit Ref. KHT470A Stand cable 1m ..2 units Cable flange....1 unit Manual......1 unit Ref. 0011283 Ref. 0010546 Ref: 0014339...
- Page 3 w w w.jbctools.com Features Control Unit (Required but not supplied) Stand Ref. HDT-SE C470 Cartridges Termal Tweezers (Required but not supplied) Ref. HT470-A...
- Page 4 HT470-A Changing cartridges 1. Unlocking 2. Removing Unlock the fi xing screws. Place the cartridges in the extractor and pull the tweezers to remove them. 3. Inserting 4. Locking Use the grooves to insert the cartridges as far Lock the fi xing screws. as the mark *Important It is essential to insert the cartridges as far as the mark for a proper connection.
- Page 5 w w w.jbctools.com Adjustable Stand Cable holder Ref. 0010546 HT-SE...
- Page 6 - Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 7 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the stand for any other purpose than soldering or rework. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 8 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
