Summary of Contents for jbc DIT-D

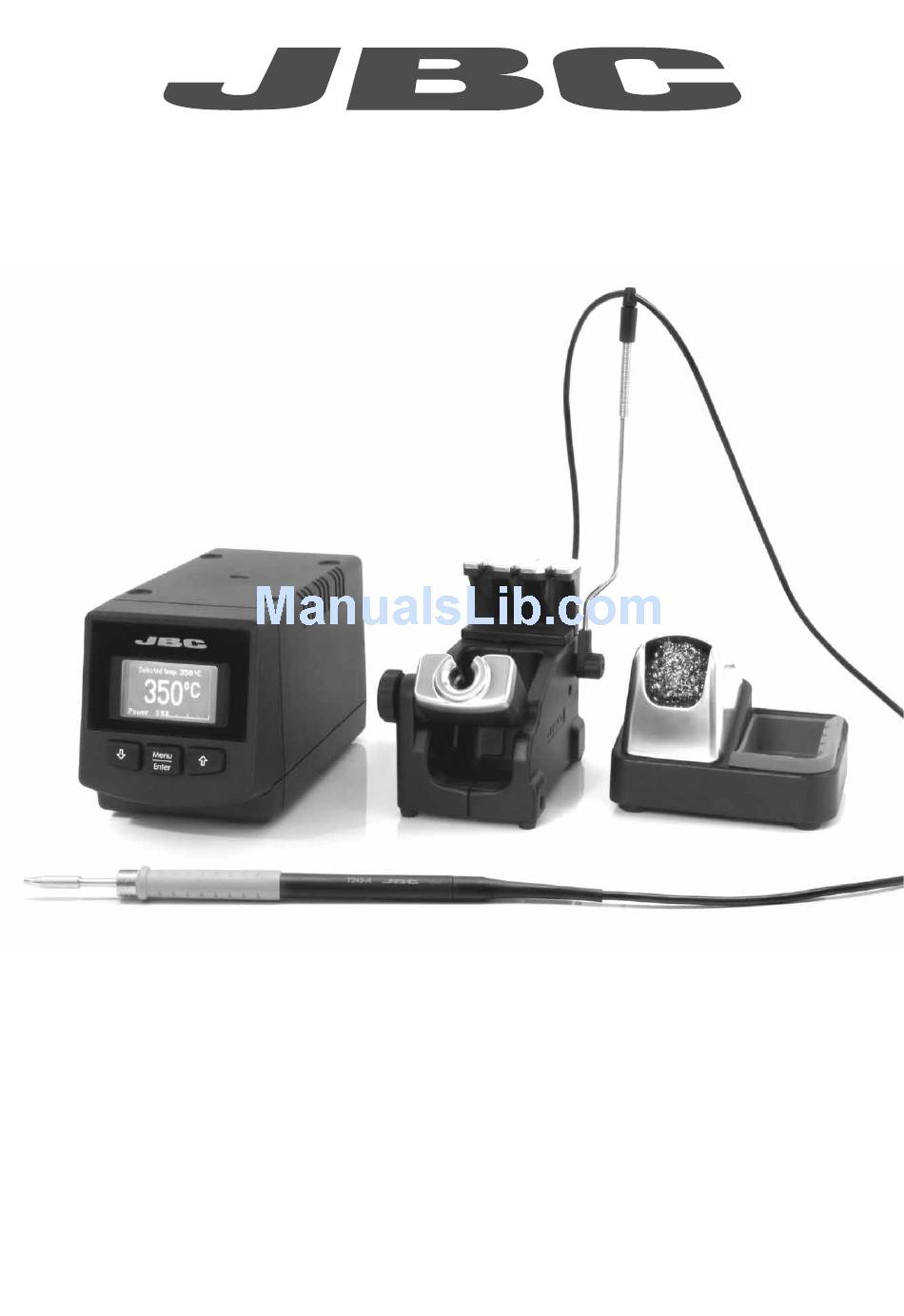

  • Page 1 English Premium Soldering station Ref. DIT-D...

  • Page 2: Packing List

    Sponge ......1 unit Cartridge ......1 unit Ref. CL9885 Ref. S0354 Ref. C245903 Stand cable ....1 unit Power Cord .....1 unit Manual .......1 unit Ref. 0011283 Ref. 0009417 (100V/120V) Ref. 0014651 0009401 (230V) w w w.jbctools.com Premium soldering station Ref. DIT-D...

  • Page 3: Usb Connector

    Pump connector Equipotential connector JBC Manager www.jbctools.com/manager.html Power Socket Main switch Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can export data to another PC. Fuse Stand Ref. AD-SD any JBC station Soft Thermal Insulator Handle Ref.

  • Page 4: Adjustable Stand

    w w w.jbctools.com Adjustable Stand Tip Cleaner Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Sponge Cable collector Ref. CL6210 Ref. S0354 Keeps work area Very effective cleaning The least harmful cleaning free of cable. method.

  • Page 5: Changing Cartridges

    Ref. T245-B Non-slip and soft touch Mark Compatible cartridges The DIT-D works with T245/T470 handles and C245 cartridges or with T210 handles and C210 cartridges. Find the model that best suits your soldering needs in www.jbctools.com ø 3,5 ø 1 ø...

  • Page 6: Operation

    Operation Process Control The JBC Exclusive Heating System Work Screen Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further Displays a specific fixed temp.

  • Page 7: Maintenance

    1. Remove the fuse by pulling the black cap. replace it in the station. If necessary use a tool to lever it off. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.

  • Page 8: Exploded View

    w w w.jbctools.com Exploded View Specifications Premium Soldering station DIT-1D/ DIT-2D/ DIT-9D - Total weight: 4.4 kg (9.6 lb) DI-1D 120V 50/60Hz. Input fuse: 2A. Output: 23.5V. DI-2D 230V 50/60Hz. Input fuse: 1A. Output: 23.5V. DI-9D 100V 50/60Hz. Input fuse: 2.5A. Output: 23.5V. - Weight: 2.2 kg (9.6 lb) - Dimensions: 90 x 105 x 180 mm - Temperature Range: from 90°C (190°F) to 450°C (840°F)
  • Page 9 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
