- Page 1 www.jbctools.com English Auto-Feed Soldering station Ref. AL-A...
-
Page 2: Packing List

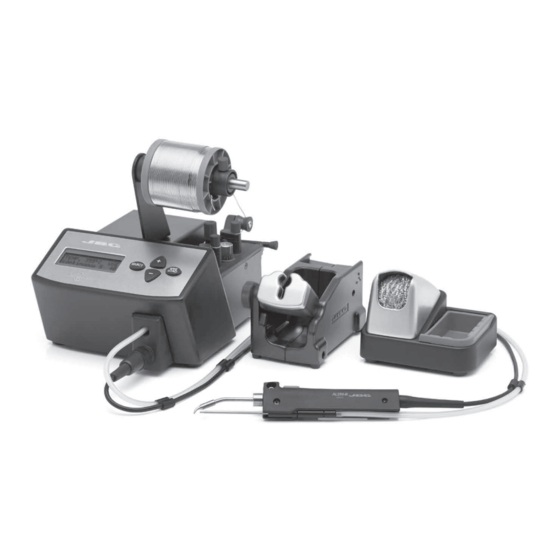

Auto-Feed Soldering Stand ....... 1 unit Auto-Feed Iron ..... 1 unit station ......1 unit Ref. AL-SD Ref. AL250-B Ref. AL-1A (120V) AL-2A (230V) AL-9A (100V) Main switch Fuse Power Socket Tip Cleaner ....1 unit Metal Brush ....1 unit Sponge ...... - Page 3 w w w.jbctools.com Reel Stand Assembly 3. Take the solder wire from the reel until the guide tube start 4. Close the dragging mechanism Adjusting System Assembly Guide Tube Start Guide Set 1. Open dragging mechanism 2. Place the guide set and tighten the screws...
-
Page 4: Control Screen
w w w.jbctools.com Control Screen 5. Connect the handpiece to the station and switch it on. With the handpiece out of the stand, press the WIRE LOAD key till the solder leaves by the end of the guide tube. Tool temperature Tool status Fast wire dragging... - Page 5 w w w.jbctools.com Parameters Modification of the Tool and the Station To enter into this mode, you must hold the SELECT key for 3 seconds. CONTINUE ON NEXT PAGE...
- Page 6 w w w.jbctools.com...
-
Page 7: Adjustable Stand
w w w.jbctools.com Adjustable Stand Compatible Cartridges Adjust the tool holder angle to suit your work position. The AL250-B Auto-feed Iron works with C250 cartridge range. Find the model that best suits your soldering needs in www.jbctools.com ø 0,8 ø 1,7 ø... -
Page 8: Tip Cleaner
w w w.jbctools.com Tip Cleaner Accessories Improve thermal transfer by cleaning the tip after each solder joint. Fume Extractor Ref. F4468 Brass Wool Sponge Ref. CL6210 Ref. S0354 Very effective cleaning method. The least harmful cleaning method. It leaves a small layer of Keep the sponge damp with solder on the tip to distilled water when working to... -
Page 9: Maintenance
Children must not play with the appliance. - Maintenance must not be carried out by children unless supervised. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. -
Page 10: Exploded View
w w w.jbctools.com Exploded View... -
Page 11: Specifications
Specifications AL-1A 120V 50/60Hz. Input fuse: 2A. Output: 23.5V AL-2A 230V 50/60Hz. Input fuse: 1A. Output: 23.5V AL-9A 100V 50/60Hz. Input fuse: 2A. Output: 23.5V - Total weight: 5.8 kg (12.9 lb) - Dimensions: 195 x 200 x 240 mm - Output Peak Power: 130W - Temperature range: 90 - 450°C (190 - 840°F) (±5%)
