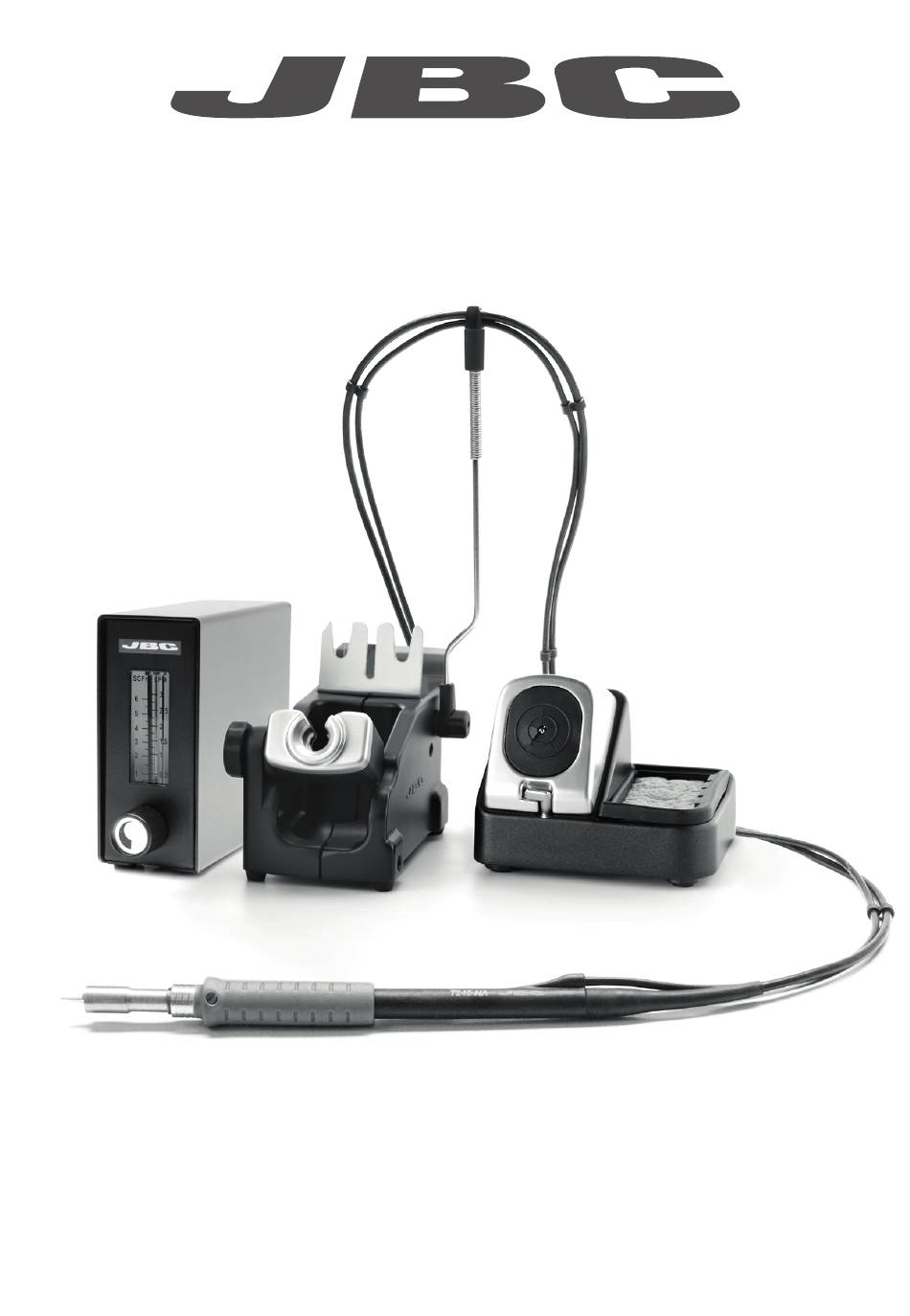

  • Page 1 INSTRUCTION MANUAL Nitrogen Kit Ref. KN-A...

  • Page 3: Packing List

    Ref. B7243 (x1) Ref. C245903 Ref. CL8499 Ref. S0354 B7244 (x1) Stand Cable ....1 unit Module Cable ....1 unit Manual ......1 unit Ref. 0011283 Ref. 0010207 Ref. 0013741 w w w.jbctools.com INSTRUCTION MANUAL Nitrogen Kit Ref. KN-A...
  • Page 4 Features The KN-A requires the GN-A generator or an available nitrogen supply at the operator´s bench. Control Unit Nitrogen Flow Regulator Nitrogen Generator Ref. DI, DD, DDR, DM Ref. MN-A Ref. GN-A Compressed Air Inlet pressure range supply 3 to 6 bar...

  • Page 5: Initial Setup

    w w w.jbctools.com Initial Set up Once the Nitrogen Flow Regulator (MN-A) is connected to the Control Unit, enter the Station Settings menu and enable the Nitrogen Mode. M a i n m e n u S t a t i o n s e t t i n g s Temp unit Celsius Exit...

  • Page 6: Maintenance

    - Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 7 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Only nitrogen can be used with this unit. - Do not use the unit for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases.

  • Page 8: Exploded View

    Exploded View...
  • Page 9 w w w.jbctools.com...
  • Page 10 Notes...
  • Page 11 w w w.jbctools.com...

  • Page 12: Specifications

    - Ambient Operating Temperature: 10 - 40 ºC (50 - 104 ºF) Complies with CE standards. ESD protected housing. Warranty JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
