Summary of Contents for Schertler GIULIA X
- Page 1 GIULIA X • U S E R • M A N U A L C O M B O A M P F O R A C O U S T I C I N S T R U M E N T S V1 EN W W W .
- Page 2 ACOUSTIC X AMPS...

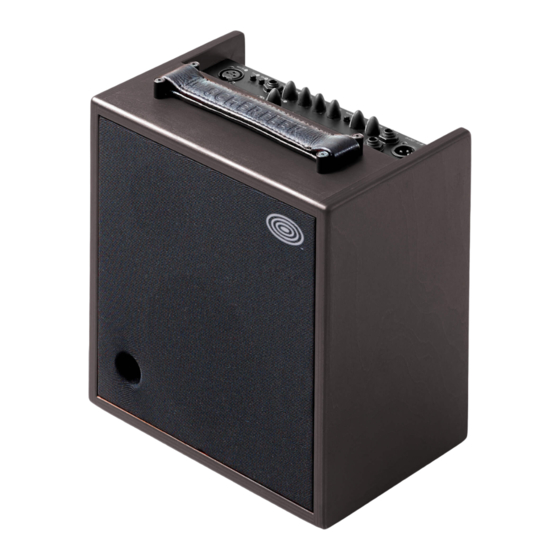

- Page 3 70 W (108 dB SPL) of bi-amplified analog power. GIULIA X has a coaxial speaker system with a 1” dome tweeter and 5.5” woofer. It has been engineered with an optimized 2-way bass reflex system.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION SAFETY FIRST! Safety is of major importance when operating any electrical equipment, so please note the following: On a product, a lightning flash within a triangle indicates the presence of uninsulated “dangerous voltage” within the product enclosure. This may be of sufficient magnitude to cause risk of electric shock. -
Page 5: Operational Safety
SCHERTLER technical assistance center. (For more information, you can contact us at the address on the last page of this manual.) - Page 6 WARM MASTER INSERT DI OUT –15dB GAIN LINE OUT GIULIA X SWISS CLASS–A HIGH VOLTAGE PREAMP / No Integrated Circuits / No Nfb MADE 1.1. MIC INPUT (XLR): This input is electronically balanced for XLR-type connections. The channel is designed for any kind of microphone source e.g. dynamic and condenser mics.
- Page 7 The adjustment is made on both channels. 1.9. WARM: When active, this low-pass filter dampens higher frequencies to produce a warmer sound when using bridge-mounted pickups such as the SCHERTLER STAT Series for violin, cello and double bass. 1.10. REVERB: This rotary control sets the level of the digital reverb on both channels.
-
Page 8: Mains Power Connection
GIULIA X W A T T SERIAL NUMBER A C O U S T I C A M P L I F I E R W W W . S C H E R T L E R . C O M... -
Page 9: Technical Information
TECHNICAL INFORMATION Weight 7.5 kg Dimensions (LxDxH) 27 x 18 x 28 cm Frequency Response (@ +/-3 dB) 55 Hz to 20 kHz Sensitivity (1W/1m) @1 kHz 92.5 dB Power 70 W pure analog power amp SPL Max 108 dB Speakers Coaxial 1”... -
Page 10: Signal Flow
SIGNAL FLOW ACOUSTIC X AMPS... - Page 11 GIULIA X? your amp, you can use the INSERT plug. For this connection you will need a Y cable. Will my condenser mic work with the GIULIA X’s GIULIA X provides way more than the nominal 24 V phantom power? 24 VDC, but, since it is not actually 48 V we cannot legally label it P48.
-
Page 12: Warranty
COPYRIGHT This manual is the property of SCHERTLER SA and, as such, is subject to Swiss copyright law. No part of this manual should be reproduced, edited or distributed without prior consent from SCHERTLER.
