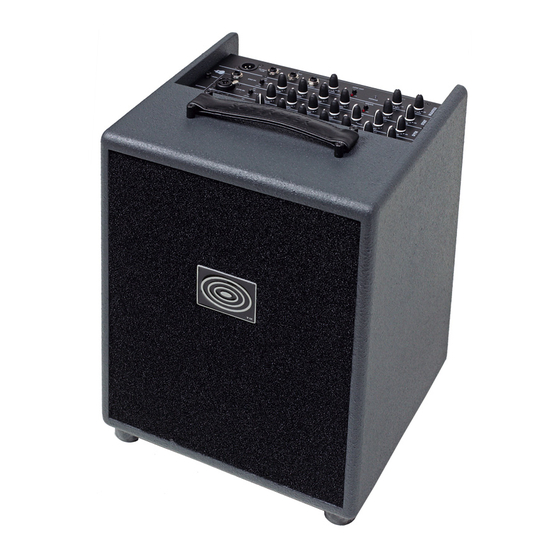

Summary of Contents for Schertler Unico
- Page 1 UNICO...
- Page 2 Pay due care not to pour liquids on the device, nor operate it in excessively humid conditions. Do not install the UNICO near sorces of intense heat, expose it to direct sunlight, nor position it in dusty evironments without protection.
- Page 3 OVERVIEW 1.0. 2.0. 3.0. 4.0. 1.1. 2.1. 3.1. 1.3. 2.3. 4.2. 3.3. 1.2. 2.2. 4.3. 3.2. 4.4. 2.4. 4.5. 1.4. 3.4. 4.6. 2.5. 4.7. 3.5. 1.5. 2.6. 4.8. 3.6. 1.6. 2.7. 3.7. 5.0. REAR PANEL 5.5. 5.1. 5.2. 5.4. 5.3. PAGE2...
- Page 4 LINE OUT: For use with bass or keyboards or to increse overall bass response, SCHERTLER® strongly recommends the use of a sub- woofer such as the SCHERTLER® BASS200 or PUB380. Connect the LINE OUT to the INPUT of the sub-woofer, press the LOW CUT on the UNICO, for a three-way (triamplified) system.
- Page 5 The two previous examples are just some of the wide range of possibilities offered by this amplifier and are provided to help you achieve better operation of your amplifier. The UNICO amplifier can adapt to any need. If you have questions or problems, see the FAQ section of our website at www.schertler.com...
- Page 6 1.0. MIC 1.1. MIC IN (microphone input) This input is electronically balanced for XLR - type connections. It has been optimized for connecting microphones or other transducers having low impedance and low level. The nominal value of impedance is 4.7. Kohm. The input is perfect for dynamic or condenser vocal microphones.
- Page 7 The nominal value of impedance is 10Kohm. The 10V phantom power switch supplies the Jack input and may be used for the electrostatic condenser micropho- nes with low sensitivity. This input is also designned for electrodynamic microphones such as Schertler DYN-series transducers. 2.2. GAIN...
- Page 8 Nominal input impedance is 100 Kohm. All of Schertler’s STAT, BASIK and MARINE-series models and any type of electrostatic microphone can be used directly in this input without preamplifier. Through this input, it is also possible to connect all passive piezoelectric sources using the “Active Driver Cable”...
-
Page 9: Master Section
This push-button switch enables frequency cut for frequencies below 180Hz. This function is ideal if you play an instru- ment that generates aggressively low frequencies, as it enables you to connect a subwoofer (e.g., SCHERTLER PUB 380 or BASS200) and prevent unpleasant vibration and possible damage to your Unico. -
Page 10: Rear Panel
4.8. MAST REV (Spring reverb) This control regulates the general level of the spring reverb, common to all channels. the amount of the effect can be regulated individually for the single channel trough the dedicated controls. “THE ULTIMATE REVERB” is designed and engineerd to provide unequalled performance. It employs innovative new circuit technology. -
Page 11: Technical Description
6.0. TECHNICAL DESCRIPTION DESCRIPTION INTERNAL EFFECT (spring reverb) Box two way, bass reflex Freuency resp. - 200Hz - 10KHz Delay Time - c.a. 30ms Reverb time - c.a. 2s ENCLOSURE SECTION Construction - Plywood COMPONENTS Weight - 14.4 Kg Dimensions - 33cm x 39cm x 29cm Woofer - 8”... - Page 12 SCHERTLER SA Via Beroldingen 18, 6850 Mendrisio, Switzerland t. +41 91 630 07 10 f. +41 91 630 07 11 official web-page: www.schertler.com USA web-page: www.schertlerusa.com official e-mail: info@schertler.com USA e-mail: info@schertlerusa.com...
