Summary of Contents for Schertler Giulia Y

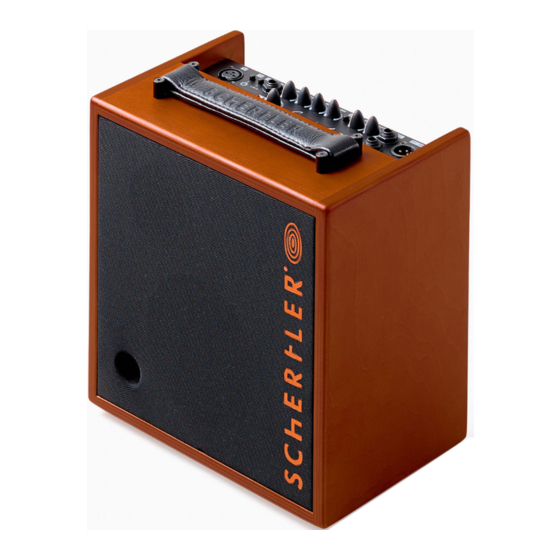

- Page 1 GIULIA Y combo amplifier for acoustic instruments...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PRODUCT ENCLOSURE THAT MAY BE OF A SUFFICIENT MAGNITUDE TO CONSITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. - Page 3 PRECAUTIONS WARNINGS Please read this manual carefully before using your GIULIA Y amplifier and observe all safety precautions Keep this manual for future reference Do not pour any liquids onto this device, or operate it in excessively humid conditions. Do not use or install this device near sources of excessive heat. Do not expose it to direct sunlight, or position it in a dusty environment without any form of protection.
-
Page 4: Practical Advice
“look” that heralds the next generation of Schertler’s amplifier technology. Perfect for small venues, home studios or for practice, GIULIA Y offers 50W of bi-amplified power. Both input channels can accommodate XLR and 1/4” Jack connectors, making the amp suitable for use with a wide range of microphones including Schertler’s DYN and STAT series, or... - Page 5 The adjustment is on both channels 1.8. WARM When engaged, this low-pass filter damps higher frequencies to produce a warmer sound when using bridge-mounted pickups such as the SCHERTLER STAT-Series transducers for violin, cello and double bass. 1.9. REVERB This rotary control sets the level of the digital reverb on both channels.
-
Page 6: Rear Panel
SWITZERLAND SERIAL NR. AMPLIFIER MADE IN ITALY www.schertler.com TO REDUCE RISK OF FIRE, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND RATING OF FUSE. RISK OF ELECTRIC SHOCK DO NOT OPEN! GND LIFT 2.1. -
Page 7: Technical Specs
TECHNICAL SPECS Frequency response ........60 Hz-20 kHz Sensitivity (1W-1m) ........88.5 dB SPL max ............. 104 dB Woofer ............5” Horn ............Dome 1” Crossover ........... Active 24 dB / octave Box .............. Bass reflex Construction ..........Birch laminated System –... - Page 8 “COMMON SENSE” AND THUS, MISUSE OF OUR PRODUCTS ARE NOT COVERED UNDER RIGHTS OBTAINED THROUGH OUR WARRANTY POLICY OR THAT OF INTERNATIONALLY RECOGNIZED TERMS AND CONDITIONS. SCHERTLER SA IS CONSTANTLY AIMING TO IMPROVE ITS RANGE OF PRODUCTS THEREFORE, SCHERTLER SA RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATIONS WITHOUT NOTICE.
