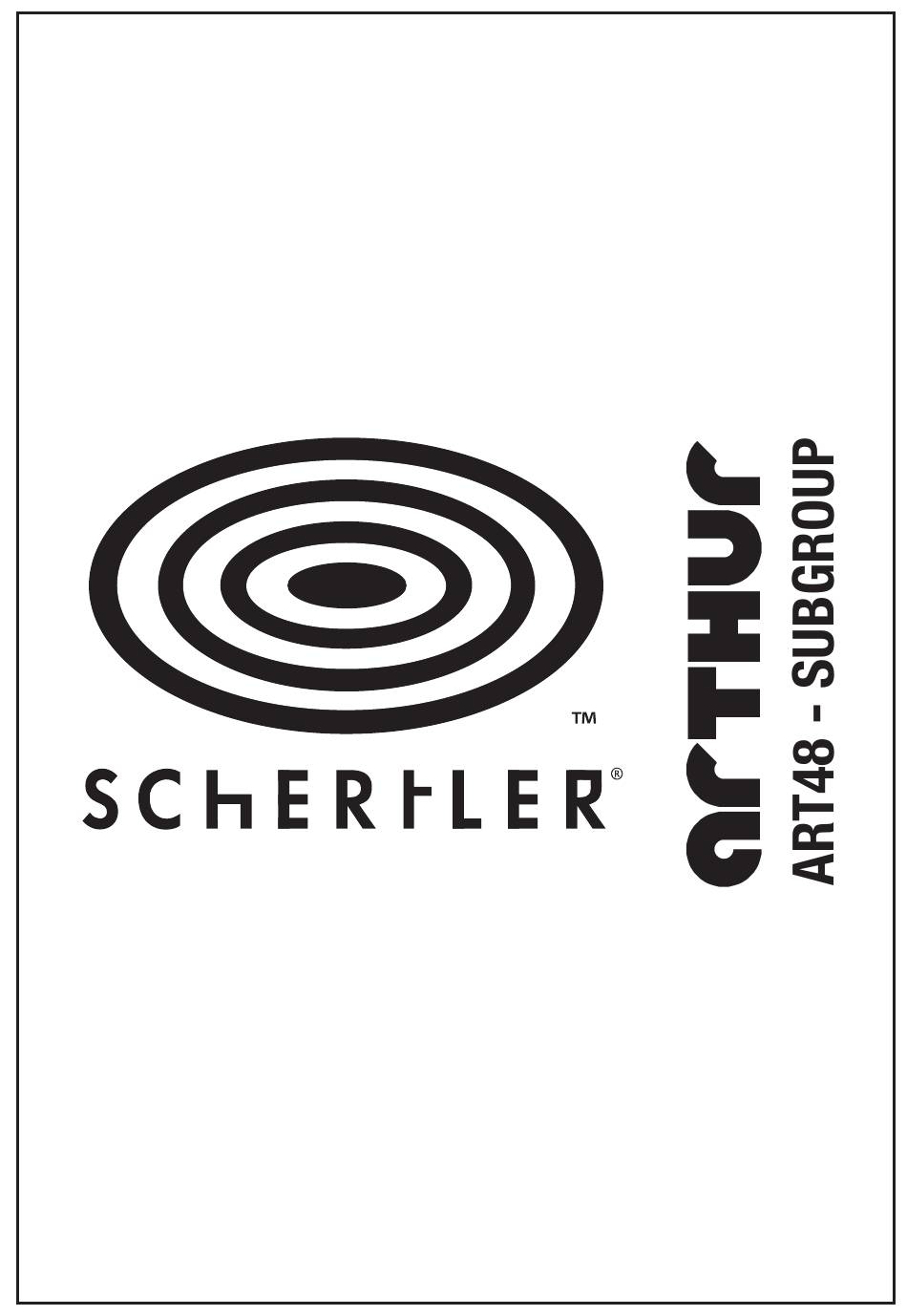

- Page 1 ACOUSTIC FIDELITY USER MANUAL Assembling instruction on ART48-L/Rmast manual...
- Page 2 WARNINGS PRECAUTIONS WARNINGS Read carefully this manual and follow these precautions before operating the device Keep this manual for possible future needs Pay attention not to pour liquids onto the device and do not operate in conditions of excessive humidity Do not install the device close to sources of excessive heat, do not expose it to direct solar radiation and do not position it without protection in a dusty environment Be sure that the main voltage does not exceed the value indicated on the back panel...

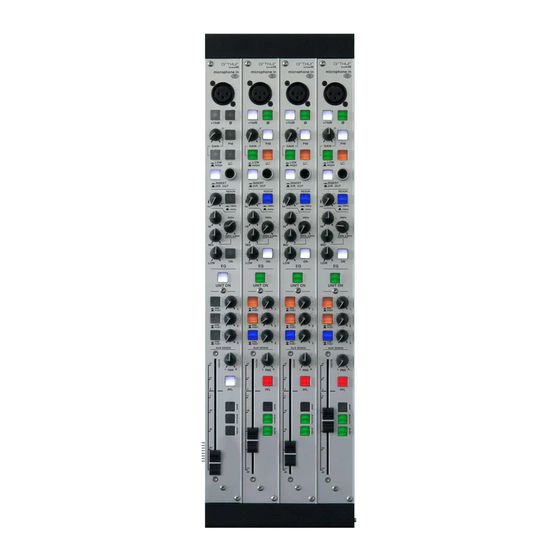

- Page 3 ART48 - SUBGROUP The ARTHUR Subgroup is a high-end, CLASS-A summing amp. It functions as an additional unit for configuring a group of input modules that are to be controlled via a single pair of faders. Two Subgroup units can be directly mounted in the ARTHUR Format 48 mixer - along with a theoretically infinite number of other sub group units that must be cabled to either a Stereo In or Multiple In unit.
- Page 4 ART48 - SUBGROUP Using the Subgroup’s L/R faders(1.), you can control the level of all linked input units. By depressing the mute button(2.), you can mute this entire sub group without touching the fader. If using more than two Subgroups, the first two Subgroup units should be mounted as above.
-
Page 5: Signal Flow
SIGNAL FLOW... -
Page 6: Technical Specs
TECHNICAL SPECS Output Impedance: 113 ohm Gain range: -80dBu to +5dBu Maximum output level: +24dBu (@1kHz; THD <0.5%) Frequency response: (-3dB) < 10Hz - 40kHz Distortion (THD+N): = 0.01% Insert input impedence: 14Kohm Power consumption: 80mA Size & Weight: 36x58x475mm; 0,5 Kg... -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PRODUCT ENCLOSURE THAT MAY BE OF A SUFFICIENT MAGNITUDE TO CONSITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. - Page 8 “COMMON SENSE” AND THUS, MISUSE OF OUR PRODUCTS ARE NOT COVERED UNDER RIGHTS OBTAINED THROUGH OUR WARRANTY POLICY OR THAT OF INTERNATIONALLY RECOGNIZED TERMS AND CONDITIONS. SCHERTLER SA IS CONSTANTLY AIMING TO IMPROVE ITS RANGE OF PRODUCTS THEREFORE, SCHERTLER SA RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATIONS WITHOUT NOTICE.
