Schertler JAM X User Manual
  1. Manuals
  2. Brands
  3. Schertler Manuals
  4. Amplifier
  5. JAM X
  6. User manual

Schertler JAM X User Manual

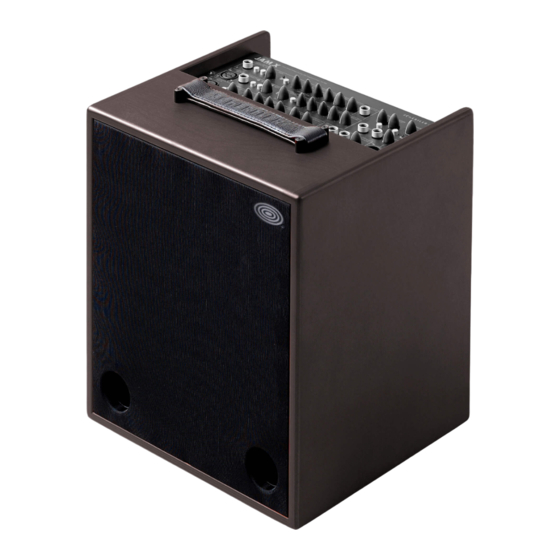

Combo amp for acoustic instruments
Hide thumbs Also See for JAM X:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

JAM X
C O M B O A M P F O R A C O U S T I C I N S T R U M E N T S
V 1
W W W . S C H E R T L E R . C O M
• U S E R •
M A N U A L
S
M
W
A
I
D
S
E
S
