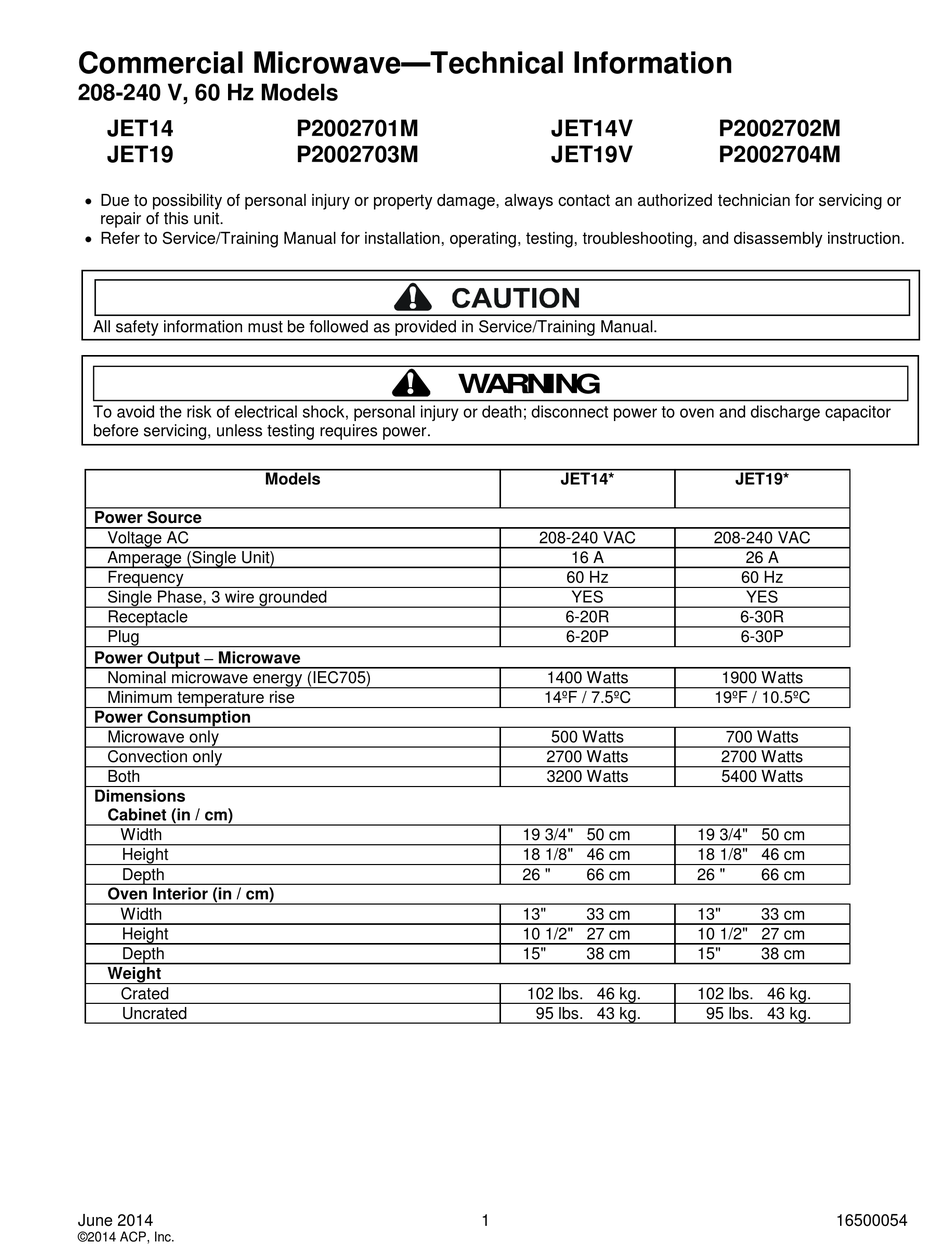

Commercial Microwave—Technical Information
208-240 V, 60 Hz Models
JET14
JET19
Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
Refer to Service/Training Manual for installation, operating, testing, troubleshooting, and disassembly instruction.
All safety information must be followed as provided in Service/Training Manual.
To avoid the risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor
before servicing, unless testing requires power.
Power Source
Voltage AC
Amperage (Single Unit)
Frequency
Single Phase, 3 wire grounded
Receptacle
Plug
Power Output Microwave
Nominal microwave energy (IEC705)
Minimum temperature rise
Power Consumption
Microwave only
Convection only
Both
Dimensions
Cabinet (in / cm)
Width
Height
Depth
Oven Interior (in / cm)
Width
Height
Depth
Weight
Crated
Uncrated
June 2014
©2014 ACP, Inc.
P2002701M
P2002703M
!
Models
JET14V
JET19V
W ARNING
JET14*
208-240 VAC
16 A
60 Hz
YES
6-20R
6-20P
1400 Watts
14ºF / 7.5ºC
500 Watts
2700 Watts
3200 Watts
19 3/4" 50 cm
18 1/8" 46 cm
26 "
66 cm
13"
33 cm
10 1/2" 27 cm
15"
38 cm
102 lbs. 46 kg.
95 lbs. 43 kg.
1
P2002702M
P2002704M
JET19*
208-240 VAC
26 A
60 Hz
YES
6-30R
6-30P
1900 Watts
19ºF / 10.5ºC
700 Watts
2700 Watts
5400 Watts
19 3/4" 50 cm
18 1/8" 46 cm
26 "
66 cm
13"
33 cm
10 1/2" 27 cm
15"
38 cm
102 lbs. 46 kg.
95 lbs. 43 kg.
16500054
Advertisement
Related Manuals for ACP Menumaster JET14 Series
Summary of Contents for ACP Menumaster JET14 Series
- Page 1 10 1/2" 27 cm 10 1/2" 27 cm Depth 15" 38 cm 15" 38 cm Weight Crated 102 lbs. 46 kg. 102 lbs. 46 kg. Uncrated 95 lbs. 43 kg. 95 lbs. 43 kg. June 2014 16500054 ©2014 ACP, Inc.
- Page 2 Remove all wires from motor. Measure resistance between: Blower Motor Orange and Yellow terminals ...... Approximately 26Ω Blue and Yellow terminals ......Approximately 24Ω Remove all wires from terminals. Measure resistance across terminals…….. Approximately 12K Stirrer Motor 16500054 June 2014 ©2014 ACP, Inc.
- Page 3 Relay Board With door closed measure resistance from: Pin 1 to pin 4 on J2 connector……………… (Monitor) With door open measure resistance from: Continuity - 0Ω Pin 1 to pin 4 on J2 connector…....June 2014 16500054 ©2014 ACP, Inc.
- Page 4 Side Touch Panel proper operation. and test again. Each pad should respond. If Top Touch Panel still no response, replace Top Touch Panel. Inspect for any damage Display Board – Connector Locations 16500054 June 2014 ©2014 ACP, Inc.
- Page 5 230v) Antenna Motor 230v Door Open Volts J2-4 to J3-1 230v Microwave Service Test Volts J1-1 to J2-3 Line Voltage Preheat On Heater or Service Volts J1-1 to J2-2 Line Voltage Test #1 June 2014 16500054 ©2014 ACP, Inc.
- Page 6 Power Test All ACP microwave oven power outputs are rated using the IEC705 standards. Using the IEC705 test method requires precision measurements and equipment that is not practical to be performed in the field. Using the test shown below will indicate if the oven performance is satisfactory.
- Page 7 While in this mode, pressing START will reset Magnetron Hours and Door Cycles to 0 Temperature Offset. Pressing 0 will change. +40 to -40 degree range Time Entry 208/230/Automatic Voltage Switching Temperature Displays current oven cavity temperature as sensed by RTD June 2014 16500054 ©2014 ACP, Inc.
- Page 8 • Offset setting must be reduced by 10° C • If offset is shown as 5°, press the "0" pad until -5 is shown in the display (5– 10= –5). 16500054 June 2014 ©2014 ACP, Inc.
- Page 9 Door Interlock -Verify Latch Mechanism Moves Freely On Primary Switch Door. -Verify J1 Connector On Display Board Is Properly Seated. -Test Interlock Switch Assembly and Perform Door Adjustment If Necessary. -Replace Interlock Switch Assembly. June 2014 16500054 ©2014 ACP, Inc.
- Page 10 Wiring Diagram and Schematic W ARNING To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor before servicing, unless testing requires power. 16500054 June 2014 ©2014 ACP, Inc.
- Page 11 Wiring Diagram and Schematic W ARNING To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor before servicing, unless testing requires power. June 2014 16500054 ©2014 ACP, Inc.
- Page 12 Wiring Diagram and Schematic W ARNING To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor before servicing, unless testing requires power. 16500054 June 2014 ©2014 ACP, Inc.
