Owner's Manual

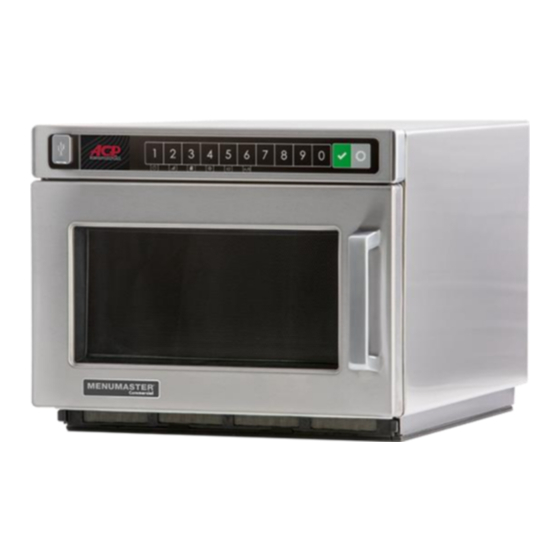

HEAVY DUTY COMMERCIAL COMPACT MICROWAVE OVEN
STYLE 1
Keep these instructions for future
reference. If the equipment changes
ownership, be sure this manual
accompanies equipment. Please refer to
the SAFETY INSTRUCTIONS for important
safety information prior to using this oven
This document covers HDC*, MDC*, DEC* and MCHDC* models
[0.6 Cubic Foot (17 Liter)]
STYLES 2 & 3
TABLE OF CONTENTS
Model Identification ...............................................................2
Online Oven Resources ........................................................2
Important Safety Instructions ............................................3-4
Grounding and Installation ...................................................5
Style 1
Control Panel and Features ...................................................6
Cooking & Programming Features ........................................7
Operation ............................................................................8-9
Programming Display Screens ............................................10
Programming .................................................................. 11-12
USB Flash Drive ..................................................................13
User Options ........................................................................14
Styles 2 & 3
Control Panel and Features .................................................15
Displays and Operation ..................................................16-17
Operation and Programming ...............................................17
User Options ........................................................................18
Cooking Instructions ...........................................................19
Care and Cleaning ..........................................................20-21
Before Calling for Service...................................................22
Advertisement
Table of Contents
Related Manuals for ACP HDC Series
Summary of Contents for ACP HDC Series
-
Page 1: Table Of Contents
This document covers HDC*, MDC*, DEC* and MCHDC* models Owner’s Manual HEAVY DUTY COMMERCIAL COMPACT MICROWAVE OVEN [0.6 Cubic Foot (17 Liter)] STYLE 1 STYLES 2 & 3 TABLE OF CONTENTS Model Identification ...............2 Online Oven Resources ............2 Important Safety Instructions ..........3-4 Grounding and Installation ...........5 Style 1 Control Panel and Features ...........6... -
Page 2: Model Identification
Online Oven Resources ACP PROGRAMMING APPLICATION Download and install the ACP Programming Application to create, edit, and customize menu and display settings for your oven, using a desktop computer or tablet. To download the latest and greatest version of the ACP Programming Application please visit acpsolutions.com/oven-programming/... -
Page 3: Important Safety Instructions
2. hinges and latches (broken or loosened) 3. door seals and sealing surfaces. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. SAVE THESE INSTRUCTIONS ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions... - Page 4 DO NOT use metal utensils in oven. DO NOT use aluminum foil in oven SAVE THESE INSTRUCTIONS ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions Page 4 of 22...
-
Page 5: Grounding And Installation
Allow at least 1” (2.54 cm) of clearance around sides of oven. (91.5 cm) above floor. Install oven so oven bottom is at least 3 feet ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions Page 5 of 22... -
Page 6: Control Panel And Features
STANDBY SCREEN DOOR OPEN SCREEN • Menu A/B disabled • Menu A open • Quantity X2 disabled • Quantity X2 enabled ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions Page 6 of 22... -
Page 7: Cooking & Programming Features
USB PROGRAMMING UPLOADS Allows operator to load program settings and user options using a standard USB flash drive ACP PROGRAMMING APPLICATION Allows operator to create and edit program settings and user options on a computer. For detailed instructions, please visit: www.acpsolutions.com/oven-programming ©2019 ACP, Inc. -
Page 8: Operation
• ENTER QUANTITY screen is displayed Enter desired quantity using keypad 1-9 • Display shows the program name and counts down cooking time. Quantity is displayed in top left corner. ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions... -
Page 9: Operation
Example: For stage three, press number keypad “3” to edit cook time, and press number keypad “7” to edit power level. Press START/OK keypad to begin cooking ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions... -
Page 10: Programming Display Screens
Edit power level - Stage 4 MNOPmnop Delete Program XYZxyz Edit Program Name (space) START Save START (save and exit) STOP Exit STOP (backspace) ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions Page 10 of 22... -
Page 11: Programming
Example: For stage two, press number keypad “2” to edit cook time, and press number keypad “6” to edit power level. To save and exit programming mode: Press START/OK keypad ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404... - Page 12 Press and hold number keypad “3”/ PROGRAM to enter programming mode. Press and hold the number keypad corresponding to folder to delete it. • Contents of a deleted folder will be moved to the top level ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404...
-
Page 13: Usb Flash Drive
STOP/RESET keypad while plugging in the oven. Open Menu in ACP Programming Application Note: For more details, please see ACP Programming Application User Guide online Insert flash drive into USB port on computer. Open ACP Programming Application. Select “File,” then “Open.” Navigate to flash drive. Select the menu file (.xml format) and open ©2019 ACP, Inc. -
Page 14: User Options
Detects USB flash drive and imports .xml format menu file Load File * Available on select models only (only displayed in User Options menu if factory option is enabled) ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions... -
Page 15: Styles 2 & 3
To set the control to 100 cooking programs, see the “User Options” section of this manual. ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions... -
Page 16: Displays And Operation
At the end of the cooking cycle, the oven beeps. Carefully 45 sec. 4:00 min. remove food from oven. 1:00 min. 5:00 min. Note: Factory setting may vary by model ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions Page 16 of 22... -
Page 17: Operation And Programming
Examples: • Pad 5 would change the cooking factor to 50%. • Pad 3 would change the cooking factor to 30%. Press START keypad to save changes. ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions Page 17 of 22... -
Page 18: User Options
OP:02 Display message for 24 hours every 30 days OP:03 Display message for 24 hours every 90 days *Factory setting may vary by model ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions Page 18 of 22... -
Page 19: Cooking Instructions
Quantity a. As the mass of food increases, so will the necessary cook time. Refer to and comply with all USDA/FDA Food Code guidelines when cooking or heating food items. ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404... -
Page 20: Care And Cleaning
• After assembly, the 4 pins need to be inserted through the holes. • Using finger, pull downward on shield to assure all pins are engaged in cavity holes and shield is securely installed. g. Reconnect power to oven. ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions... - Page 21 Check monthly for a buildup of cooking vapors along intake and discharge louvers on bottom and back of oven. Clean air vents with damp cloth to ensure proper airflow. Dry thoroughly. Discharge Air Vents ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404...
-
Page 22: Before Calling For Service
Check cook times per stage. Check User Option>Maximum Cook Time Amana® Commercial HDC Menumaster® MDC/DEC Contact: Contact: email: commercialservice@acpsolutions.com For full product documentation visit: www.acpsolutions.com ©2019 ACP, Inc. Part No. 20267401 Cedar Rapids, IA 52404 Original Instructions Page 22 of 22...
