Example Application - SMC Networks IL220 Series Operation Manual

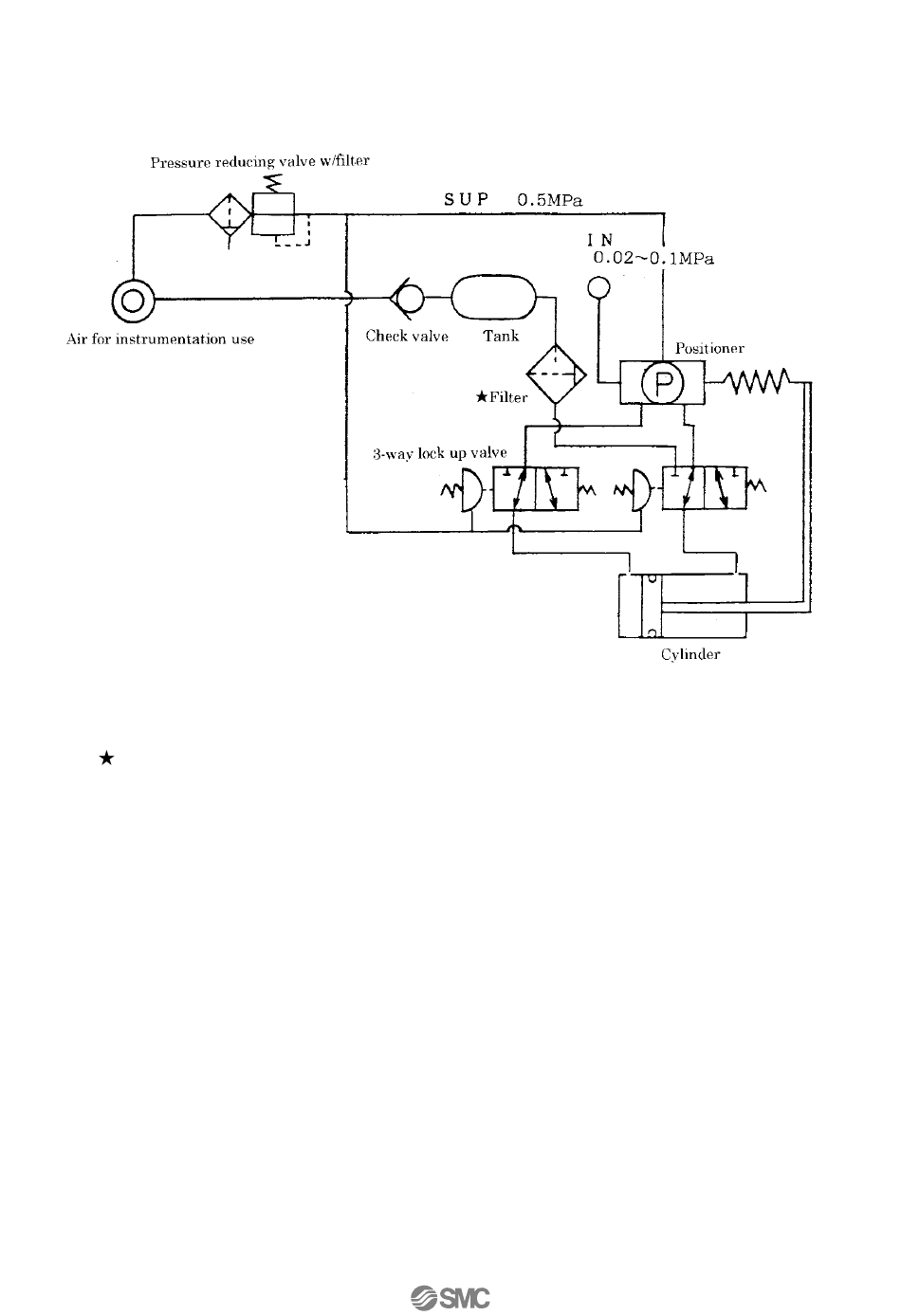

Lock up valve 3-ports
Hide thumbs
Table of Contents

Advertisement

8. Example Application

A filter is used to remove dust in air.
Note : Above diaphragm shows the situation when the supply pressure is higher than
the setting pressure.
-8-
