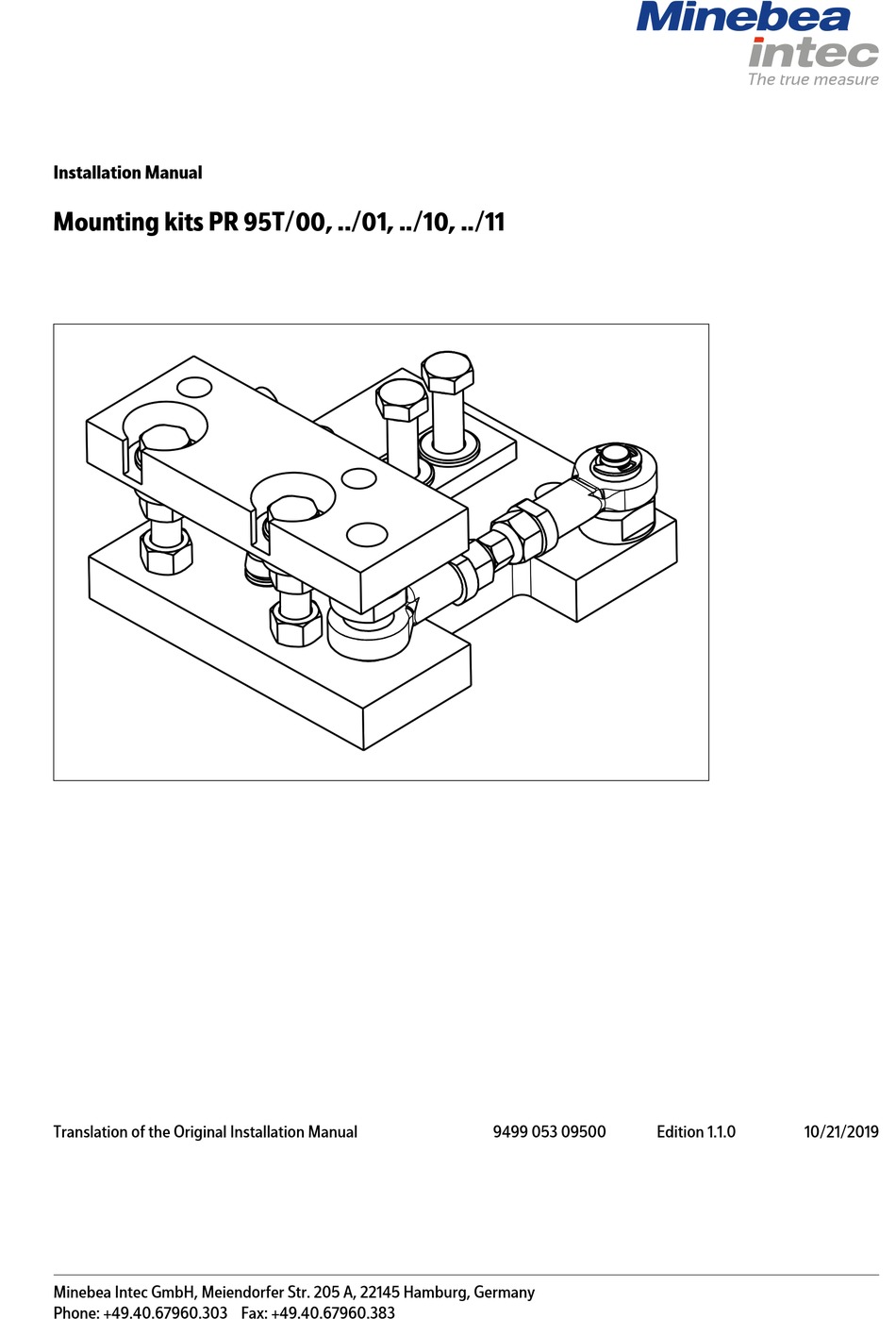

- Page 1 Installation Manual Mounting kits PR 95T/00, ../01, ../10, ../11 Translation of the Original Installation Manual 9499 053 09500 Edition 1.1.0 10/21/2019 Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany Phone: +49.40.67960.303 Fax: +49.40.67960.383...
- Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
-
Page 3: Table Of Contents
3.2.3 Adjusting the built-in lift-off protection ......................8 Specifications ............................ 10 Equipment supplied..............................10 4.1.1 Mounting kits PR 95T/00S and PR 95T/01S ..................... 10 4.1.2 Mounting kits PR 95T/10S and PR 95T/11S ....................11 Dimensions .................................12 Technical data ................................16 Installation............................17 Prior to mounting ..............................17... -
Page 4: Introduction
WARNING indicates that death or severe, irreversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. CAUTION Warning of personal injury. CAUTION indicates that minor, reversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. EN-2 Minebea Intec... -
Page 5: Hotline
NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes. Hotline Phone: +49.40.67960.444 Fax: +49.40.67960.474 eMail: help@minebea-intec.com Minebea Intec EN-3... -
Page 6: Safety Instructions
If there are grounds for rejection of the goods, a claim must be filed with the carrier immediately. The Minebea Intec sales or service organization must also be notified. Before operational startup NOTICE Perform visual inspection. -
Page 7: Recommendations For Installation
3 Recommendations for installation Mounting kits PR 95T/00, ../01, ../10, ../11 Recommendations for installation Load cell and constrainer arrangement Examples: Do not constrain this position. Constrainer Load application Possible direction of movement Minebea Intec EN-5... -
Page 8: Internal Lift-Off Protection With Integrated Jack-Up
Lower plate The mounting kits are equipped with an internal lift-off protection, i.e. no additional borings apart from the mounting holes in the vessel foot are required. The figure shows the position for installation of the load cell. EN-6 Minebea Intec... -
Page 9: Jack-Up With Centering Guide
Use the load cell as follows: 2. Insert the load disc into the load cell. 3. Insert the load cell into the mounting kit. 4. Load the load cell slowly and adjust the built-in lift-off protection as described in Chapter 3.2.3. Minebea Intec EN-7... -
Page 10: Adjusting The Built-In Lift-Off Protection
Mounting kits PR 95T/00, ../01, ../10, ../11 3 Recommendations for installation 3.2.3 Adjusting the built-in lift-off protection Turn the nut (5) downwards. 2. Check that the distance A = 1–2 mm. EN-8 Minebea Intec... - Page 11 If the distance is too short: 3. Turn the nut (5) upwards to loosen the nut (4). 4. Turn the screw (2) upwards to configure the safety distance "A". 5. Re-secure the nut (4). 6. Turn the nut (5) downwards again. Minebea Intec EN-9...
-
Page 12: Specifications
Mounting kits PR 95T/00, ../01, ../10, ../11 4 Specifications 4 Specifications Equipment supplied 4.1.1 Mounting kits PR 95T/00S and PR 95T/01S Description Internal lift-off protection with integrated jack-up (2×) Upper plate Lower plate Screw (2×) and spring washer (2×) for the potential equalization cable Screw (2×) -
Page 13: Mounting Kits Pr 95T/10S And Pr 95T/11S
Washer (2×) Spacer Load disc Constrainer with joint head (2×), screwed joint, nut (2×), joint pin (2×), and lo- cking washer (2×) The following are not shown: Flexible copper strap 10 mm , 250 mm long Quick guide Minebea Intec EN-11... -
Page 14: Dimensions
Mounting kits PR 95T/00, ../01, ../10, ../11 4 Specifications Dimensions PR 95T/00S all dimensions in mm Load cell Nominal capacity MP58T 82.4 mm 91…2268 kg MP79T 83.3 mm 227…2268 kg EN-12 Minebea Intec... - Page 15 4 Specifications Mounting kits PR 95T/00, ../01, ../10, ../11 PR 95T/01S all dimensions in mm Minebea Intec EN-13...
- Page 16 Mounting kits PR 95T/00, ../01, ../10, ../11 4 Specifications PR 95T/10S all dimensions in mm Load cell Nominal capacity MP58T 82.4 mm 91…2268 kg MP79T 83.3 mm 227…2268 kg EN-14 Minebea Intec...
- Page 17 4 Specifications Mounting kits PR 95T/00, ../01, ../10, ../11 PR 95T/11S all dimensions in mm Minebea Intec EN-15...
-
Page 18: Technical Data
Mounting kits PR 95T/00, ../01, ../10, ../11 4 Specifications Technical data Mounting kits PR 95T/00S and PR 95T/01S PR 95T/00S PR 95T/01S Max. capacity of load cell 5099 kg 91…2268 kg Permissible lifting force max. 30 kN max. 40 kN Permissible jack-up load max. -
Page 19: Installation
M12 mounting screws ISO 7093-2 (d = 37, h = 3) Recommendation for the washers DIN 7349 (d = 40, h = 6) or ISO 7093 (d = 50, h = 3) of M16 mounting screws Minebea Intec EN-17... -
Page 20: Assembly
The operations must be performed at all supporting points (e.g., vessel) of the weighing object. Requirements: All threaded holes for the upper plate are available in the vessel lug/vessel foot (see Chapter 4.2). The lift-off protection is in the upper position. EN-18 Minebea Intec... - Page 21 5. Fasten the mounting kit to the foundation. It is essential to observe the property classes and tightening torques of the screws and the property classes of the washers (see Chapter 5.2). 6. Equalize the potential (15) between the upper plate (6) and lower plate (7). Minebea Intec EN-19...
-
Page 22: Check Mounting
EN-20 Minebea Intec... - Page 23 To avoid force shunts, all incoming and outgoing lines (hoses, pipes, cables) must be connected to the measured object with the greatest flexibility possible. The entire load must be supported by the load cells! Minebea Intec EN-21...
-
Page 24: Cleaning
For this purpose, spray the water jet from top to bottom and around the mounting kit. NOTICE Some cleaning agents may not be compatible with the mounting kit material. When using cleaning agents, ensure that their compatibility with the mounting kit material has been tested and approved (see Chapter 4.3). EN-22 Minebea Intec... -
Page 25: Disposal
We reserve the right not to accept products that are contaminated with hazardous substances (ABC contamination) for repair. Should you have any further questions, please contact your local service representative or our service center. Minebea Intec GmbH Repair center Meiendorfer Strasse 205 A 22145 Hamburg, Germany Phone: +49.40.67960.666... -
Page 26: Replacement Parts
Load disc 5312 693 98158 91…2268 kg Load disc 5099 kg 5312 693 98159 Constrainer 5312 693 98094 91…2268 kg Constrainer 5099 kg 5312 693 98095 2× locking washer, 10 mm, DIN 6799 10-A2 5312 530 78002 EN-24 Minebea Intec... - Page 28 Published by Minebea Intec GmbH | Meiendorfer Strasse 205 A | 22145 Hamburg, Germany Phone: +49.40.67960.303 | Email: info@minebea-intec.com www.minebea-intec.com...
