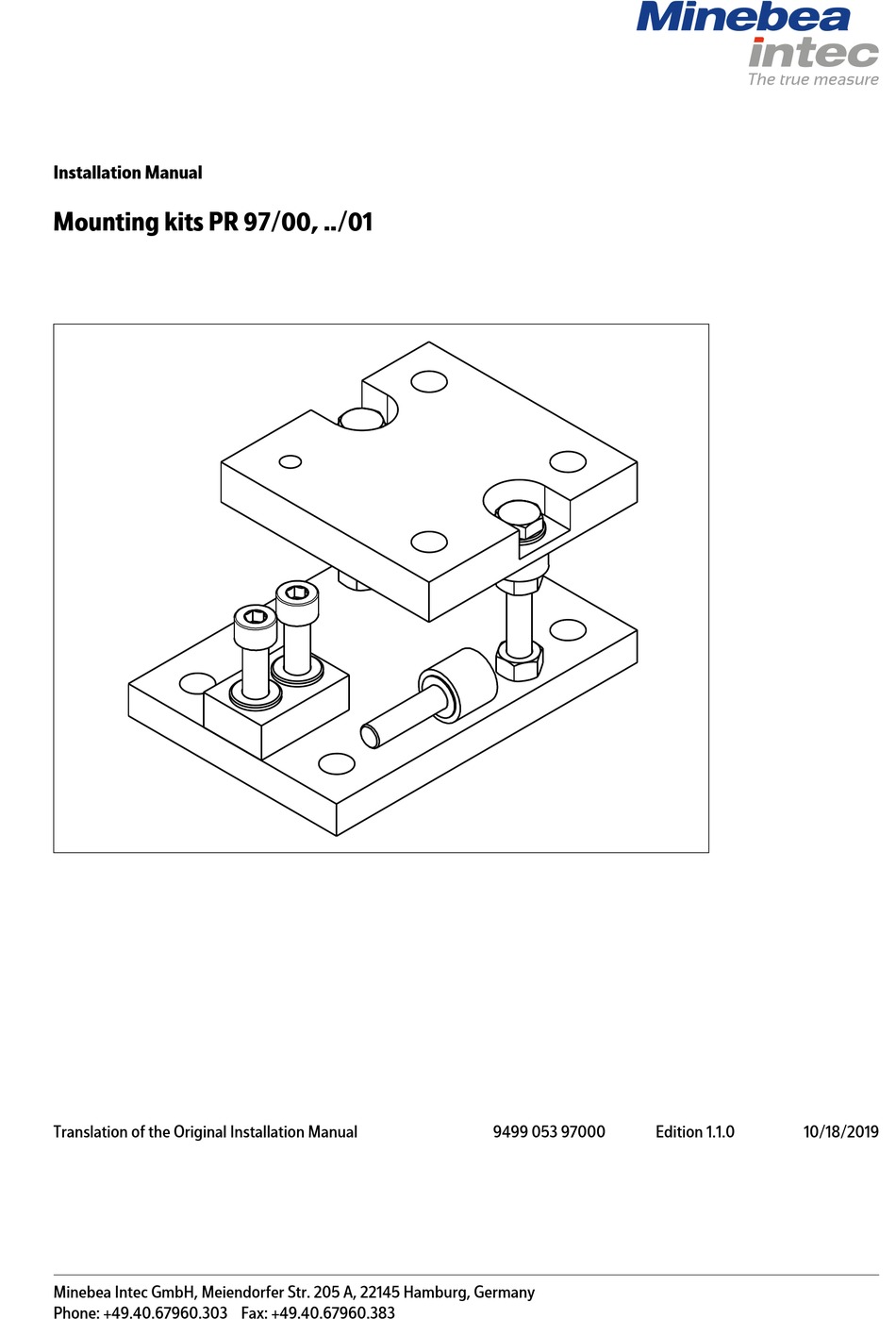

- Page 1 Installation Manual Mounting kits PR 97/00, ../01 Translation of the Original Installation Manual 9499 053 97000 Edition 1.1.0 10/18/2019 Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany Phone: +49.40.67960.303 Fax: +49.40.67960.383...
- Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
-
Page 3: Table Of Contents
Prior to mounting ..............................12 5.1.1 Preparing the foundation/substructure .....................12 Tightening torques..............................12 Assembly..................................12 5.3.1 Safety instructions ............................12 5.3.2 Installing the mounting kit and inserting the load cell ................13 Check mounting.................................15 Cleaning............................. 16 Disposal ..............................17 Replacement parts ..........................18 Minebea Intec EN-1... -
Page 4: Introduction
WARNING indicates that death or severe, irreversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. CAUTION Warning of personal injury. CAUTION indicates that minor, reversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. EN-2 Minebea Intec... -
Page 5: Hotline
NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes. Hotline Phone: +49.40.67960.444 Fax: +49.40.67960.474 eMail: help@minebea-intec.com Minebea Intec EN-3... -
Page 6: Safety Instructions
If there are grounds for rejection of the goods, a claim must be filed with the carrier immediately. The Minebea Intec sales or service organization must also be notified. Before operational startup NOTICE Perform visual inspection. -
Page 7: Recommendations For Installation
The horizontal forces thus affect the load cells directly with the permissible eccentricity (approx. ±3 mm) fully utilized. These forces must not exceed the maximum permissible horizontal load of the load cells. If there will be higher horizontal forces, external constrainers are indispensable. Minebea Intec EN-5... -
Page 8: Internal Lift-Off Protection With Integrated Jack-Up
The figure shows the position for installation of the load cell. 3.2.2 Jack-up with centering guide Note: If the weighing object is fully displaced, the jack-up with the centering guide will be restricted in terms of functionality. EN-6 Minebea Intec... -
Page 9: Adjusting The Built-In Lift-Off Protection
2. Insert the load disc into the load cell and fasten with the nut. 3. Insert the load cell into the mounting kit. 4. Load the load cell slowly and adjust the built-in lift-off protection as described in Chapter 3.2.3. 3.2.3 Adjusting the built-in lift-off protection Minebea Intec EN-7... - Page 10 If the distance is too short: 3. Turn the nut (5) upwards to loosen the nut (4). 4. Turn the screw (2) upwards to configure the safety distance "A". 5. Re-secure the nut (4). 6. Turn the nut (5) downwards again. EN-8 Minebea Intec...
-
Page 11: Specifications
Washer (2×) Spacer Load disc incl. washer and nut The following are not shown: Screw (2×) and spring washer (2×) for the potential equalization cable Flexible copper strap 10 mm , 250 mm long Quick guide (not shown) Minebea Intec EN-9... -
Page 12: Dimensions
Mounting kits PR 97/00, ../01 4 Specifications Dimensions all dimensions in mm EN-10 Minebea Intec... -
Page 13: Technical Data
0.9 t max. 0.9 t Permissible temperature range -40°C…+100°C -40°C…+100°C Material Steel; zinc-plated, chro- Steel; zinc-plated, chro- mated, and sealed mated, and sealed (RoHS-compliant) (RoHS-compliant) Net weight 1.8 kg 1.9 kg Gross weight 1.9 kg 2.0 kg Minebea Intec EN-11... -
Page 14: Installation
DIN 7349 (d = 21, h = 4) or DIN 9021 or of M8 mounting screws: ISO 7093-2 (d = 24, h = 2) Assembly 5.3.1 Safety instructions WARNING The vessel may turn over during mounting. Securing the vessel against tipping is imperative. Use an appropriate lifting jack. EN-12 Minebea Intec... -
Page 15: Installing The Mounting Kit And Inserting The Load Cell
Chapter 4.2). The lift-off protection is in the upper position. Procedure: NOTICE Mounting kits are supplied ready to install. The lift-off protection is in the upper position. Do not adjust the lift-off protection before inserting the load cell. Minebea Intec EN-13... - Page 16 (7) and the recess for the load disc (12) in the upper plate (6). 8. Insert the load disc (12) into the load cell and fasten with the nut. 9. Apply sufficient grease to the contact surfaces between load cell/ load disc and upper plate/load disc. EN-14 Minebea Intec...
-
Page 17: Check Mounting
To avoid force shunts, all incoming and outgoing lines (hoses, pipes, cables) must be connected to the measured object with the greatest flexibility possible. The entire load must be supported by the load cells! Minebea Intec EN-15... -
Page 18: Cleaning
For this purpose, spray the water jet from top to bottom and around the mounting kit. NOTICE Some cleaning agents may not be compatible with the mounting kit material. When using cleaning agents, ensure that their compatibility with the mounting kit material has been tested and approved (see Chapter 4.3). EN-16 Minebea Intec... -
Page 19: Disposal
We reserve the right not to accept products that are contaminated with hazardous substances (ABC contamination) for repair. Should you have any further questions, please contact your local service representative or our service center. Minebea Intec GmbH Repair center Meiendorfer Strasse 205 A 22145 Hamburg, Germany Phone: +49.40.67960.666... -
Page 20: Replacement Parts
8 Replacement parts Replacement parts Description Max. capacity Order no. Flexible copper thread, 250 mm long 5312 321 28056 Load disc up to 250 kg 5312 693 98160 Load disc up to 500 kg 5312 693 98161 EN-18 Minebea Intec... - Page 22 Published by Minebea Intec GmbH | Meiendorfer Strasse 205 A | 22145 Hamburg, Germany Phone: +49.40.67960.303 | Email: info@minebea-intec.com www.minebea-intec.com...
