Short form specifications
Exterior top is one-piece 16-gauge stainless steel, with integral 2.12"
(5.4 cm) square nosing on front and 4.00" (10.1 cm) high by 2.00" (5.1
cm) thick backsplash on rear. Interior sides are 22-gauge stainless steel.
Top has (2) to (6) 11.87" x 19.87" (30.2cm x 50.5 cm) openings to hold
pans (supplied by others). Unit has a single 16-gauge stainless steel
tank with 1.00" (2.5 cm) drain with gate valve. Units 32", 48" and 60"
have (1) 20,000 BTU natural gas burner with safety pilots evenly spaced
under the tank and (1) control. 72 and 88" units have (2) 20,000 BTU
natural gas burners with safety pilots evenly spaced under the tank and
(2) controls. Control is mounted in front edge of 8" wide stainless steel
plate shelf.
Natural gas connection is 1/2"; a gas regulator is supplied. Hot water con-
nection is 1/2", located 36" (91.4 cm) above the floor.
Manual fill faucet that extends (2.5" (6.4cm) above backsplash is stan-
dard.
Lower portion of unit to have a 22-gauge stainless steel open shelf.
Unit is mounted on 6.13" (15.6 cm) high adjustable stainless steel legs.
NOTE: Model F14GW hot food tables are designed to be operated with
water in the tank only. Use of the equipment without water in the tank
will result in damage to the equipment and will void the warranty.
Optional Accessories & Modifications
906A
Stainless steel end
505B
Stainless steel back
906E
Laminate end
505A
Laminate back
204C
Auto fill assy (mechanical float)
204D
Auto fill assy (electric probe)
1030A Cutting board (.5" x 10" composite)
220
LP gas
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
31.50" (80 cm) Deep Single-Tank Natural Gas Hot Food Tables
PROJECT
ITEM #
QUANTITY
APPROVAL

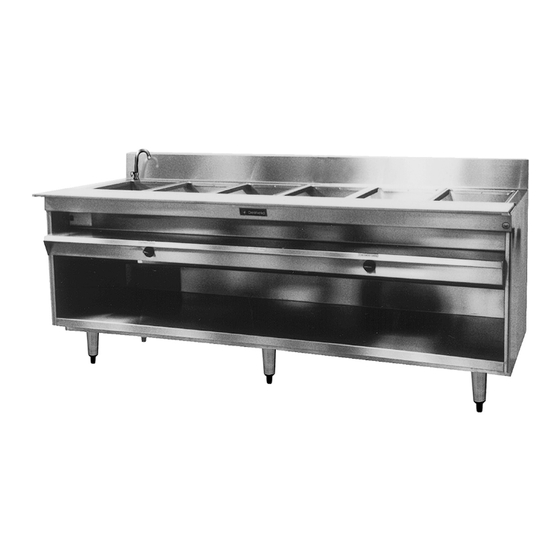

Model F14GW688
Shown with optional cutting board
DATE
F14GW
