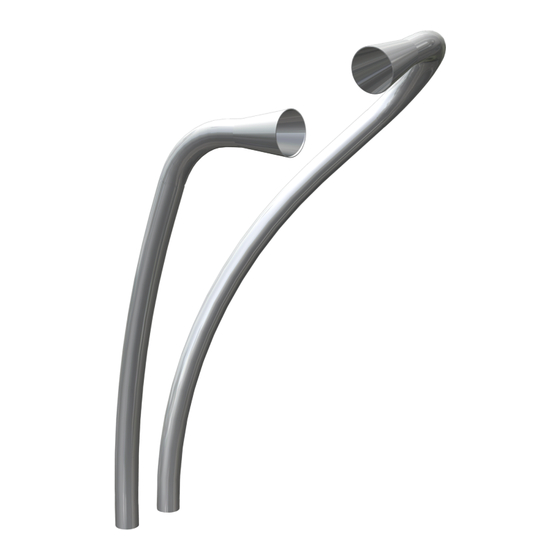

- Page 1 Speaking tube "Listening Ear" SOLE030.188...
- Page 2 1,38 m 1,19 m 0,00 m Benaming TOE SOL 030 188 SPREEKBUIS Title Tekening Opmerking LUISTEREND OOR Drawing Comment BOER Datum Afmetingen Dimensions 30-5-2005 Date SPEELTOESTELLEN...
- Page 3 0,85 m 0,50 m Ruimte voor buizen. Vorm en lengte afhankelijk van de locatie, maar maximaal 25m. Hoogteverschil mogelijk. Location for tubes. Shape and length depends on the locations. Maximum length 25m. Heigth difference possible. Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE SOL 030 188...
- Page 4 MIN. 0,13 m Grondmarkering Ground level marker 0,42 m 0,60 m Benaming TOE SOL 030 188 SPREEKBUIS Title Tekening Opmerking LUISTEREND OOR Drawing Comment BOER Datum Bodemplan Groundplan 30-5-2005 Date SPEELTOESTELLEN...
- Page 5 Supplied module: Geleverde module: See table Zie tabel Assembly sequence: Montagevolgorde: 1 - Dig the hole according to the ground plan 1 - Graaf het gat volgens het bodemplan 2 - Place 1 2 - Plaats 1 3 - Check that the equipment conforms to the dimensions shown on sheet 'dimensions' 3 - Controleer of het toestel voldoet aan de afmetingen zoals op blad 'afmetingen' 4 - Close the hole and compact the sand 4 - Dicht het gat en verdicht het zand...
- Page 6 Year of construction 2017 Certificate 0183402366 inspection authority Name manufacturer BOERplay Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 name installer Description of equipment Speaking tube "Listening Ear" Location of equipment...
-
Page 7: Maintenance
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear. - Page 8 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
- Page 9 Type Progr. Volgnr Bew. Rev. Benaming Opmerking 12 mm - RVS A2-70 Slangklem BUIS AZUR 50 MM SPREEKBUIS LUISTEREND OOR Benaming MOD BUI 050 088 Spreekbuis & Title Tekening Opmerking Luisterend Oor Drawing Comment BOER Datum Samenstelling module Assembly module 21-9-2011 Date SPEELTOESTELLEN...
