Summary of Contents for BOERPLAY Maxigoal

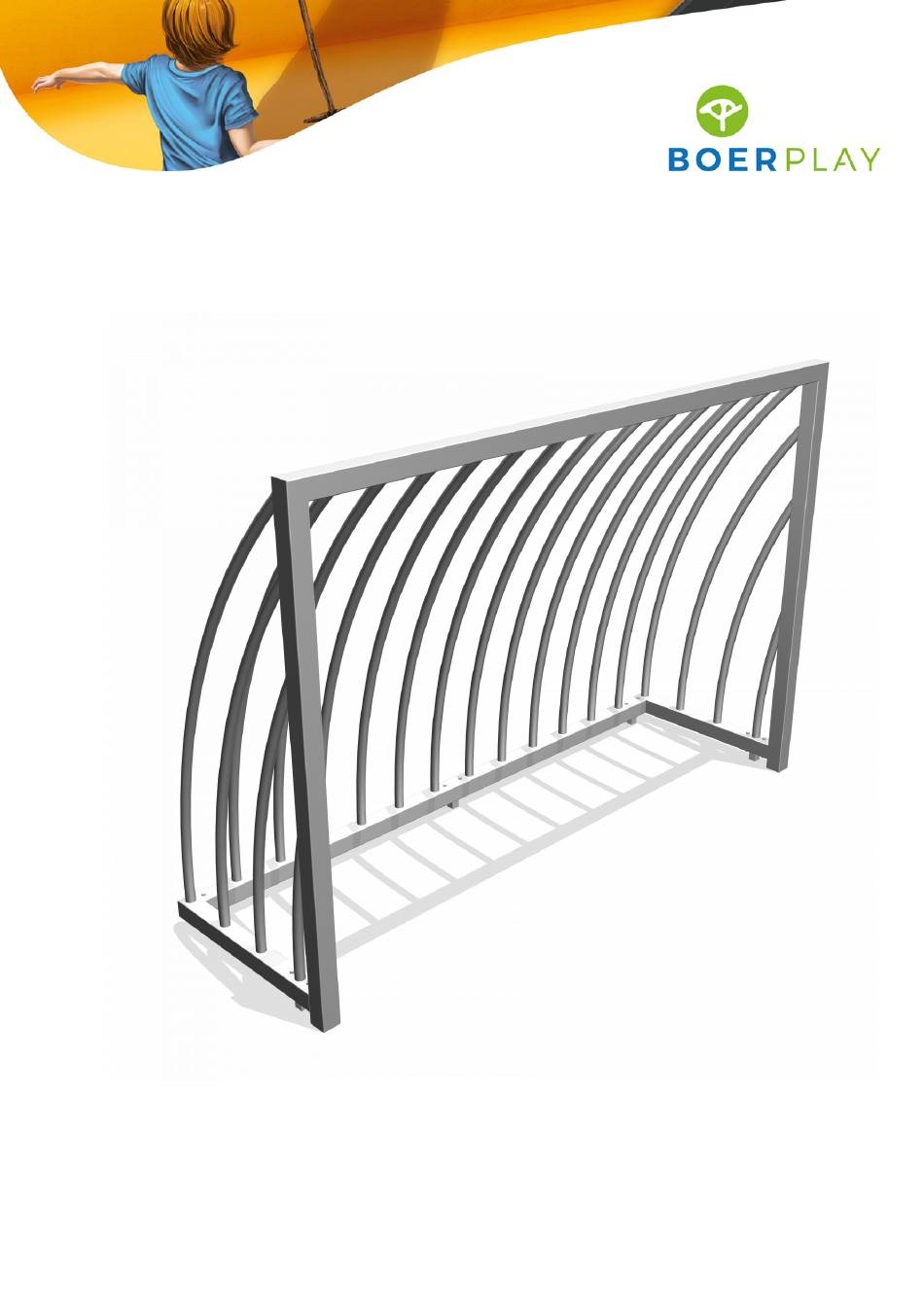

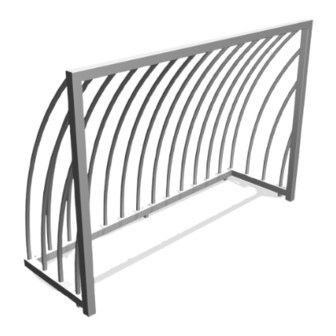

- Page 1 Maxigoal SOLE030.269...
- Page 2 3,00 m 2,05 m 0,13 m 0,00 m Benaming TOE SOL 030 269 Maxigoal Title Tekening Opmerking met grondankers Drawing Comment Datum Afmetingen Dimensions 6-10-2011 Date...
- Page 3 0,11 m 1,35 m 0,11 m 1,35 m 0,20 m Grondmarkering Ground level marker Benaming TOE SOL 030 269 Maxigoal Title Tekening Opmerking met grondankers Drawing Comment Datum Bodemplan Groundplan 6-10-2011 Date...
- Page 4 2 - Check the dimensions of the safety area with regard to the play equipment 2 - Controleer de afmetingen van de valbodem t.o.v. het toestel Type Progr. Bew. Rev. Benaming Volgnr Opmerking Maxigoal met grondankers Benaming TOE SOL 030 269 Maxigoal Title Tekening Opmerking met grondankers...
- Page 5 (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Sports equipment Product code SOLE030.269 Name of equipment Maxigoal verzinkt grondankers Maximum height of fall n.a. Year of construction 2017 Certificate...
-
Page 6: Maintenance
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear. - Page 7 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
- Page 8 Bew. Rev. Benaming Opmerking Borgdopmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 100 - VZ 8.8 SLUITRING M10 VZ Grondanker Goal Maxigoal Verzinkt Benaming MOD SOL 435 Maxigoal Title Tekening Opmerking met grondankers Drawing Comment Datum Samenstelling module Assembly module...
