Summary of Contents for Ubiquiti UAP-AC-IW

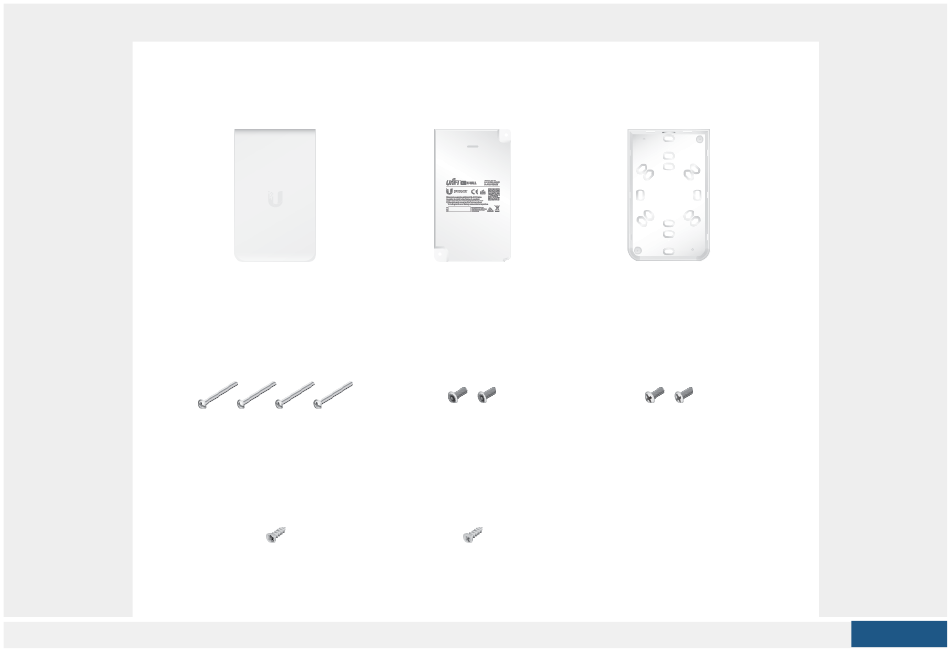

- Page 1 Package Contents Cover Plate UAP-AC-IW Back Plate Wall-Mount Screws (Qty. 4) Torx Screws (Qty. 2) Phillips Screws (Qty. 2) Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 2: Installation Requirements
Phillips and flathead screwdrivers T10 Torx bit (for Torx Screw option) UniFi Switch with PoE IMPORTANT: The UAP-AC-IW requires a UniFi Switch with PoE for power. Passive PoE adapters are not recommended. System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) -
Page 3: Back Panel
Back Panel PoE In + Data Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... -
Page 4: Bottom Panel
10/100/1000 Ethernet port supports data and 802.3at PoE+ input. The UAP-AC-IW itself requires 7W. 802.3at PoE+ input is required to use PoE passthrough. Connect this port to a UniFi Switch with PoE that is connected to your LAN and DHCP server. -
Page 5: Security Tab
Reset The Reset button serves two functions for the UAP-AC-IW: Restart Press and release the Reset button quickly. Restore to Factory Default Settings Press and hold the Reset button for more than five seconds. Data 10/100/1000 Ethernet port supports data only. Used to connect a client device to the LAN. - Page 6 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 7: Back Plate
Back Plate The Back Plate offers a variety of mounting holes for use with different wall boxes. Here are a few examples with the appropriate mounting holes outlined in blue: USA or China Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 8 Europe Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 9: Hardware Installation
Hardware Installation An electrical wall box should be pre-installed with an Ethernet cable running from the box to a UniFi Switch with PoE. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 10 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 11 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 12 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 13 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 14 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 15 Optional Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 16 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 17: Software Installation
Software Installation Download and install the latest version of the UniFi Controller software. Launch it and follow the on-screen instructions. The software and step-by-step instructions in the User Guide are available at: ui.com/download/unifi After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. -
Page 18: Mobile App Installation
Controller software, refer to the User Guide. Mobile App Installation Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or Google Play™ Store (Android). You can use it to provision a UniFi AP for basic functionality without configuring a UniFi Controller. -
Page 19: Specifications
Specifications UAP-AC-IW Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01") Weight 200 g (6.43 oz) Networking Interface (3) 10/100/1000 Ethernet Ports Button(s) Reset Power Method 802.3at PoE+ Supported Power Supply UniFi Switch (PoE) Power Save Supported PoE Out 48V Passthrough (Pins 1, 2+;... -
Page 20: Safety Notices
UAP-AC-IW Antennas (1) Dual-Band Antenna, Single-Polarity Antenna Gain 2.4 GHz 1 dBi 5 GHz 2 dBi Wi-Fi Standards 802.11 a/b/g/n/ac Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) Mounting 1-Gang Electrical Wall Box (Not Included) Operating Temperature -10 to 50° C (14 to 122° F) -
Page 21: Electrical Safety Information
1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. - Page 22 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
- Page 23 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Le présent émetteur radio a été approuvé par ISDE Canada. Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à...
- Page 24 Brazil Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List BFWA (Broadband Fixed Wireless Access) members noted in blue Note:...
-
Page 25: Weee Compliance Statement
Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
