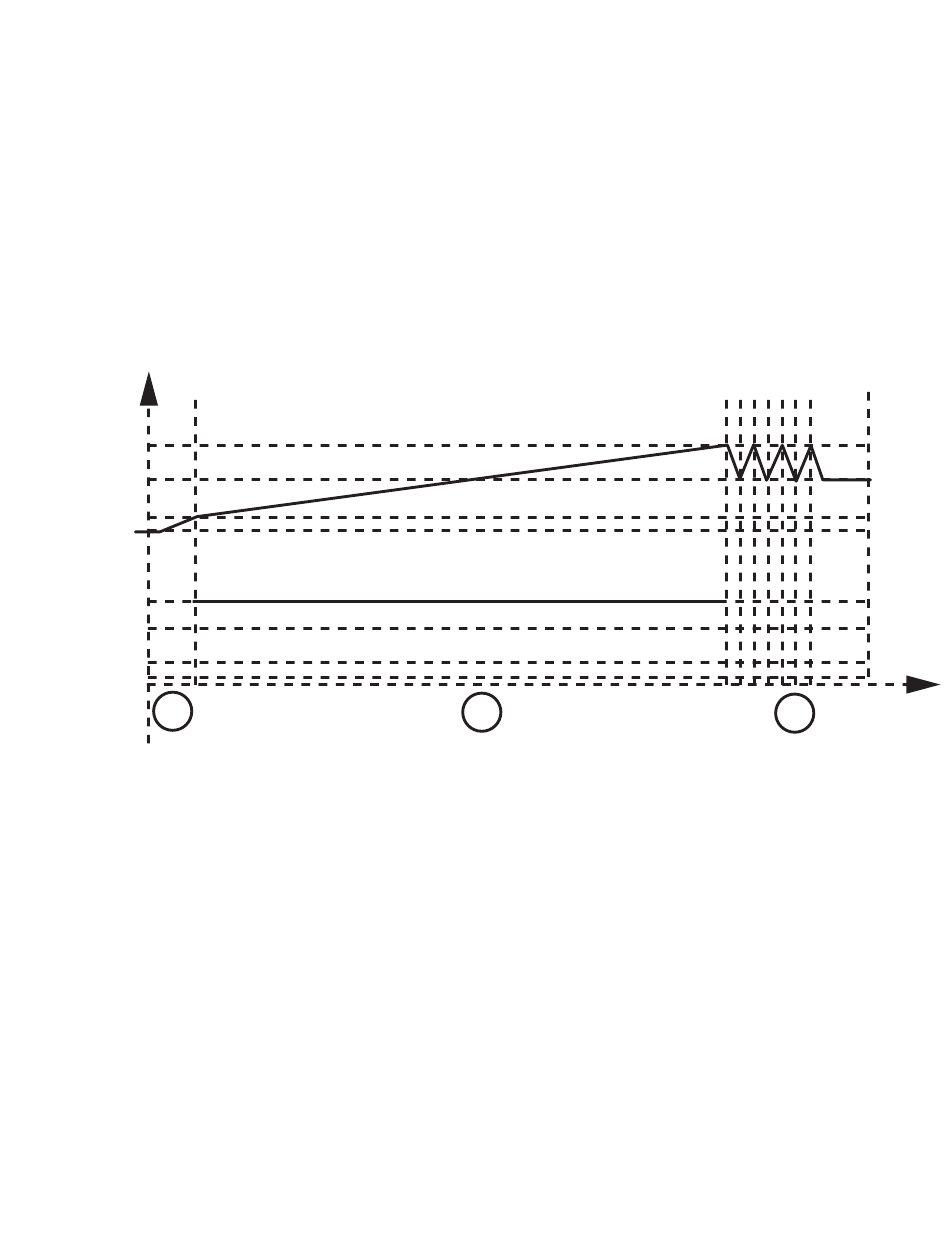

CHARGING STEPS
During the 6V battery type charging process, the charger performs the
following operations.
STEP 1 – IDENTIFY VOLTAGE Determines if the connected battery is 6V
or 12V
STEP 2 – CONSTANT CURRENT CHARGE Charges the battery with
constant current
STEP 3 – MAINTENANCE Analysis and maintaining process, the output
current is 0.5A for 1S, 1.5A for 1S, 0.5A for 1S, 1.5A for 1S . . . repeat.
Voltage
(V)
Current
(A)
1
2
3
WBC-200
USER'S MANUAL PAGE 16
