Smartech STC15 Instruction Manual

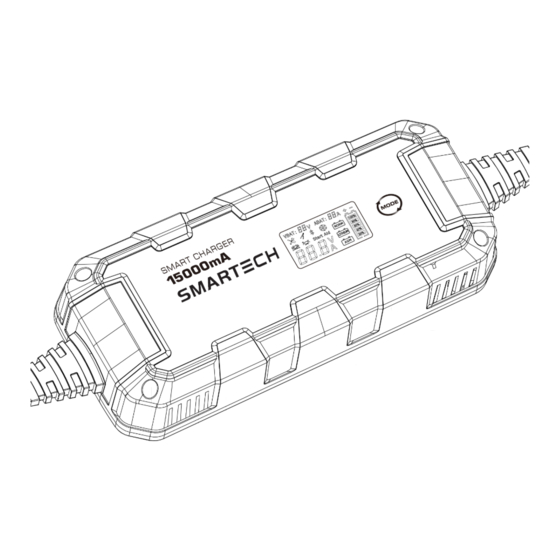

Smart battery charger
Hide thumbs

Advertisement

Table of Contents

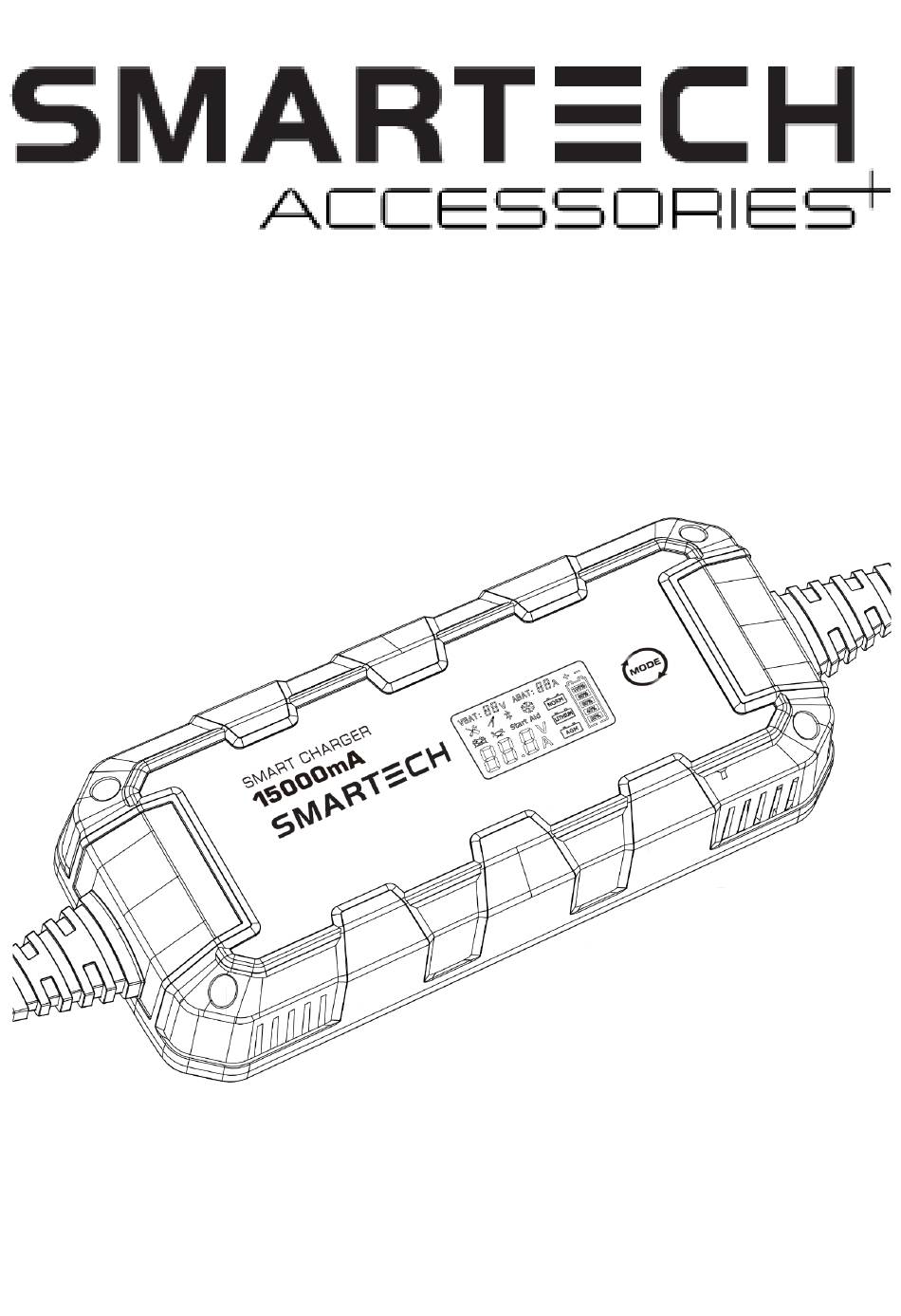

Issue 1, 01.01.23
SMART BATTERY CHARGER
MODELS: STC15
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC15 and is the answer not in the manual?

Questions and answers

Related Manuals for Smartech STC15

Summary of Contents for Smartech STC15

  • Page 1 Issue 1, 01.01.23 SMART BATTERY CHARGER MODELS: STC15...
  • Page 2 Issue 1, 01.01.23 INSTRUCTION MANUAL Important Safety Instructions Please read this manual thoroughly before use and store in a safe place for future reference. This manual contains important safety ting instructions. WARNING • Before using the charger, please read the instructions carefully. •...
  • Page 3 Issue 1, 01.01.23 CONTENTS 1. STC15 Smart charger 2. Clamp cable 3. User Manual...
  • Page 4 8-STAGE SMART CHARGING This is a fully automatic battery charger with 8 charge stages. All Smartech chargers are equipped with a sophisticated micro processing controller that ensures optimal charge is delivered to the battery whilst protecting the battery from being overcharged.
  • Page 5 Issue 1, 01.01.23 SWITCHMODE TECHNOLOGY Using the latest technology in battery chargers, switchmode chargers convert 240V AC power to 12V DC power using electronic components unlike traditional battery chargers that rely on heavy transformers. This allows the charger to be lightweight and compact without sacrificing on performance.

  • Page 6: Charge Modes

    Issue 1, 01.01.23 CHARGE MODES MODE EXPLANATION For charging Maintenance Free, Calcium or standard Lead Acid batteries. 6, 12 or 24 volt. For charging AGM/Dry Cell batteries. 6, 12 or 24 volt. For charging Lithium (LiFePO4) batteries. 6, 12 or 24 volt. Used for the winter mode to charge a cold battery.

  • Page 7: Charging Instructions

    Issue 1, 01.01.23 CHARGING INSTRUCTIONS STEP 1 – CHARGE PREPARATION AND SAFETY PRECAUTIONS Read this manual thoroughly, follow instructions and adhere to safety precautions. Ensure the charger is in a safe location away from the battery. Do not operate charger in a closed-in area or restrict ventilation in any way. Study the battery manufacturer's specific precautions, recommended rates of charge and determine the correct voltage of the battery.
  • Page 8 FAULTS & ERRORS The Smartech chargers sophisticated smart MCU will determine multiple issues with the charging process or the battery. If a fault is recognized the charger will display a series of blink sequences that help you identify the cause of the error and potential solutions.

  • Page 9: Technical Specifications

    Issue 1, 01.01.23 TECHNICAL SPECIFICATIONS Model: STC15 8 stage Automatic charger – Normal and AGM lead acid Charger Type: 6 stage Automatic charger – LiFePO4 220~240V AC 50Hz – 60Hz Input: Power: 250W max 6 Vdc, 4000mA / 8000mA / 15000mA...
  • Page 10 Issue 1, 01.01.23 Distributed By Super Start Batteries Pty L:td Head Office: Unit 30, 76 Hume Highway Lansvale, NSW 2166 Telephone: (02) 9755 7851 Facsimile: (02) 9755 7852 Website: www.superstart.com.au/...
