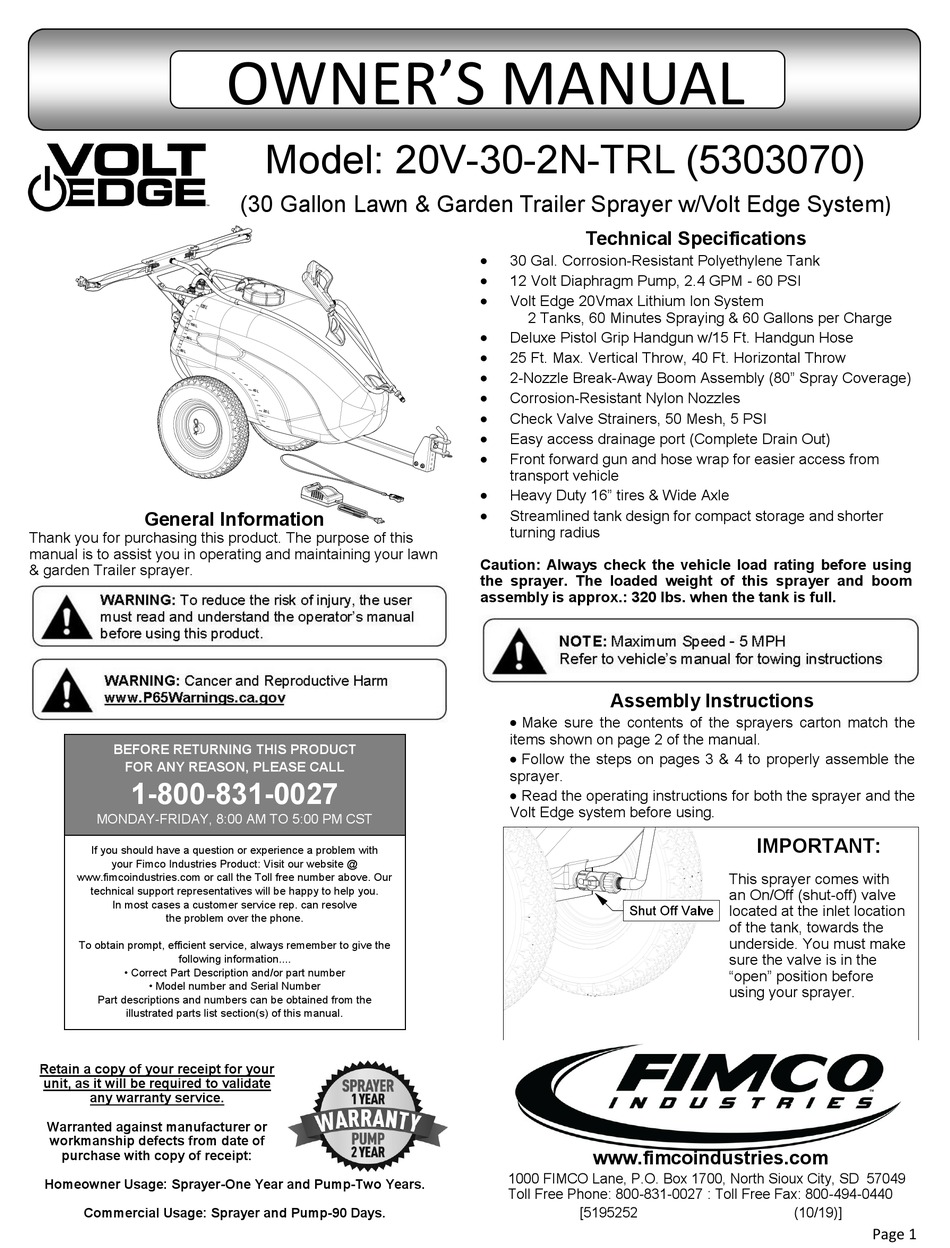

Fimco Volt Edge 20V-30-2N-TRL Owner's Manual

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: 20V-30-2N-TRL (5303070)
(30 Gallon Lawn & Garden Trailer Sprayer w/Volt Edge System)
Technical Specifications

30 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.4 GPM - 60 PSI

Volt Edge 20Vmax Lithium Ion System
2 Tanks, 60 Minutes Spraying & 60 Gallons per Charge

Deluxe Pistol Grip Handgun w/15 Ft. Handgun Hose

25 Ft. Max. Vertical Throw, 40 Ft. Horizontal Throw

2-Nozzle Break-Away Boom Assembly (80" Spray Coverage)

Corrosion-Resistant Nylon Nozzles

Check Valve Strainers, 50 Mesh, 5 PSI

Easy access drainage port (Complete Drain Out)

Front forward gun and hose wrap for easier access from
transport vehicle

Heavy Duty 16" tires & Wide Axle

Streamlined tank design for compact storage and shorter
turning radius
Caution: Always check the vehicle load rating before using
the sprayer. The loaded weight of this sprayer and boom
assembly is approx.: 320 lbs. when the tank is full.
Assembly Instructions

Make sure the contents of the sprayers carton match the
items shown on page 2 of the manual.

Follow the steps on pages 3 & 4 to properly assemble the
sprayer.

Read the operating instructions for both the sprayer and the
Volt Edge system before using.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195252
IMPORTANT:
This sprayer comes with
an On/Off (shut-off) valve
located at the inlet location
of the tank, towards the
underside. You must make
sure the valve is in the
"open" position before
using your sprayer.
(10/19)]
Page 1
